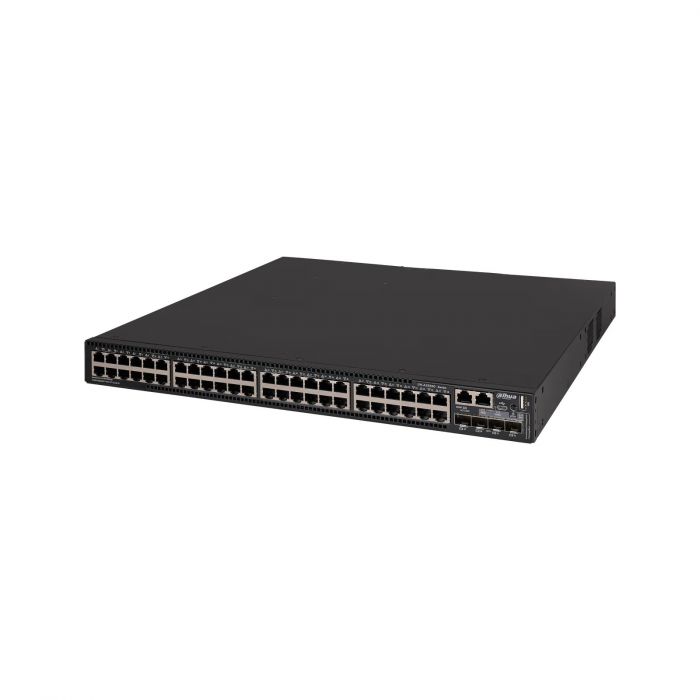

Dahua DH-AS5500-48GT4XF-600 - switch de 48 puertos poe gigabit/ administrable capa 3/ 600w totales/ & hi-poe/ 4 sfp 10gbps/ capacidad switching 176 gbps/
Precio especial $68,501.00 IVA incluido + Envio $150 MXN
Antes $79,461.00
Disponible 10 Pzas
Antes $79,461.00
Disponible 10 Pzas
sku: DH-AS5500-48GT4XF-600
pub
MX0000103561
| Hardware | |
| Included Power Adapter | No |
| PoE | Yes |
| Ethernet Port | 48 × RJ-45 10/100/1000 Mbps |
| Optical Port | 4 × SFP+ 1/10 Gbps |
| Ethernet Port Speed | 10/100/1000 Mbps |
| Optical Port Uplink Speed | 1/10 Gbps |
| Description of Function Slots | Port 1-48: 48 × RJ-45 10/100/1000 Mbps; Port 49-52: 4 × SFP+ 1/10 Gbps |
| Management port | 1 × Micro-USB port 1 × Console port 1 × MGT port 1 × USB port |
| Hot Plug | Yes |
| Power Supply | Built-in dual power supplies: 100–240 VAC, 50/60 Hz, 6 A |
| Operating Temperature | –5 °C to +45 °C (+23 °F to +113 °F) |
| Operating Humidity | 5%–95% (RH) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH) |
| Fanless Design | No |
| Power Consumption | Idling: 37 W Full load: 354 W (Single Power) Idling: 37 W Full load: 685 W (Dual Power) |
| Performance | |
| Layer | L3 |
| Management Type | Yes |
| MTBF | 50.24 years |
| Switching Capacity | Box switching capacity:336 Gbps Port switching capacity:176 Gbps |
| Packet Forwarding Rate | 130.952 Mpps |
| Packet Buffer Size | 24 Mbit |
| Jumbo Frame | 10K Byte |
| MAC Table Size | 16K |
| VLAN Number | 4K |
| VLAN Interface | 512 |
| IPv4 Routes | 1K |
| Dynamic ARP | 1K |
| Communication Standard | IEEE 802.3; IEEE 802.3u; IEEE 802.3X; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad; IEEE 802.3ae |
| PoE | |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at |
| PoE Power | Port 1-48 ≤ 30 W, total power ≤ 600 W |
| PoE Power Consumption Management | Power consumption management; power on and power off; power down for overload; green PoE |
| PoE Pin Assignment | 1, 2 (V+), 3, 6 (V-) |
| Features | |
| Ring Network Protocol | STP/RSTP/MSTP PVST RRPP ERPS |
| Routing | Static routing IPV6 policied routing RIPv1/v2/ng OSPFv2/v3 Policy based routing |
| VLAN Function | Port-based VLAN MAC-based VLAN Protocol-based VLAN Subnet-based VLAN QinQ, flexible QinQ VLAN Mapping Voice VLAN MVRP |
| Link Aggregation | Static link aggregation Dynamic link aggregation Cross-device link aggregation Gigabit Ethernet port aggregation 10 Gigabit Ethernet port aggregation |
| IEEE 802.3x Flow Control | Yes |
| Multicast | IGMP Snooping v1/v2/v3 PIM Snooping Multicast VLAN IGMP v1/v2/v3 |
| Reliability | IRF; VRRP; DLDP; LLDP; VCT |
| ARP | ARP source suppression Dynamic ARP source detection ARP anti-attack ARP detection ARP rate limit |
| DHCP Function | DHCP Client DHCP Snooping DHCP Relay DHCP Server DHCP Snooping option 82 DHCP Relay option 82 DHCP Snooping Trust DHCP Snooping entry backup |
| Security | Multi-level user management and password protection 802.1X RADIUS SSH 2.0 Port isolation HWTACACS IP/Port/MAC binding IP Source Guard HTTPS Triple |
| QoS/ACL | 802.1p/DSCP priority tag Packet filtering SP/WRR/SP+WRR queue scheduling Port-based rate limit Traffic-based redirection Time range |
| IPv6 | ICMPv6 Traceroute v6 Telnet v6 SSH2 v6 ND/ND snooping/ND proxy/ND detection SAVI IPv6 Portal DNS Client for IPv6 SNMP for IPv6 RIPNG and OSPFv3 IPv6 policy routing MLD Snooping v1/v2 VRRP V3 DHCPv6 snooping/DHCPv6 client/DHCPv6 relay/DHCPv6 server IPv6 port binding |
| Equipment Management | Load update files and update using Xmodem/FTP/TFTP Configure through CLI, Telnet, and Console port SNMPv1/v2/v3 Web network management RMON alarm, RMON event, and RMON history System logs, multi-level alarms, and debug information HGMPv2 NTP Ping and Tracert VCT DLDP Port loopback detection Power supply, fan, and temperature alarms BFD |
| General | |
| Statics Protection | Air discharge: 8 kV Contact discharge: 6 kV |
| Lighting Protection | Common mode: 1 kV Differential mode: 0.5 kV |
| Net Weight | ≤ 9.5 kg (20.93 lb) |
| Product Dimensions | 440 mm × 460 mm × 43.6 mm (17.32' × 18.11' × 1.72') (L × W × H) |
| Packaging Dimensions | 608 mm × 576 mm × 180 mm (23.94' × 22.68' × 7.09') (L × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; rack mount |
| Certifications | CE; FCC |
| Hardware | |
| Included Power Adapter | No |
| PoE | Yes |
| Ethernet Port | 48 × RJ-45 10/100/1000 Mbps |
| Optical Port | 4 × SFP+ 1/10 Gbps |
| Ethernet Port Speed | 10/100/1000 Mbps |
| Optical Port Uplink Speed | 1/10 Gbps |
| Description of Function Slots | Port 1-48: 48 × RJ-45 10/100/1000 Mbps; Port 49-52: 4 × SFP+ 1/10 Gbps |
| Management port | 1 × Micro-USB port 1 × Console port 1 × MGT port 1 × USB port |
| Hot Plug | Yes |
| Power Supply | Built-in dual power supplies: 100–240 VAC, 50/60 Hz, 6 A |
| Operating Temperature | –5 °C to +45 °C (+23 °F to +113 °F) |
| Operating Humidity | 5%–95% (RH) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH) |
| Fanless Design | No |
| Power Consumption | Idling: 37 W Full load: 354 W (Single Power) Idling: 37 W Full load: 685 W (Dual Power) |
| Performance | |
| Layer | L3 |
| Management Type | Yes |
| MTBF | 50.24 years |
| Switching Capacity | Box switching capacity:336 Gbps Port switching capacity:176 Gbps |
| Packet Forwarding Rate | 130.952 Mpps |
| Packet Buffer Size | 24 Mbit |
| Jumbo Frame | 10K Byte |
| MAC Table Size | 16K |
| VLAN Number | 4K |
| VLAN Interface | 512 |
| IPv4 Routes | 1K |
| Dynamic ARP | 1K |
| Communication Standard | IEEE 802.3; IEEE 802.3u; IEEE 802.3X; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad; IEEE 802.3ae |
| PoE | |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at |
| PoE Power | Port 1-48 ≤ 30 W, total power ≤ 600 W |
| PoE Power Consumption Management | Power consumption management; power on and power off; power down for overload; green PoE |
| PoE Pin Assignment | 1, 2 (V+), 3, 6 (V-) |
| Features | |
| Ring Network Protocol | STP/RSTP/MSTP PVST RRPP ERPS |
| Routing | Static routing IPV6 policied routing RIPv1/v2/ng OSPFv2/v3 Policy based routing |
| VLAN Function | Port-based VLAN MAC-based VLAN Protocol-based VLAN Subnet-based VLAN QinQ, flexible QinQ VLAN Mapping Voice VLAN MVRP |
| Link Aggregation | Static link aggregation Dynamic link aggregation Cross-device link aggregation Gigabit Ethernet port aggregation 10 Gigabit Ethernet port aggregation |
| IEEE 802.3x Flow Control | Yes |
| Multicast | IGMP Snooping v1/v2/v3 PIM Snooping Multicast VLAN IGMP v1/v2/v3 |
| Reliability | IRF; VRRP; DLDP; LLDP; VCT |
| ARP | ARP source suppression Dynamic ARP source detection ARP anti-attack ARP detection ARP rate limit |
| DHCP Function | DHCP Client DHCP Snooping DHCP Relay DHCP Server DHCP Snooping option 82 DHCP Relay option 82 DHCP Snooping Trust DHCP Snooping entry backup |
| Security | Multi-level user management and password protection 802.1X RADIUS SSH 2.0 Port isolation HWTACACS IP/Port/MAC binding IP Source Guard HTTPS Triple |
| QoS/ACL | 802.1p/DSCP priority tag Packet filtering SP/WRR/SP+WRR queue scheduling Port-based rate limit Traffic-based redirection Time range |
| IPv6 | ICMPv6 Traceroute v6 Telnet v6 SSH2 v6 ND/ND snooping/ND proxy/ND detection SAVI IPv6 Portal DNS Client for IPv6 SNMP for IPv6 RIPNG and OSPFv3 IPv6 policy routing MLD Snooping v1/v2 VRRP V3 DHCPv6 snooping/DHCPv6 client/DHCPv6 relay/DHCPv6 server IPv6 port binding |
| Equipment Management | Load update files and update using Xmodem/FTP/TFTP Configure through CLI, Telnet, and Console port SNMPv1/v2/v3 Web network management RMON alarm, RMON event, and RMON history System logs, multi-level alarms, and debug information HGMPv2 NTP Ping and Tracert VCT DLDP Port loopback detection Power supply, fan, and temperature alarms BFD |
| General | |
| Statics Protection | Air discharge: 8 kV Contact discharge: 6 kV |
| Lighting Protection | Common mode: 1 kV Differential mode: 0.5 kV |
| Net Weight | ≤ 9.5 kg (20.93 lb) |
| Product Dimensions | 440 mm × 460 mm × 43.6 mm (17.32' × 18.11' × 1.72') (L × W × H) |
| Packaging Dimensions | 608 mm × 576 mm × 180 mm (23.94' × 22.68' × 7.09') (L × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; rack mount |
| Certifications | CE; FCC |
| Marca | Dahua |
|---|---|
| MPN: | DH-AS5500-48GT4XF-600 |
