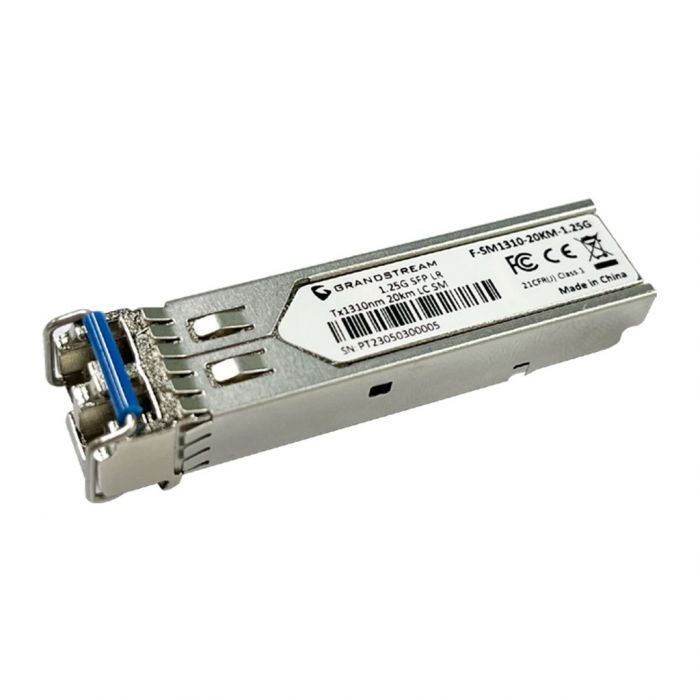

Grandstream F-SM1310-20KM-1.25G networks network transceiver module fiber optic 1250 mbit/s sfp 1310 nm
Precio especial $366.00 IVA incluido + Envio $150 MXN
Antes $425.00
Disponible 86 Pzas
Antes $425.00
Disponible 86 Pzas
sku: F-SM1310-20KM-1.25G
pub
MX0000103528
F-SM1310-20KM-1.25G
Fiber Modules
SFP/SFP+ Modules
Grandstream Network offers a wide variety of fiber modules. All of them are hot-pluggable small-form factor transceiver modules integrated with the high sensitivity PIN receiver and signal conditioner for 1.25/10 Gigabit Ethernet applications. SFP modules support very low EMI and excellent ESD protection. Featuring low power consumption, these fiber modules are ideal for enterprise LAN networks and other optical links.
SFP/SFP+ Modules
Grandstream Network offers a wide variety of fiber modules. All of them are hot-pluggable small-form factor transceiver modules integrated with the high sensitivity PIN receiver and signal conditioner for 1.25/10 Gigabit Ethernet applications. SFP modules support very low EMI and excellent ESD protection. Featuring low power consumption, these fiber modules are ideal for enterprise LAN networks and other optical links.
Technical Information
Network | |
---|---|
SFP transceiver type | Fiber optic |
Interface type | SFP |
Maximum data transfer rate | 1250 Mbit/s |
Fiber optic connector | LC |
Networking standards | IEEE 802.3z |
Ethernet interface type | 1.25 Gigabit Ethernet |
Performance | |
Product colour | Silver |
SFP transceiver type | Fiber optic |
Ethernet LAN | Yes |
Digital Diagnostics Monitoring (DDM) | Yes |
Interface type | SFP |
Maximum data transfer rate | 1250 Mbit/s |
Fiber optic connector | LC |
Networking standards | IEEE 802.3z |
Maximum transfer distance | 787401.6' (20000 m) |
Wavelength | 1310 nm |
Tx power (min) | -9 dBmW |
Tx power (max) | -3 dBmW |
Rx power (min) | -18 dBmW |
Rx power (max) | -1 dBmW |
Single-mode fiber (SMF) supported | Yes |
Ethernet interface type | 1.25 Gigabit Ethernet |
Features | |
Product colour | Silver |
Form factor | SFP |
Power | |
Input voltage | 3.3 V |
Power consumption (typical) | 1 W |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | -40 - 85 °C |
Operating relative humidity (H-H) | 5 - 85% |
Maximum operating temperature | 70 °C |
Technical details | |
Ethernet LAN | Yes |
Compliance certificates | RoHS |
Weight & dimensions | |
Weight | 0.603 oz (17.1 g) |
Marca | Otros |
---|---|
MPN: | F-SM1310-20KM-1.25G |
