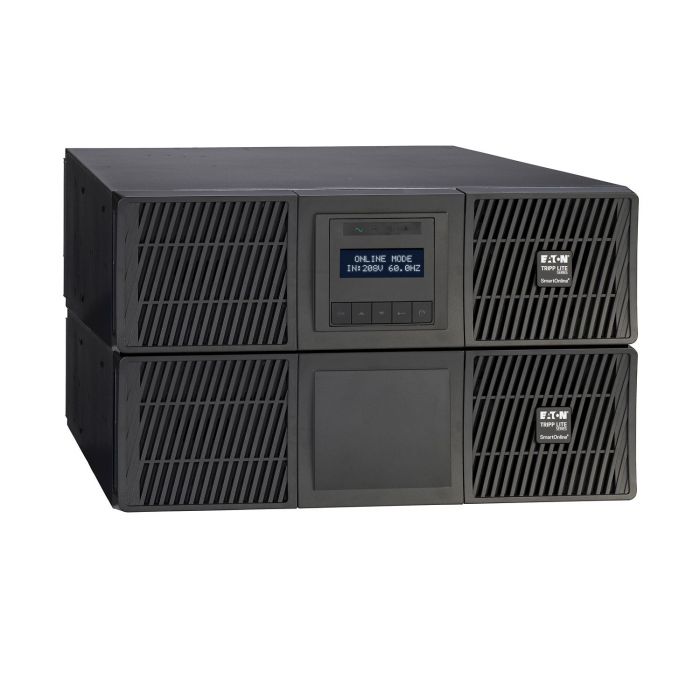

Tripp-Lite SU5000RTFMB tripp lite series smartonline 5000va 4500w 120/208v online double-conversion ups - l6-30p, 18x 5-20r, 2 l6-20r, 1 l6-30r outlets, network card, maintenance bypass, extended run, 6u rack/tower
Precio especial $111,124.00 IVA incluido + Envio $150 MXN
Antes $128,904.00
Disponible 1 Pzas
Antes $128,904.00
Disponible 1 Pzas
sku: SU5000RTFMB
pub
MX0000103477
SU5000RTFMB
Eaton 9PX EBM, 3U, used with 9PX6K, 9PX5K, 9PX6KG, 9PX3K3UN
General specifications |
|
| Product Name | Tripp Lite by Eaton SmartOnline UPS |
| Catalog Number | SU5000RTFMB |
| UPC | 037332286369 |
| Product Length/Depth | 34 in |
| Product Height | 10.2 in |
| Product Width | 17.3 in |
| Product Weight | 206.1 lb |
| Compliances | FCC Class A CE Marked FCC Compliant RoHS ENERGY STAR certified REACH |
| Certifications | IEC/EN 62040-2 NOM CSA 22.2 cTUVus UL 1778 |
Especificaciones del producto |
|
| Topology | On-Line |
| Form factor | Rackmount/Tower |
| Rack size | 6U |
| Color | Black |
| VA rating | 5000 VA |
| Wattage | 4500 W |
| Rack mounting kit | Yes |
| Package contents |
|
| Surge protection | Yes |
| Internal bypass | Yes |
| Input connection | L6-30P |
| Input cord length | 10 ft |
| Input nominal voltage | 200 VAC/208 VAC/220 VAC/230 VAC/240 VAC |
| Nominal frequency | 50/60 Hz |
| Input frequency range | 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz |
| Input power factor | >0.99 typical |
| Receptacle |
|
| Number of Outputs 5-20R | 18 |
| Number of Outputs L6-20R | 2 |
| Number of Outputs L6-30R | 1 |
| Number of outputs hardwired | 1 |
| Output waveform | True sine wave |
| Voltage | 120/208V |
| Output nominal voltage | 120/208V default (120/240, 100/200, 110/220, 115/230, 127/220V) |
| Electric current - max | 23.3A |
| Battery replacement | EBP-1803 |
| Battery type | Sealed, lead-acid |
| Extended battery capability | Add up to 4 extended battery modules (EBM). Part number BP180RT |
| Standard factory warranty |
|
| Extended service plans |
|
| Ethernet interface | Yes |
| Includes network card | Yes |
| Software compatibility | PowerAlert |
| Altitude | <1000m for nominal power, 10% power degrading every 1000m (up to 3000m) |
| Noise level | <45 dB at 1 meter |
| Relative humidity | 0-95% non-condensing |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Input Plug Type | NEMA L6-30P |
| Product Features | Expandable Runtime Emergency Power Off (EPO)/Remote On-Off (ROO) L6-30P 10ft. |
| Product Highlights | Keeps equipment running during outages to allow time for file saves and safe shutdown Included WEBCARDLXE network card enables full remote access and control Interactive LCD interface keeps you updated on critical load information in real time Optional extended battery modules allow extended runtime to keep equipment powered |
| PowerAlert Software | For local monitoring via the UPS’s built-in communication ports, download PowerAlert software at https://tripplite.eaton.com/products/power-alert |
| Front Panel LCD Display | LCD graphical display |
| Efficiency | 93% |
| Input voltage range | 200-240V |
| Max number of battery packs | 4 |
| Output frequency | 50/60 Hz |
| Output power factor | 0.9 |
| Runtime at full load | 3 min |
| Communication interface | Contact closure Included network card RS-232 USB USB and DB9 serial cables included |
| Battery Access | Battery access door |
| Typical Battery Runtime | Expandable Runtime |
| Dc Voltage | 180 |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Communications Cable | USB and DB9 serial cables included |
| Input Circuit Breakers | 20A |
| Installation Form Factor Notes | Listed 34' depth includes maintenance bypass installed on the back of the UPS power module. Alternate maintenance bypass installation options are available for short rack depth needs. Relocating the maintenance bypass decreases the unit depth to 27.03'. |
| Output Circuit Breakers | 20A breaker protects L6-20R and 5-20R outlets |
| Application | Mission Critical Applications |
| Switch configuration | RPO / ROO / MBP |
| Housing material | Metal |
| Operating Elevation | <1,000 meters for nominal power; 10% power derating every 1000 meters (up to 3000 meters) at 40°C |
| AC Suppression Response Time | 0 ms |
| Alarm Interface | Press ESC to silence the alarm |
| Audible Alarms | Audible alarm indicates utility failure, low-battery, overload, other UPS/Battery fault or remote shutdown conditions |
| Battery Start Capability | Cold-start operation supported |
| Cooling Method | Fan |
| Battery Replacement Description | Hot-swappable, user replaceable batteries. UPS requires 1 Replacement Battery Cartridge. |
| LED Indicators | 4 status-indicating LEDs |
| Frequency Rating Details | 50 or 60Hz, autosensing or configurable as a frequency converter |
| Recommended Electrical Service | 30A |
| Included Mounting Accessory Description | Includes 4 post rackmount and tower pedestal accessories |
| Input Nominal Voltage Description | Factory configured to 208V |
| Network Monitoring Port Description | WEBCARDLXE Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure communications; not compatible with WEBCARDLX |
| Nominal Voltage Details | 100V, 110V, 120V, 200V, 208V, 220V, 230V, 240V |
| Voltage Regulation Description | Online, double-conversion power conditioning |
| Plug Type | L6-30P 10ft. |
| Minimum Required Rack Depth (inches) | 78.74 |
| Total Harmonic Distortion | < 2% THDV on linear load; < 5% THDV on non-linear load |
| High Availability UPS Features | Automatic voltage regulation (AVR) Expandable battery backup Hot swappable batteries On-Line/Double-Conversion Pure sine wave output Remote management Surge/noise protection Zero transfer time |
