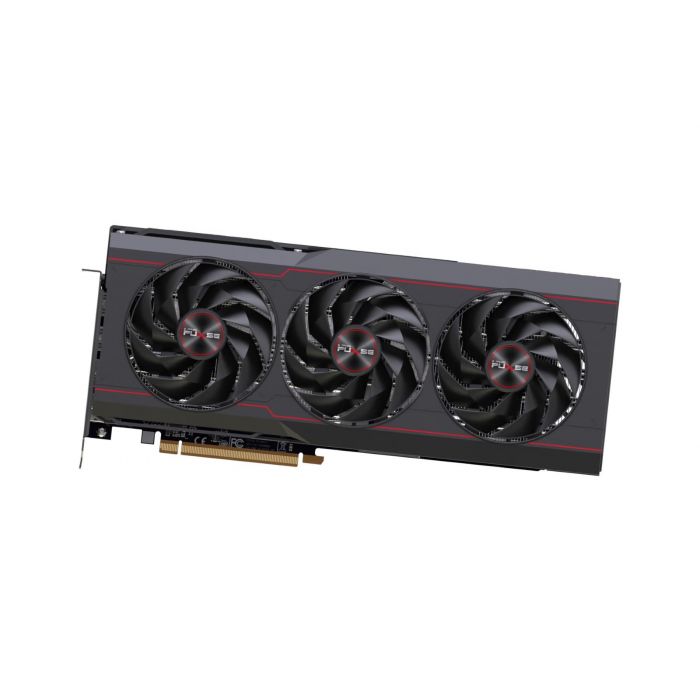

Sapphire 11322-02-20G tarjeta video saphire radeon rx7900 xtx gaming 24gb ddr6 2xhdmi2xdp
Precio especial $25,117.00 IVA incluido + Envio $150 MXN
Antes $29,136.00
Disponible 0 Pzas
Antes $29,136.00
Disponible 0 Pzas
Agotado
pub
MX0000103459
11322-02-20G
Digital Power Design
SAPPHIRE NITRO+ & PULSE AMD Radeon™ RX 7900 Series are designed with digital power which provides accurate power control and excellent power efficiency
Ultra High Performance Conductive Polymer Aluminum Capacitor
The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 20-phase power possible on the RX 7900 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.
High TG Copper PCB
The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.
Angular Velocity Fan Blade
The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Graphics Card Supporter
Bundled with a graphics card supporter to keep the graphics card in place on the PCIe Slot.
Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.
SAPPHIRE NITRO+ & PULSE AMD Radeon™ RX 7900 Series are designed with digital power which provides accurate power control and excellent power efficiency
Ultra High Performance Conductive Polymer Aluminum Capacitor
The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 20-phase power possible on the RX 7900 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.
High TG Copper PCB
The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.
Angular Velocity Fan Blade
The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Graphics Card Supporter
Bundled with a graphics card supporter to keep the graphics card in place on the PCIe Slot.
Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.
Technical Information
| Processor | |
|---|---|
| Graphics processor family | AMD |
| Processor boost clock speed | 2525 MHz |
| Stream processors | 6144 |
| Maximum displays per videocard | 4 |
| CUDA | No |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Radeon RX 7900 XTX |
| Ray accelerators | 96 |
| Lithography | 5 nm |
| Infinity cache | 96 MB |
| Memory | |
| Discrete graphics card memory | 24 GB |
| Data transfer rate | 20 Gbit/s |
| Memory bus | 384 bit |
| Graphics card memory type | GDDR6 |
| Ports & interfaces | |
| HDMI ports quantity | 2 |
| DisplayPort version | 2.1 |
| DisplayPorts quantity | 2 |
| Interface type | PCI Express x16 4.0 |
| Video | |
| DirectX version | 12 Ultimate |
| Dual Link DVI | No |
| Performance | |
| AMD FreeSync | Yes |
| DirectX version | 12 Ultimate |
| Dual Link DVI | No |
| TV tuner integrated | No |
| Design | |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Black |
| Number of slots | 2.7 |
| Bracket height | Full-Height (FH) |
| Cooling technology | Sapphire Tri-X |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Linux operating systems supported | Yes |
| Power | |
| Supplementary power connectors | 3x 8-pin |
| Minimum system power supply | 800 W |
| Power consumption (max) | 370 W |
| Weight & dimensions | |
| Number of slots | 2.7 |
| Height | 5.27' (133.8 mm) |
| Depth | 2.07' (52.7 mm) |
| Technical details | |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Black |
| TV tuner integrated | No |
| System requirements | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Linux operating systems supported | Yes |
| Minimum system power supply | 800 W |
| Minimum RAM | 8192 MB |
| Packaging data | |
| Package type | Box |
| Marca | Sapphire |
|---|---|
| MPN: | 11322-02-20G |
