Belden R301603 000S1 - ind rugg rj45 t568a awg24-26 ip20 cat6a utp/stp field kit

Precio especial $1,468.00 IVA incluido + Envio $150 MXN
Antes $1,703.00
Disponible 10 Pzas
sku: R301603 000S1
pub
MX0000103449
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo
Logo

R301603

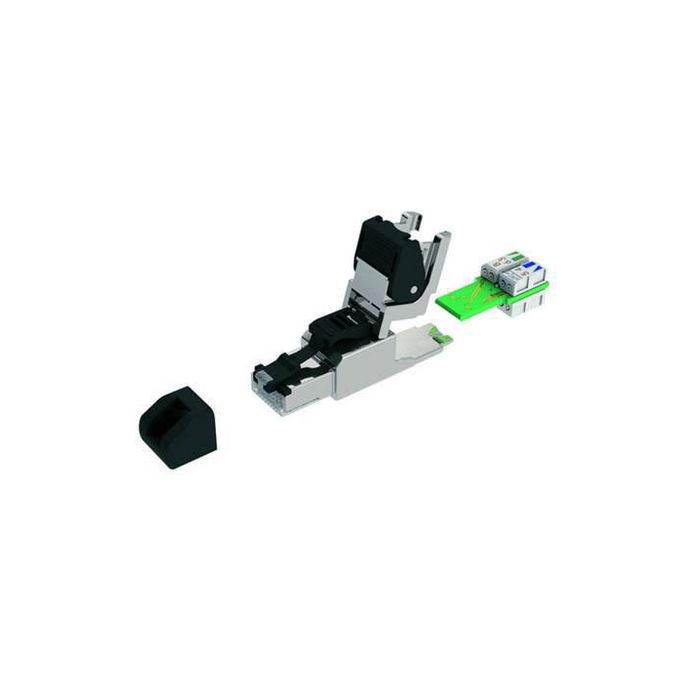

DATATUFF ® INDUSTRIAL ETHERNET RUGGEDIZED RJ45 T568A PLUG CAT6A UTP/STP (FIELD KIT) SUITABLE FOR USE IN IP20 INSTALLATIONbr

Product Overview


Suitable Applications: noisy environment, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Physical Characteristics (Overall)


Height: 0.62
Width: 0.54
Depth: 2.06
Wiring Scheme: T568A
Packaging: Individually packaged in a plastic bag.
Weight: 0.060 lbs

Connectors


Materials

Description Material Type
Front Connection Copper Clad PCB, Gold plated contacts RJ45
Rear Connection Zinc diecast - Nickel plated Ind DataTuff
Connector Body Nickel plated zinc alloy diecast

Electrical Characteristics


Dielectric Strength: 1,000V RMS @ 60 Hz for 1 minute (Signals to Ground)
Current Rating: 1.500 A
Insulation Resistance: 500 M-Ohm Minimum
Max Contact Resistance: 20 mOhm
Termination Resistance: 2.5 m-Ohm

Temperature Range


Installation Temperature Range: -40°C To +85°C
Storage Temperature Range: -40°C To +85°C
Operating Temperature Range: -40°C To +85°C

Mechanical Characteristics


Footprint/Type: Modular
Plug /Jack Compatibility: RJ45
Termination Front Connection: Mated Connection
Termination Front Connection Durability: 750 cycles
Termination Rear Connection: Mated Connection
Termination Rear Connection Durability: 750 cycles
Connector/Hardware Retention: 20 lbs
Plug/Connector Retention: 11.250 lbs

Standards


UL Rating: UL94V-0
TIA/EIA Compliance: Category 6A - TIA 568.2-D, Category 6A - ISO/IEC 11801:2002 Ed.2
IEEE Compliance: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
Other Standards: IEC 60603-7, FCC Part 68-F

Applicable Environmental and Other Programs


Environmental Space: Indoor
EU Directive 2002/95/EC (RoHS): Yes
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing


UL Flammability: UL2043 Air Handling Spaces
Safety Listing: c(UL)us Listed

Related Part Numbers


Related Parts: DataTuff Cables, Connectors and Accessories

Product Notes


Notes: Please see Installation Guide PX105479. Suitable for use with cables 300V RMS and 600V AWM. Outer Jacket Diameter range: 0.197 to 0.354 in. Insulation Diameter range: 0.033 to 0.042 in.

History


Más información
MarcaBelden
MPN:R301603 000S1
