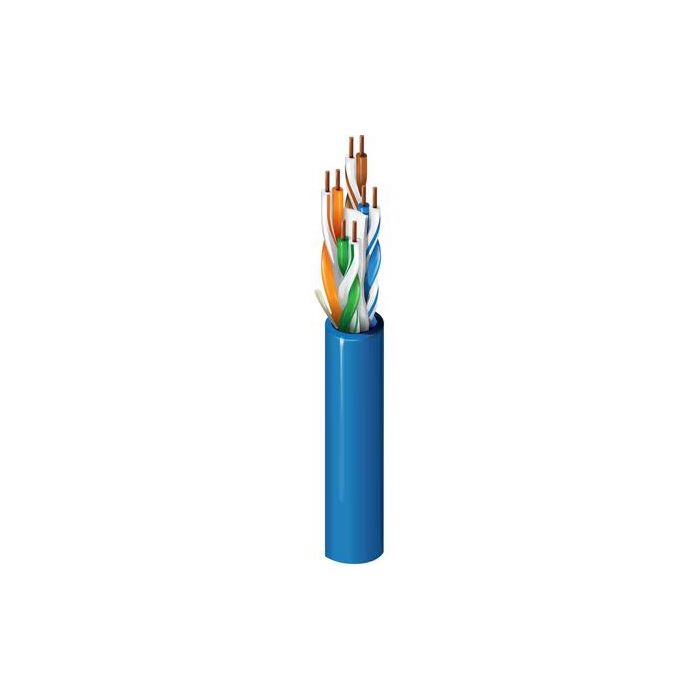

Belden 2424 0061000 cable - category 6+ enhanced cable, 4 pair, u/utp, lszh 23awg 0 halogeno azul
Precio especial $6,536.00 IVA incluido + Envio $150 MXN
Antes $7,582.00
Disponible 1 Pzas
Antes $7,582.00
Disponible 1 Pzas
sku: 2424 0061000
pub
MX0000103447
2424
Category 6+ Enhanced Premise Horizontal Cable (350MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Haloarrest® LSZH Jacketbr
Product Overview
| Suitable Applications: | Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE |
Construction Details
Conductor
| Size | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 23 | Solid | BC - Bare Copper | 4 |
Insulation
| Material | Color Code |
|---|---|
| PO - Polyolefin | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
Outer Jacket
| Separator | Material | Material Trade Name | Nom. Diameter | Ripcord |
|---|---|---|---|---|
| Dielectric Tape (Patented) | LSZH - Low Smoke Zero Halogen (Flame Retardant) | Haloarrest® | 0.221 in (5.61 mm) | Yes |
| Overall Cable Diameter (Nominal): | 0.221 in (5.61 mm) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | Max. Capacitance Unbalance |
|---|---|
| 78 Ohm/km | 160 pF/100m |
Delay
| Frequency | Max. Delay | Max. Delay Skew | Nom. Velocity of Prop. |
|---|---|---|---|
| 100 MHz | 537.6 ns/100m | 35 ns/100m | 70% |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) | Max./Min. Fitted Impedance |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 2.0 dB/100m | 79.3 | 77.3 | 77.3 | 75.3 | 70.8 | 67.8 | 20.0 | 100 ± 15 | 102 ± 15 |
| 4 | 3.7 dB/100m | 70.3 | 68.3 | 66.5 | 64.5 | 58.8 | 55.8 | 23.6 | 100 ± 15 | 100 ± 15 |
| 8 | 5.3 dB/100m | 65.8 | 63.8 | 60.5 | 58.5 | 52.7 | 49.7 | 25.3 | 100 ± 15 | 100 ± 15 |
| 10 | 5.9 dB/100m | 64.3 | 62.3 | 58.4 | 56.4 | 50.8 | 47.8 | 26.0 | 100 ± 15 | 100 ± 15 |
| 16 | 7.4 dB/100m | 61.2 | 59.2 | 53.8 | 51.8 | 46.7 | 43.7 | 26.0 | 100 ± 15 | 100 ± 15 |
| 20 | 8.3 dB/100m | 59.8 | 57.8 | 51.4 | 49.4 | 44.8 | 41.8 | 26.0 | 100 ± 15 | 100 ± 15 |
| 25 | 9.4 dB/100m | 58.3 | 56.3 | 49.0 | 47.0 | 42.8 | 39.8 | 25.5 | 100 ± 15 | 100 ± 15 |
| 31.25 | 10.5 dB/100m | 56.9 | 54.9 | 46.4 | 44.4 | 40.9 | 37.9 | 25.0 | 100 ± 15 | 100 ± 15 |
| 62.5 | 15.1 dB/100m | 52.4 | 50.4 | 37.3 | 35.3 | 34.9 | 31.9 | 23.5 | 100 ± 15 | 100 ± 15 |
| 100 | 19.3 dB/100m | 49.3 | 47.3 | 30.0 | 28.0 | 30.8 | 27.8 | 22.5 | 100 ± 15 | 100 ± 15 |
| 155 | 24.5 dB/100m | 46.4 | 44.4 | 21.9 | 19.9 | 27.0 | 24.0 | 21.6 | 100 ± 22 | 100 ± 15 |
| 200 | 28.2 dB/100m | 44.8 | 42.8 | 16.6 | 14.6 | 24.8 | 21.8 | 21.0 | 100 ± 22 | 100 ± 15 |
| 250 | 31.8 dB/100m | 43.3 | 41.3 | 11.5 | 9.5 | 22.8 | 19.8 | 20.5 | 100 ± 32 | 100 ± 15 |
| 300 | 35.2 dB/100m | 42.1 | 40.1 | 6.9 | 4.9 | 21.3 | 18.3 | 20.1 | 100 ± 32 | 100 ± 15 |
| 350 | 38.4 dB/100m | 41.1 | 39.1 | 2.7 | 0.7 | 19.9 | 16.9 | 19.8 | 100 ± 32 | 100 ± 15 |
| 400 | 41.5 dB/100m | 40.3 | 38.3 | 18.8 | 15.8 | 19.5 | 100 ± 32 | 100 ± 15 | ||
| 450 | 44.3 dB/100m | 39.5 | 37.5 | 17.7 | 14.7 | 19.2 | 100 ± 32 | 100 ± 15 | ||
| 500 | 47.1 dB/100m | 38.8 | 36.8 | 16.8 | 13.8 | 19.0 | 100 ± 32 | 100 ± 15 | ||
| 550 | 49.7 dB/100m | 38.2 | 36.2 | 16.0 | 13.0 | 18.8 | 100 ± 32 | 100 ± 15 |
Voltage
| Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| Operating | Installation | Storage |
|---|---|---|
| -20°C To +75°C | +5°C To +50°C | -20°C To +75°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 1.0 in (25 mm) | 2.25 in |
| Max. Pull Tension: | 25 lbs (11 kg) |
| Bulk Cable Weight: | 23 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: | Indoor - Euroclass Eca, Indoor, Non-Halogenated |
| Sustainability: | Product Lens™, Environmental Product Declaration (EPD) Available |
| Flammability / Reaction to Fire: | IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca |
| IEEE Compliance: | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| Data Category: | Category 6 |
| TIA/EIA Compliance: | ANSI/TIA-568.2-D Category 6 |
| Third Party Performance Verification: | Category 6 |
| ISO/IEC Compliance: | 11801 ed 2.2 (2011) Class E |
| CENELEC Compliance: | Segregation class according EN50174-2 = a |
| European Directive Compliance: | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2017-07-10 |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Plenum Number: | 2413 |
Product Notes
| Notes: | Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 350 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. |
History
| Update and Revision: | Revision Number: 0.516 Revision Date: 04-29-2024 |
Part Numbers
Variants
| Item # | Color | Putup Type | Length | UPC/EAN |
|---|---|---|---|---|
| 2424.06305 | Blue | Reel | 305 m | 8719605005038 |
| 2424 0061000 | Blue | Reel | 1,000 ft | 612825061557 |
| 2424.08305 | Gray | Reel | 305 m | 8719605005069 |
| 2424.07305 | Purple | Reel | 305 m | 8719605005052 |
| 2424 0071000 | Purple | Reel | 1,000 ft | 612825061540 |
| 2424.071000 | Purple | Reel | 1,000 m | 8719605005045 |
| 2424.02500 | Red | Reel | 500 m | 8719605005021 |
| 2424 0091000 | White | Reel | 1,000 ft | 612825061564 |
| Marca | Belden |
|---|---|
| MPN: | 2424 0061000 |
