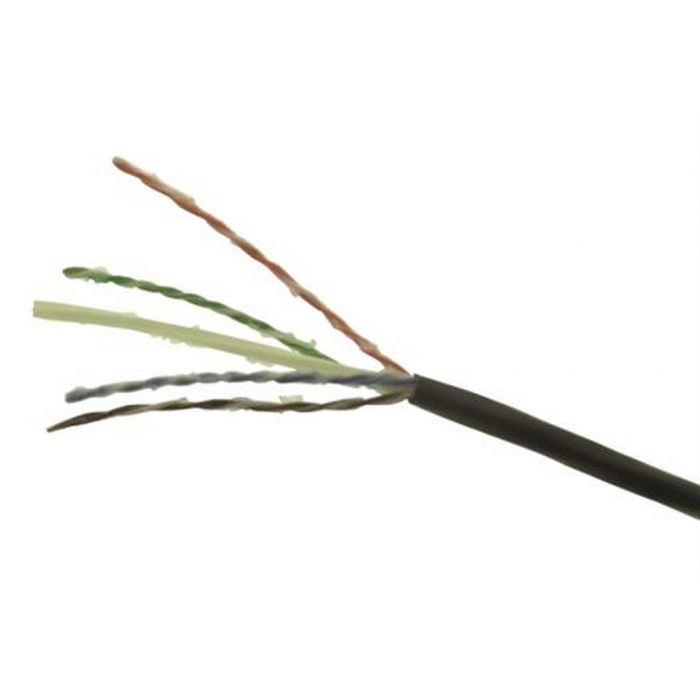

Commscope 760178129 | 1592a blk c6a 4/23 f/utp r1000 category 6a filled cable, outdoor, black jacket, aluminum tape shield, inner 4 pair count, 1000 ft (305 m) length, reel
Precio especial $22,733.00 IVA incluido + Envio $150 MXN
Antes $26,370.00
Disponible 2000 Pzas
Antes $26,370.00
Disponible 2000 Pzas
sku: 760178129
pub
MX0000103276
760178129 | 1592A BLK C6A 4/23 F/UTP R1000
- Portfolio: SYSTIMAX®
- Product Type: Twisted pair cable
- Environmental Space: Buried
- Cable Type: F/UTP (shielded)
- Jacket Color: Black
- Product Number: 1592A
- Packaging Type: Reel
- Pairs, quantity: 4
- Jacket Material: PE
- Cable Length: 304.8 m | 1000 ft
760178129
Product Classification
Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
Portfolio | SYSTIMAX® |
Product Type | Twisted pair cable |
General Specifications
Product Number | 1592A |
ANSI/TIA Category | 6A |
Cable Component Type | Horizontal |
Cable Type | F/UTP (shielded) |
Conductor Type, singles | Solid |
Conductors, quantity | 8 |
Jacket Color | Black |
Note | Delay has been derated by 6% due to the water proofing agents | The maximum permanent link length is reduced from 295 feet to 277 feet as a result of the delay derating |
Pairs, quantity | 4 |
Separator Type | Isolator |
Transmission Standards | ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA |
Dimensions
Cable Length | 304.8 m | 1000 ft |
Diameter Over Inner Jacket | 6.502 mm | 0.256 in |
Diameter Over Insulated Conductor | 1.125 mm | 0.0443 in |
Diameter Over Jacket, nominal | 8.382 mm | 0.33 in |
Inner Jacket Thickness | 0.457 mm | 0.018 in |
Jacket Thickness | 0.686 mm | 0.027 in |
Conductor Gauge, singles | 23 AWG |
Electrical Specifications
dc Resistance Unbalance, maximum | 5 % |
dc Resistance, maximum | 9.38 ohms/100 m | 2.859 ohms/100 ft |
Dielectric Strength, minimum | 1500 Vac | 2500 Vdc |
Mutual Capacitance at Frequency | 6.0 nF/100 m @ 1 kHz |
Nominal Velocity of Propagation (NVP) | 62 % |
Operating Frequency, maximum | 500 MHz |
Operating Voltage, maximum | 80 V |
Remote Powering | Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A |
Safety Voltage Rating | 300 V |
Material Specifications
Conductor Material | Bare copper |
Drain Wire Material | Tinned copper |
Insulation Material | Polyolefin |
Jacket Material | PE |
Separator Material | Polyolefin |
Shield (Tape) Material | Aluminum/Poly |
Mechanical Specifications
Pulling Tension, maximum | 11.34 kg | 25 lb |
Environmental Specifications
Installation temperature | -30 °C to +70 °C (-22 °F to +158 °F) |
Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
Environmental Note | UV resistant for outdoor and/or direct burial installations |
Environmental Space | Buried |
Packaging and Weights
Cable weight | 64.735 kg/km | 43.5 lb/kft |
Packaging Type | Reel |
Regulatory Compliance/Certifications
Agency | Classification |
ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
ROHS | Compliant |
CHINA-ROHS | Below maximum concentration value |
REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
UK-ROHS | Compliant |
Marca | Otros |
---|---|
MPN: | 760178129 |
