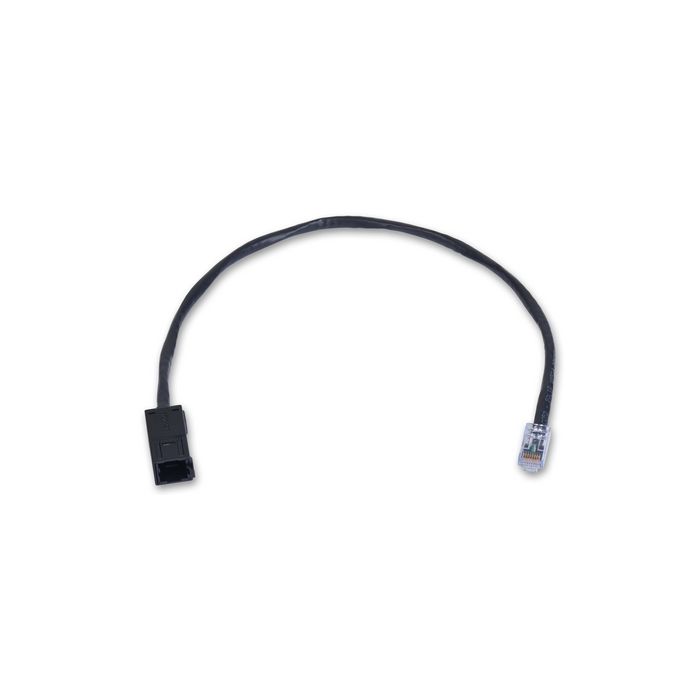

Belden RVAFFPUBK18O-S1 - revconnect 10gx i/o flexplug, cat6a, bonded-pair, 1/pack, 4 pair, 23 awg solid, t568a/b-t568a/b

Name: Belden RVAFFPUBK18O-S1 - revconnect 10gx i/o flexplug, cat6a, bonded-pair, 1/pack, 4 pair, 23 awg solid, t568a/b-t568a/b
Brand: Belden
SKU: MX0000103155
Price: 747.00 MXN
Availability: InStock

Precio especial $747.00 IVA incluido + Envio $150 MXN
Antes $867.00
Disponible 69 Pzas

sku: RVAFFPUBK18O-S1

pub

MX0000103155

Precios sujetos a cambios sin previo aviso
Pagos 100% seguros

Entrega Aprox.

Envio Nacional | Condicion: Nuevo

Cant.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Detalles

RVAFFPUBK18O-S1

REVConnect 10GX I/O FlexPlug, CAT6A, Single Packaging (incl. 1 core), Bonded-Pair, 4 Pair, 23 AWG Solid, UTP, CMR/CMX, T568A/B-T568A/Bbr

Product Overview

Suitable Applications:

10GX System, TIA Category 6A, ISO Class EA, 10G Base-T

Physical Characteristics (Overall)

Conductor

AWG	Stranding	Material	No. of Pairs
23	Solid	BC - Bare Copper	4

Insulation

Material
PO - Polyolefin

Outer Jacket

Material
PVC - Polyvinyl Chloride

Overall Nominal Diameter:	0.255 in.
Material:	PVC - Polyvinyl Chloride
Wiring Scheme:	T568A/B-T568A/B
Packaging:	Individually packaged in a clear plastic bag.
Weight:	0.120 lbs

Connectors

Materials

Description	Material	Type
Cable End 1, Plug	Polycarbonate	RJ45
Cable End 1, Connection	Phosphor Bronze with 50u inch Gold over Nickel Plating	RJ45 Blades
Cable End 2, Connection	50uin Gold plated contacts	REVConnect

Electrical Characteristics

Dielectric Strength:1,000 V RMS @ 60 HzCurrent Rating:1.500 AInsulation Resistance:500 M-Ohm MinimumMax Contact Resistance:20 mOhm

High Frequency

Frequency [MHz]	Min. NEXT [dB]	Min. RL (Return Loss) [dB]
1 MHz	65 dB	19.8 dB
4 MHz	65 dB	21.6 dB
8 MHz	65 dB	22.5 dB
10 MHz	65 dB	22.8 dB
16 MHz	63 dB	23.4 dB
20 MHz	61 dB	23.7 dB
25 MHz	59.2 dB	24 dB
31.25 MHz	57.3 dB	23 dB
62.5 MHz	51.3 dB	20 dB
100 MHz	47.3 dB	18 dB
200 MHz	41.4 dB	15 dB
250 MHz	39.5 dB	14 dB
300 MHz	37.2 dB	12.8 dB
400 MHz	33.7 dB	10.9 dB
500 MHz	30.9 dB	9.5 dB
625 MHz	28.3 dB	8 dB

Temperature Range

Installation Temperature Range:	-10°C To +60°C
Storage Temperature Range:	-40°C To +70°C
Operating Temperature Range:	-10°C To +60°C

Mechanical Characteristics

Min Bend Radius (Overall Cable):2.75 in.Tool Compatibility:RVUTT01 Termination ToolPlug /Jack Compatibility:RJ45, REVConnect CoreTermination Rear Connection:Mated Connection

Termination Interface

Termination	Connection	Durabilities
Cable End 1 - RJ45	Mated Connection	750 Cycles
Cable End 2 - RevConnect	Mated Connection	200 Cycles

Standards

UL Rating:	UL94 V-0, UL1863
Data Category:	Category 6A
TIA/EIA Compliance:	Category 6A - TIA 568.2-D, ISO/IEC 11801:2002 Ed.2
IEEE Compliance:	Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
Other Standards:	FCC Part 68, Subpart F, IEC 60603-7

Applicable Environmental and Other Programs

MII Order #39 (China RoHS):

EUP 50

Suitability

Suitability - Indoor:	Yes
Suitability - Outdoor:	Yes - Cable only

Flammability, LS0H, Toxicity Testing

Safety Listing:

c(UL)us Listed

Related Part Numbers

Related Parts:REVConnect

Variants

Item #	Color	Packaging	Put-Up Type	Length	UPC
RVAFFPUBK18O-S1	Black	Individually packaged in a clear plastic bag.	Single Pack	0.45 m	611589247443

History

Más información

Más información
Marca	Belden
MPN:	RVAFFPUBK18O-S1
