Belden FPSLDLD005M fo patch cord os2 lc-duplex 5m ofnr yell

Precio especial $1,399.00 IVA incluido + Envio $150 MXN
Antes $1,623.00
Disponible 16 Pzas
sku: FPSLDLD005M
pub
MX0000103120
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo
Logo

FPSLDLD005M

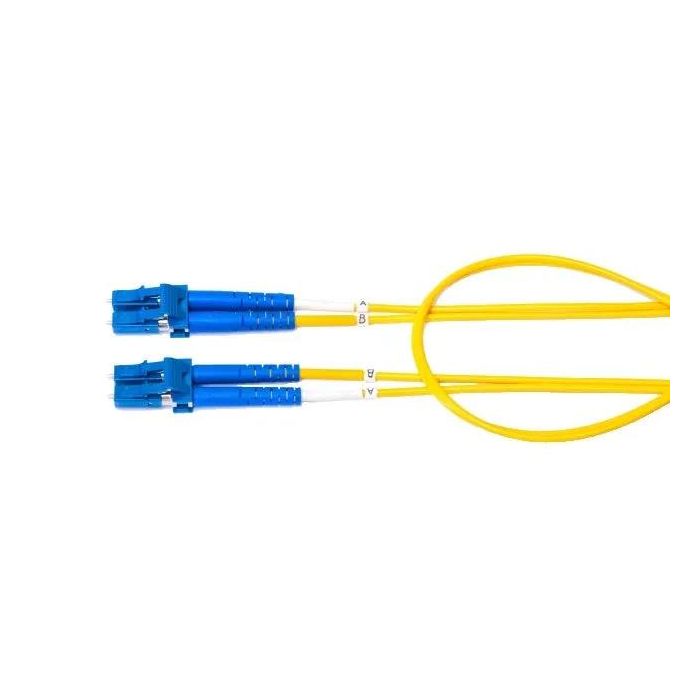

FX PATCH CORD, OS2, LC DUPLEX - LC DUPLEX, 5 M, OFNR, DUPLEX ZIP 2.0 MM, A-TO-B, YELLOW JACKET

Specifications

Product Overview

Suitable Applications

Data Center, LAN, Equipment Room, Telecommunication room, Workstation Area

Fiber Specifications

Fiber Type

OS2

Fiber Core Diameter

8.2/125 µm

Fiber Count

2

Fiber Color Coding

TIA-598-D

Physical Specifications
CONNECTORS
Description Type Housing Material Housing Color Ferrule Boot Material Boot Color
Connector A (Inside End) LC Duplex Plastic Blue Zirconia Ceramic Rubber Blue
Connector B (Outside End) LC Duplex Plastic Blue Zirconia Ceramic Rubber Blue
ASSEMBLY CABLE
Cable Nominal OD Jacket Color
2.0 mm x 4.0 mm Yellow
MEASUREMENT
Overall Assembly Length Packaging
5 m (16.4 ft) Individually packaged in a plastic bag
OVERALL LENGTH TOLERANCES
Range Tolerance
0 to 2 meters +0.2 / -0 meter
2.1 to 4.9 meters +0.3 / -0 meter
5 to 40 meters +0.4 / -0 meter
over 40 meters +1.0% / -0%
Armor Specifications

Armor Type and Material

No Armor

Optical Characteristics

Polarity Identification

A-to-B / B-to-A

FIBER CONNECTOR PERFORMANCE
Description Connector Type Max. Insertion Loss Min. Return Loss
Connector A (Inside End) LC Duplex 0.25 dB 55 dB
Connector B (Outside End) LC Duplex 0.25 dB 55 dB
Mechanical Characteristics

Min. Bend Radius During Installation

15x Cable OD

Min. Bend Radius During Operation

10x Cable OD

Temperature Range

Operating Temperature Range

-40C to +75C

Storage Temperature Range

-40C to +75C

Standards and Compliance

Environmental Suitability

Indoor

Flammability / Reaction to Fire

OFNR

UL Rating

Riser

TIA/EIA Compliance

TIA/EIA 568.3

European Directive Compliance

EU Directive 2011/65/EU (RoHS 2)

MII Order #39 (China RoHS)

EUP 50

Other Standard Compliance(s)

ACMA

Product Notes

Related Parts

DCX system, FX UHD Patch Panels, ECX Patch Panels, FX Patch cords, FX MPO Trunks, FX Multi-fiber Trunks

History

Update and Revision

Revision Number: 0.26 Revision Date: 07-21-2023

Más información
MarcaBelden
MPN:FPSLDLD005M
