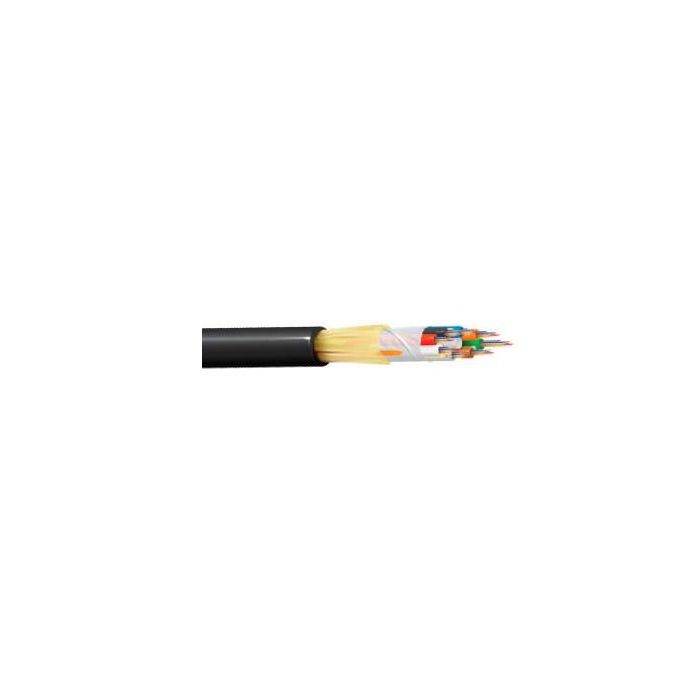

Belden FS4L006NF fibra optica 6 hilos om3 multimodo interiorexterior (tramo de 100mt)
Precio especial $16,897.00 IVA incluido + Envio $150 MXN
Antes $19,601.00
Disponible 1 Pzas
Antes $19,601.00
Disponible 1 Pzas
sku: FS4L006NF
pub
MX0000103097
*Antes de ofertar , es necesario confirmar medidas
FS4L006NF BELDEN
FIBRA OPTICA OM4 MULTIMODO EXTERIOR PLANTA EXTERNA OSP CON GEL BELDEN 6 HILOS, COLOR NEGRO, 3280FT/ 1000 METROS
FIBRA OPTICA 6 HILOS OM3 MULTIMODO INTERIOREXTERIOR (TRAMO DE 100MT)
- Aplicaciones adecuadas: Red de área del campus, largo recorrido, red troncal
- Tipo de fibra:OM4
- Diámetro del núcleo de fibra:50/125 micras
- Diámetro de la fibra:250 micras
- Recuento de fibras:6
- Codificación de colores de fibra:TIA-598-D
- Lleno de gel
- Material:PE - Polietileno
- Color:Negro
- Longitud de onda 850 nm y 1300 nm
- Radio de curvatura mínimo durante la instalación: 15x Cable OD
- Radio mínimo de curvatura durante la operación: 10x Cable OD
- Idoneidad ambiental:Al aire libre, entierro
FS4L006NF
Outdoor Loose Tube OM4 6 Fibers OSP Sub-Units(6F) Gel Blackbr
Product Overview
Suitable Applications: | Campus Area Network, Long Haul, Backbone |
Fiber Specifications
Fiber Type: | OM4 |
Fiber Core Diameter: | 50/125 µm |
Fiber Diameter: | 250 µm |
Fiber Count: | 6 |
Fiber Color Coding: | TIA-598-D |
Cable Construction
Number of Active Subunits: | 1 |
Number of Fillers: | 4 |
Fibers Per Subunit: | 6 |
Subunit Waterblocking: | Gel Filled |
Subunit Diameter: | 0.078 in (2.0 mm) |
Central Strength Member: | GRP |
Cable Core Waterblocking: | Waterblock Tape |
Inner Jacket Specifications
Material: | PE - Polyethylene |
Color: | Black |
Number of Ripcords: | 2 |
Outer Jacket Specifications
Strength Member:Waterblocking Aramid YarnsJacket Material:PE - PolyethyleneNom. Diameter:0.364 in (9.2 mm)Number of Ripcords:1
Optical Characteristics
Wavelength | 850 nm | 1300 nm |
---|---|---|
Max. Attenuation | 3.0 dB/km | 1.0 dB/km |
1 Gigabit Ethernet Performance | 1100 | 550 |
10 Gigabit Ethernet Performance | 550 m | -- |
Min. Effective Modal Bandwidth (EMB) | 4700 MHz-km | -- |
Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz-km | 500 MHz-km |
Mechanical Characteristics
Min. Bend Radius During Installation: | 15x Cable OD |
Min. Bend Radius During Operation: | 10x Cable OD |
Max. Tensile Strength During Installation: | 2670 N (600 lbf) |
Max. Tensile Strength During Operation: | 800 N (180 lbf) |
Crush Resistance: | 220 N/cm |
Bulk Cable Weight: | 39 lbs/kft (58 kg/km) |
Temperature Range
Installation Temperature Range: | -30C to +70C |
Operating Temperature Range: | -40C to +70C |
Storage Temperature Range: | -40C to +75C |
Standards and Compliance
Environmental Suitability: | Outdoor, Burial |
Sustainability: | CA Prop 65, Product Lens™, Environmental Product Declaration (EPD) Available |
ICEA Compliance: | S-87-640 |
TIA/EIA Compliance: | ANSI/ICEA S-87-640 |
History
Update and Revision: | Revision Number: 0.60 Revision Date: 11-09-2022 |
Part Numbers
Variants
Item # | Color | UPC |
---|---|---|
FS4L006NF | Black | 612825371748 |
Marca | Belden |
---|---|
MPN: | FS4L006NF |
