Dahua DHI-ARM808-RS módulo de expansión entradas para paneles/ 8 alarma/ 2 salidas no-nc con jumper/ direccionable dip switch/ configuración fin línea 2k7, 4k7 y 6k8/ paneles arc3008c, arc9016c, arc2008c arc2016c
Precio especial $717.00 IVA incluido + Envio $150 MXN
Antes $832.00
Disponible 294 Pzas
Antes $832.00
Disponible 294 Pzas
sku: DHI-ARM808-RS
pub
MX0000103071
ARM808-RS

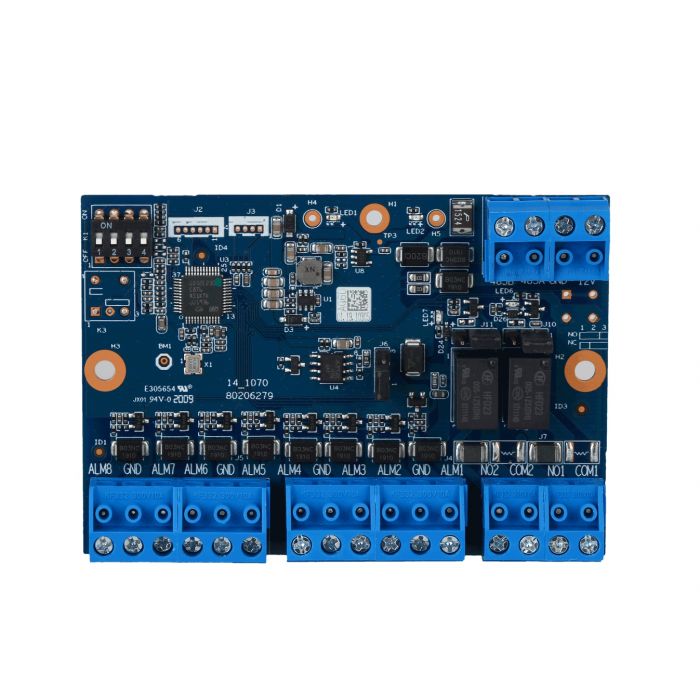

Input Expansion Module
> 8-channel alarm inputs
> 2-channel alarm outputs
> Address setting with DIP switch
> EOLR configuration (2K7, 4K7, and 6K8)
> Alarm output switch between NO (Normally Open) and NC (Normally Closed) with jumper
> Remote update by client software
| Port | |
| Alarm Output | 2 |
| Alarm Iutput | 8 |
| RS-485 | 1, connected to a maximum of 300 m ( 984.25 ft ) cable typed RVV2*1.5 |
| Function | |
| Device Address | 0–15( ARC9 series, ARC2 series ) 1–8( ARC3008 ) |
| Zone Terminations | NC, NO, 1EOL, 2EOL, 3EOL, INERTIAL(ARC3008), and IMPULSE(ARC3008) |
| EOLR | 2K7, 4K7, and 6K8 |
| Alarm Output Mode | Switch between NO and NC with jumper |
| Output Capacity | 30 VDC/500 mA |
| Update | Remote update by client software |
| General | |
| Power Supply | 12 VDC |
| Power Consumption | 1.2 W |
| Operating Temperature | –10°C to +55°C (+ 14°F to + 131°F) |
| Operating Humidity | 10%–90% ( RH ) |
| Product Dimensions | 90.0 mm × 62.0 mm × 12.6 mm ( 3.54' × 2.44' × 0.5' ) ( L × W × H ) |
| Net Weight | ≤1 kg ( 2.20 lb ) |
| Marca | Dahua |
|---|---|
| MPN: | DHI-ARM808-RS |
