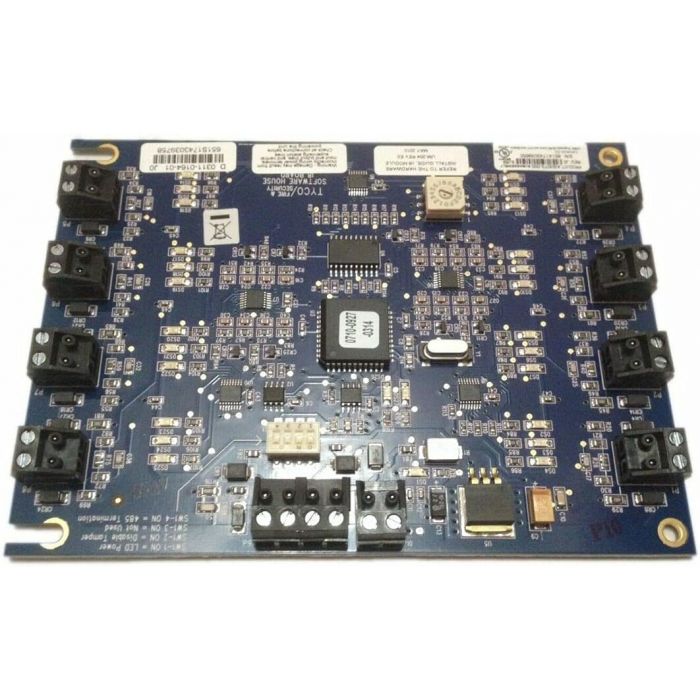

Software House AS0073-000 stanley onlyi8 bus de lector ocho entradas mo
Precio especial $8,115.00 IVA incluido + Envio $150 MXN
Antes $9,413.00
Disponible 2 Pzas
Antes $9,413.00
Disponible 2 Pzas
sku: AS0073-000
pub
MX0000103065
AS0073-000
- Provides cost-effective expansion of input and output capacity
- Compatible with full range of Software House iSTAR and apC access control panels
- Locate modules up to 1,220 m (4,000 ft) away from controllers using flexible two-wire RS-485 RM bus
- Reduces length of sensor and control wiring to save installation costs
- I8 provides eight Class A supervised inputs
- Three status LEDs per input (red/yellow/green) and one per output enable quick diagnostics and troubleshooting
- Small, modular size requires minimal panel space
- Dedicated tamper input included on each module
- Optional UL-listed enclosure available
- Fully compatible with both C•CURE 9000 and C•CURE 800/8000
Dimensions (H x W) | 11.0 x 15.0 cm (4.3 x 5.9 in) |
Environmental | 0° to 50° C (32° to 122° F); 5 to 85% relative humidity, non-condensing |
Power Input Voltage | 12 VDC +/- 10% |
Tamper | Dedicated input for external tamper switch |
Weight | 0.23 kg (8 oz) |
Regulatory | UL 294, UL 1076, FCC Part A, CE, EN 50133, RoHS |
Power Requirements | 180 mA @ 12 VDC |
Inputs | Eight Class A supervised |
LEDs per Input | Red (alarm), green (normal), yellow (supervision error) |
Marca | Otros |
---|---|
MPN: | AS0073-000 |
