Dahua DH-S7803 switch capa 3/fácil de administrar/ hot swap/high-performance ipv4 and ipv6
Precio especial $138,202.00 IVA incluido + Envio $150 MXN
Antes $160,314.00
Disponible 4 Pzas
Antes $160,314.00
Disponible 4 Pzas
sku: DH-S7803
pub
MX0000103009
S7803

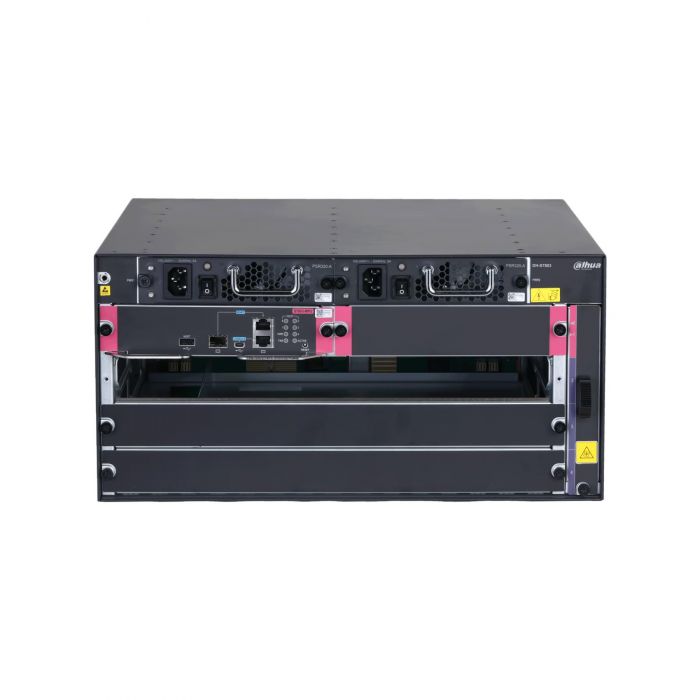

L3 Managed S78 Series Switch with 3-Slot-DH-S7803
> Rich layer 3 features.
> Easy to manage.
> Supports Intelligent Resilient Framework.
> Comprehensive security control policies. Supports hot swapping for all components. · High-performance IPv4 and IPv6 service capabilities.
> MACsec technology offers hardware-based encryption.
> Meets the needs of scenarios that have different port densities and performance requirements.
| Basic | |
| Layer | Layer 3 |
| Switching Capacity | 168 Tbps |
| Packet Forwarding Rate | 36,000 Mpps |
| Operating Temperature | 0 °C to +45 °C (+32 °F to +113 °F) |
| Operating Humidity | 5% –95% (RH), non-condensing |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Supply | Dual power supply: 100–240 VAC; 50/60 Hz; 5 A |
| Power Consumption | Idling: 7.5 W Full load: 490 W |
| Statics Protection | Air discharge: 8 kV Contact discharge: 6 kV |
| Lightning Protection | Common mode: 2 kV Differential mode: 1 kV |
| Net Weight | 18 kg (39.68 lb) |
| Gross Weight | 20.20 kg (44.53 lb) |
| Product Dimensions | 436 mm × 420 mm × 216 mm (17.17' × 16.54' × 8.50' ) (L × W × H) |
| Packaging Dimensions | 600 mm × 585 mm × 375 mm (23.62' × 23.03' × 14.76') (L × W × H) |
| Installation | Rack mount |
| Hardware | |
| Total Slots | 5 |
| Function Slots | 3 |
| MPU | 2 |
| Debugging | 1 × Console port 2 × MGMT ports 1 × USB port 1 × Micro-USB port |
| Hot Plug | Yes |
| Performance | |
| Packet Buffer Size | 24 Mbit |
| Jumbo Frame | 9,600 Byte |
| MAC Table Size | 320K |
| Communication Standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3az; IEEE 802.3ad; IEEE 802.3ae |
| VLAN Number | 4094 |
| VLAN Interface | 4000 |
| IPv4 Routes | 16K |
| Dynamic ARP | 64K |
| Feature | |
| Ethernet Loop Protection | STP/RSTP/MSTP PVST RRPP ERPS |
| VLAN Function | Port-based VLAN; MAC-based VLAN; Protocol-based VLAN; Subnet-based VLAN; QinQ, flexible QinQ; VLAN Mapping; MVRP |
| Link Aggregation | Multi-chassis Link Aggregation LACP Dynamic Aggregation Static Aggregation |
| Port Feature | IEEE 802.3x Flow Control Unknown Unicast Suppression Multicast Storm Control Broadcast Storm Control |
| Mirror | Flow Mirroring N:1 Mirroring Local Port Mirroring Remote Port Mirroring |
| Multicast | IGMP Snooping; IGMP Proxy; PIM Snooping; IGMP V1; IGMP V2; IGMP V3; PIM-SM; PIM-SSM; PIM-DM; Dual-way PIM; MSDP; MBDP |
| Reliability | IRF VRRP DLDP LLDP |
| Routing | Static Routing RIPv1 RIPv2 RIPv3 RIPng OSPFv2 OSPFv3 IS-ISv4 IS-ISv46 BGP4 BGP4+ ECMP; PBR |
| ARP | ARP, RARP, free ARP Dynamic ARP Inspection ARP anti-attack ARP source suppression ARP detection |
| DHCP Function | DHCP Client DHCP Snooping DHCP Relay DHCP Server |
| Security | Multi-level user management and password protection 802.1x/centralized MAC address authentication Guest VLAN RADIUS SSH 2.0 Port isolation Port security PORTAL authentication DHCP Snooping prevents spoofing DHCP servers Dynamic ARP detection protects the network from man-in-the-middle and DoS attacks uRPF prevents malformed or forged source IP attacks |
| QoS/ACL | Packet filtering (Layer 2 to Layer 4) Source MAC-, destination MAC-, Source IP (IPv4/IPv6)-, destination IP (IPv4/IPv6)-, TCP/UDP port number-, VLAN-based traffic classification Time-based ACL Two-way ACL policy (ingress and egress) VLAN-based ACL application RX and TX rate limit Minimum granularity of 8 Kbps Message redirection Remark 802.1p and DSCP priority CAR (Committed Access Rate) Each port has 8 egress queues; CPU port supports 48 queues The flexible queue scheduling algorithm supports SP, WRR, WFQ, SP + WRR, and WDRR modes (can be set based on the port and queue at the same time) |
| IPv6 | ICMPv6 SSH2 V6 TFTP V6 ND ND Snooping ND Proxy ND Detection DHCPv6 Snooping DHCPv6 Client DHCPv6 Relay DHCPv6 Server IPv6 Port Binding |
| Equipment Management | CLI Configuration Telnet SSH SNMP v1 SNMP v2c SNMP v3 Console Port Configuration ROMN TFTP FTP NTP Logs; System Log; Fault Alarm; Level-based Alarm; Loopback Detection; Ping; Traceroute |
| Marca | Dahua |
|---|---|
| MPN: | DH-S7803 |
