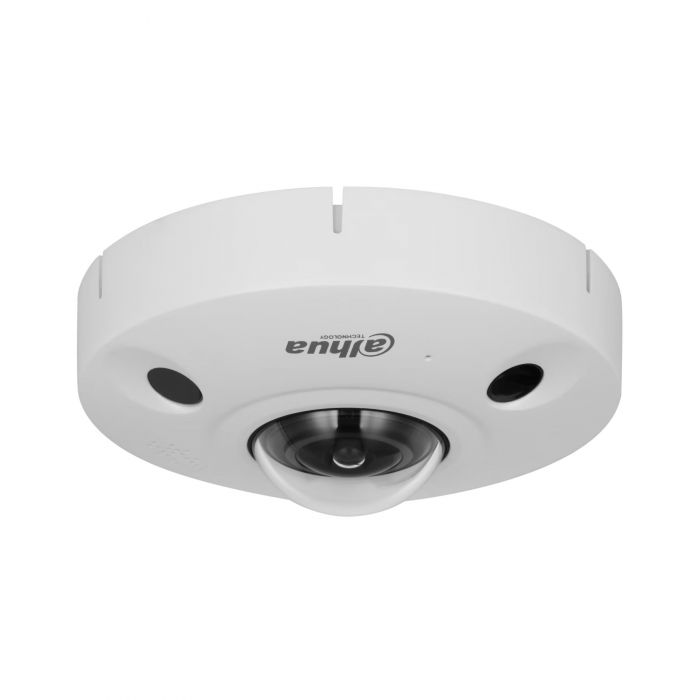

Dahua DH-IPC-EBW8842-AS-IVC technology wizmind cámara de vigilancia domo seguridad ip exterior 3280 x 2480 pixeles techo
Precio especial $15,833.00 IVA incluido + Envio $150 MXN
Antes $18,366.00
Disponible 1 Pzas
Antes $18,366.00
Disponible 1 Pzas
sku: DH-IPC-EBW8842-AS-IVC
pub
MX0000102843
DH-IPC-EBW8842-AS-IVC
| Desempeño | |
|---|---|
| Tipo | Cámara de seguridad IP |
| Colocación compatible | Exterior |
| Tecnología de conectividad | Alámbrico |
| Función de recuento de personas | Si |
| Distancia de funcionamiento máximo | 27.9 m |
| Amplio rango dinámico (WDR) | Si |
| Modo día / noche | Si |
| Alarma de entrada / salida | No |
| Rango dinámico | 56 Db |
| Diseño | |
| Tipo de montaje | Techo |
| Color del producto | Blanco |
| Factor de forma | Domo |
| Material de la cubierta | Metal |
| Código IP (International Protection) | IP67 |
| Código IK | IK10 |
| Empaquetado de datos | |
| Peso del paquete | 1.21 kg |
| Vídeo | |
| Máxima resolución | 3280 x 2480 Pixeles |
| Total de megapixeles | 8 MP |
| Formatos de vídeo compatibles | H.264, H.265, M-JPEG |
| Formatos de compresión de video | H.264, H.264H, H.265, M-JPEG |
| Formatos gráficos soportados | 352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 960, 1536 x 2048, 2880 x 2160, 3280 x 2048 |
| Grabación de vídeo | Si |
| Velocidad de cuadro | 30 fps |
| Analítica de inteligencia de vídeo | Si |
| Emisión de vídeo | Si |
| Reducción de ruido | Si |
| Tecnología de reducción de ruido | Reducción de ruido 3D |
| Tipo de control de ganancia | Auto |
| Control de tasa de bits | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Rango de bits | 3 - 16384 |
| Compensación de contraluz (BLC) | Si |
| Compensación de luces altas (HLC) | Si |
| Amplio Rango Dinámico Digital (DWDR) | Si |
| Smart IR | Si |
| Puertos e Interfaces | |
| Puertos Ethernet LAN (RJ-45) | 1 |
| Entrada de micrófono | Si |
| Medios de almacenaje | |
| HDD incorporado | No |
| Lector de tarjeta integrado | Si |
| Tarjetas de memoria compatibles | MicroSD (TransFlash) |
| Tamaño máximo de tarjeta de memoria | 256 GB |
| Memoria interna | 4000 MB |
| Capacidad de ROM | 2000 MB |
| Cámara panorámica | |
| Rango dinámico amplio digital (DWDR) (cámara panorámica) | Si |
| Seguridad | |
| Canales de entrada de alarma | 2 |
| Canales de salida de alarma | 2 |
| Construido en la sirena | Si |
| Detección de movimiento en video | Si |
| Algoritmos de seguridad | HTTPS |
| Cifrado HTTPS | Si |
| Características del sistema de videovigilancia inteligente (IVS) | Intromisión, Contador de personas, Cable de conexión |
| Sensor de movimiento | Si |
| Espejo | Si |
| Autenticación por consulta | Si |
| Cámara fotográfica | |
| Control de desplazamiento de la cámara | No |
| Control de inclinación de la cámara | No |
| Iluminación mínima | 0 Lux |
| Ángulo de campo de visión (FOV) | 185° |
| Ángulo de visión del objetivo, horizontal | 185° |
| Ángulo de visión del objetivo, vertical | 180° |
| Balance de blancos | Auto, Modos personalizados, Manual, Natural, Exterior, Street lamp |
| Tipo de disparador de la cámara | Electrónico |
| Velocidad de obturador | 1/3 –1/100,000 |
| Velocidad de obturación ajustable | Automático/Manual |
| Contenido del empaque | |
| Número de cámaras | 1 |
| Peso y dimensiones | |
| Ancho | 59.8 mm |
| Diámetro | 15 cm |
| Peso | 790 g |
| Visión nocturna | |
| Visión nocturna | Si |
| Distancia de visión nocturna | 10 m |
| Tipo de LED | IR |
| Número de LEDs de iluminación | 3 |
| Red | |
| Ethernet | Si |
| Wifi | No |
| Bluetooth | No |
| Protocolos de red compatibles | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Número de usuarios | 20 usuario(s) |
| Modo de retransmisión | Multidifusión |
| Vista viva | Si |
| Cantidad de canales simultáneos de visualización en directo | 3 canales |
| Servidores web, soporte | IE: IE11, IE10 Chrome: 48.0.2564.116 Firefox: 48.0.2 Edge: 42.17134.1.0 |
| Sustentabilidad | |
| Certificados de cumplimiento | CE, Comisión Federal de Comunicaciones (FCC) |
| Control de energía | |
| Tipo de alimentación | CC, PoE |
| Consumo energético | 6.5 W |
| Consumo de energía (máx.) | 13 W |
| Consumo de energía (Power over Ethernet (PoE)) | 13.9 W |
| Voltaje de salida CC | 12 |
| Condiciones ambientales | |
| Intervalo de temperatura operativa (T-T) | -40 - 55 °C |
| Intervalo de temperatura de almacenaje | -30 - 70 °C |
| Intervalo de humedad relativa para funcionamiento | 0 - 95% |
| Audio | |
| Canales de entrada de audio | 1 canales |
| Formatos de audio soportados | G.711, G.722, G.723, G.726, PCM |
| Relación señal/ruido (SNR) | 56 Db |
| Micrófono incorporado | Si |
| Codecs de voz | G.711Mu, G.711a, G.723, G.726, PCM |
| Detección de audio | Si |
| Sensor de la imagen | |
| Tipo de sensor | CMOS |
| Tamaño del sensor óptico | 25.4 / 1.7 mm (1 / 1.7') |
| Escaneado progresivo | Si |
| Características de administración | |
| Administración basada en web | Si |
| Navegador web | Si |
| Programación de gestión | Smart PSS; DSS; DMSS |
| Sistema de lentes | |
| Número de lentes | 1 |
| Distancia de detección | 27.9 m |
| Distancia de observación | 11.2 m |
| Distancia de reconocimiento | 5.6 m |
| Apertura máxima | 2.2 |
| Distancia de identificación | 2.8 m |
| Distancia focal fija | 1.29 mm |
| Distancia más cercana de enfoque | 0.2 m |
Otros datos
IPC-EBW8842-AS-IVC
8 MP IR Fisheye WizMind Network Camera with Panomorph Lens
> 8 MP 1/1.7' CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8M (3280 × 2480) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 10 m.
> Intelligent monitoring: Intrusion, tripwire, heat map, and people counting.
> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual-array Mic and speaker.
> 12 VDC/PoE power supply.
> IP67 and IK10 protection.
> Adopts Panomorph lens, having better compatibility with third party platform.
> Panomorph Lens RPL: B9VVT.
| Camera | |
| Image Sensor | 1/1.7' CMOS |
| Max. Resolution | 3280 (H) × 2480 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.01 Lux@F2.0 (Color, 30 IRE) 0.001 Lux@F2.0 (B/W, 30 IRE) 0 Lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | up to 10 m (32.81 ft) (IR) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 3 (IR LED) |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 1.29 mm |
| Max. Aperture | F2.0 |
| Field of View | Horizontal: 185°; Vertical: 180° |
| Iris Control | Fixed |
| Close Focus Distance | 0.2 m (0.66 ft) |
| Smart Event | |
| Heat Map | Yes |
| Professional, intelligent | |
| IVS (Perimeter Protection) | Intrusion; tripwire |
| People Counting | Supports 4 rules to count the number of people entering, exiting, and staying separately. It will trigger alarm linkage when the number of people who entering, exiting or staying exceeds the threshold. It can display and export reports based on year, month, week, day or custom time. Supports 4 rules to count the number of people in area and will trigger alarm linkage when the average strand time or people number in the area exceeds the threshold. It can display and export reports based on month, week, day or custom time |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Fisheye | |
| Installation | Ceiling mount; wall mount; ground mount |
| Decoding Mode | Front-dewarp; Back-dewarp; Front-dewarp+Back-dewarp |
| Display Mode | Front-dewarp (hardware decoding):1O; 1P; 2P; 1R; 2R; 4R; 1O+ 3R *O: Fisheye image view; P: Panoramic image view; R: Region image view Back-dewarp (software decoding): fisheye view; 360° panoramic view + PTZ; dual-channel 180° panoramic view; fisheye + 2PTZ; fisheye + 3PTZ; fisheye + 4PTZ; 360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° panoramic view + 4PTZ; 180° panoramic view + 8PTZ; VR mode (panorama; semi-circle; cylinder; asteroid) |
| Video | |
| Video Compression | H.265; H.264; H.264H; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 3280 × 2480@(1–25/30 fps) sub stream: 704 × 576@(1–25/30 fps) third stream: 1280 × 960@(1–25/30 fps) Fisheye mode: 1O (3280 × 2480) 1P (4096 × 1024) 2P (2432 × 2432) 1R (1216 × 1216) 2R (2432 × 2432) 4R (2432 × 2432) 1O + 3R (2432 × 2432) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 3280 × 2480; 2880 × 2160; (3M) 2048 × 1536; 1.3M (1280 × 960); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H264: 8 kbps–16384 kbps H265: 3 kbps–13891 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Audio Compression | PCM; G.711A; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card durability warning; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay detection; people counting; security exception |
| Network | |
| Network Port | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P (Only supported by general version) |
| User/Host | 20 |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE: IE11, IE10 Chrome: 48.0.2564.116 Firefox: 48.0.2 Edge: 42.17134.1.0 |
| Management Software | Smart PSS; DSS; DMSS |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channel in: wet contact,5mA 3V–5 VDC |
| Alarm Output | 2 channels out: dry contact,1,000mA 30 VDC/500mA 50 VDC |
| Power | |
| Power Supply | 12 VDC/POE+ (802.3at) |
| Power Consumption | Basic: 6.5 W (12 VDC); 6.1 W (PoE) Max. (ICR + IR intensity): 13 W (12 VDC); 13.9 W (PoE) Heating: 3 W (12 VDC); 3 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Protection | IP67; IK10 |
| Structure | |
| Casing | Metal |
| Product Dimensions | 59.8 mm × Φ149.8 mm (2.35' × Φ5.90') |
| Net Weight | 0.79 kg (1.74 lb) |
| Gross Weight | 1.21 kg (2.67 lb) |
| Marca | Dahua |
|---|---|
| MPN: | DH-IPC-EBW8842-AS-IVC |
