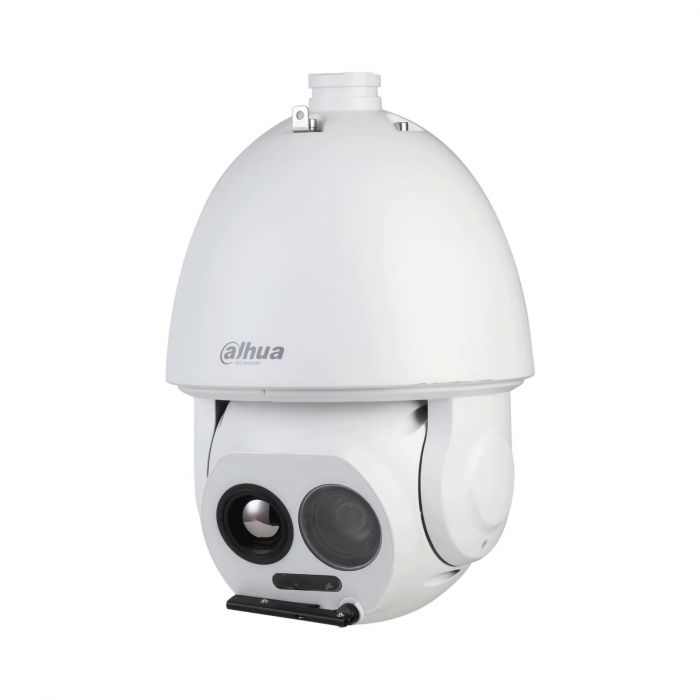

Dahua DHI-TPC-SD5441 DHI-TPC-SD5441-b35z45-bm-s24 - cámara ip híbrida térmica 4mp/ 45x/ ir 100m/ defog/ fusión de imágenes/ wdr/ ranura micro sd
Precio especial $105,302.00 IVA incluido + Envio $150 MXN
Antes $122,150.00
Disponible 2 Pzas
Antes $122,150.00
Disponible 2 Pzas
sku: DHI-TPC-SD5441
pub
MX0000102838
DAHUA DHI-TPC-SD5441-B35Z45-BM-S24 - Cámara IP híbrida térmica 4MP/ 45X/ IR 100m/ Defog/ Fusión de imágenes/ WDR/ Ranura Micro SD/ E&S de Alarma y Audio/ Hi-PoE/ IP66/ Detección de calor/ Seguimiento de puntos fríos y calientes/ Protección Perimetral/SMD
TPC-SD5441
Thermal Hybrid Speed Dome Camera
> Vanadium oxide uncooled focal plane detector.
> 4Megapixel progressive scan CMOS.
> Visible lens offers 45× optical zoom.
> AI functions: boat detection, heat detection, tripwire, intrusion, and human/vehicle classification.
> Maximum IR illumination distance is 100 m.
> Dual image fusion (visible and thermal images).
> Pan: 0° to 360°, tilt: –10° to +90°.
> Wide input voltage 36 VDC ± 50%, and Hi-PoE.
> IP66 rated.
| Thermal | ||
| Detector Type | Vanadium oxide uncooled focal plane detector | |
| Effective Pixels | 400 (H) × 300 (V) | |
| Pixel Pitch | 17 μm | |
| Spectral Range | 8 μm–14 μm | |
| Sensitivity (NETD) | <35 mK (@f/1.0) | |
| Focal Length | 13 mm; 19 mm; 25 mm; 35 mm; 50 mm | |
| Field of View | 13 mm: H: 30.2°; V: 22.6° 19 mm: H: 20.3°; V: 15.3° 25 mm: H: 15.5°; V: 11.7° 35 mm: H: 11.1°; V: 8.3° 50 mm: H: 7.8°; V: 5.8 | |
| Thermal Focus Control | Fixed-focal | |
| Detection Distance? | 13 mm: Vehicle: 1,020 m (3,346.46 ft); Human: 382 m (1,253.28 ft) 19 mm: Vehicle: 1,490 m (4,888.45 ft); Human: 559 m (1,833.99 ft) 25 mm: Vehicle: 1,961 m (6,433.73 ft); Human: 735 m (2,411.42 ft) 35 mm: Vehicle: 2,745 m (9,005.91 ft); Human: 1,029 m (3,375.98 ft) 50 mm: Vehicle: 3,922 m (12,867.45 ft); Human: 1,471 m (4,826.12 ft) | |
| Recognition Distance? | 13 mm: Vehicle: 255 m (836.61 ft); Human: 98 m (321.52 ft) 19 mm: Vehicle: 373 m (1,223.75 ft); Human: 144 m (472.44 ft) 25 mm: Vehicle: 490 m (1,607.61 ft); Human: 181 m (593.83 ft) 35 mm: Vehicle: 686 m (2,250.66 ft); Human: 265 m (869.42 ft) 50 mm: Vehicle: 980 m (3,215.22 ft); Human: 378 m (1,240.16 ft) | |
| Identification Distance? | 13 mm: Vehicle: 128 m (419.95 ft) Human: 49 m (160.76 ft) 19 mm: Vehicle: 186 m (610.24 ft) Human: 72 m (236.22 ft) 25 mm: Vehicle: 245 m (803.81 ft) Human: 95 m (311.68 ft) 35 mm: Vehicle: 343 m (1,125.33 ft) Human: 132 m (433.07 ft) 50 mm: Vehicle: 490 m (1,607.61 ft) Human: 189 m (620.08 ft) | |
| Note: ?Detection Distance: Detects objects, but cannot recognize their characteristics (objects must cover more than 3.6 pixels of the image). ?Recognition Distance: Classifies objects into general categories, such as human, vehicle (the object must cover more than 14 pixels of the image). ?Identification Distance: Classifies objects into specific categories based on their characteristics, such as engineering truck, car (the object must cover more than 28 pixels of the image). | ||
| Digital Detail Enhancement (DDE) | Yes | |
| Digital Zoom | 19 levels | |
| Thermal AGC | Auto/Manual | |
| Thermal Noise Reduction | 2D NR/3D NR | |
| Image Flip | 180° | |
| Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) | |
| Visible | ||
| Image Sensor | 1/2.8' CMOS | |
| Max. Resolution | 2688 (H) × 1520 (V) | |
| Pixel | 4 MP | |
| Horizontal Definition | Center ≥ 1200 TVL Edge ≥ 900 TVL | |
| Min. Illumination | Color: 0.01 lux Black & white: 0.001 lux 0 lux (IR on) | |
| Visible AGC | Auto/Manual | |
| Visible Noise Reduction | 2D NR/3D NR | |
| S/N Ratio | ≥55 dB | |
| White Balance | Auto; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural | |
| Defog | Electronic defog | |
| Electronic Shutter Speed | 1 s–1/30,000 s (auto/manual) | |
| BLC | Yes | |
| WDR | Yes | |
| HLC | Yes | |
| Day/Night | Auto (ICR); Color; B/W | |
| Iris Control | Auto | |
| Image Flip | 180° | |
| Exposure Compensation | Yes | |
| Visible Focus Control | Manual | |
| Focal Length | 3.95 mm–177.75 mm | |
| Field of View | H: 67.5°–1.9° V: 39.4°–1.1° | |
| Close Focus Distance | 1 m–10 m (3.28 ft–32.81 ft) | |
| Illuminator On/Off Control | Auto/Manual | |
| Illumination Distance | 100 m (328.08 ft) | |
| Audio and Video | ||
| Video Compression | H.265; H.264M; H.264H; H.264B | |
| Resolution | Thermal: Main stream: 1280 × 1024; 1280 × 720; 640 × 512; 1280 × 1024 (default) Sub stream: 640 × 512; 320 × 256; 640 × 512 (default) Visible: Main stream: 2688 × 1520 (optional); 2560 × 1440; 1080p (1920 × 1080); 1280 × 720; 704 × 576; 2560 × 1440 (default) Sub stream: 1920 × 1080; 1280 × 720; 704 × 576 | |
| Video Frame Rate | Thermal: 50 Hz: (main stream) 1 fps–50 fps adjustable, 50 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–60 fps adjustable, 60 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default Visible: 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default | |
| Audio Compression | G.711a; G.711mu | |
| Image Encoding Format | JPEG | |
| PTZ | ||
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –10° to +90° | |
| Manual Control Speed | Pan: 0.1°/s to 200°/s Tilt: 0.1°/s to 120°/s | |
| Preset Speed | Pan: 240°/s Tilt: 200°/s | |
| Preset | 200 | |
| Tour | 8 (up to 32 presets per tour) | |
| Pattern | 5 | |
| Scan | 2 | |
| Power-off Memory | Yes | |
| Privacy Masking | 4 areas in the same view | |
| Idle Motion | Preset; auto pattern; auto tour; pan; progressive scan | |
| Function | ||
| Two-way Audio | Yes | |
| Network Protocol | HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x | |
| Region of Interest (RoI) | Yes | |
| Storage | Micro SD card | |
| Micro SD Card (Max.) | 512 GB | |
| Interoperability | ONVIF; CGI; Dahua SDK | |
| Browser | IE: IE8 and later Chrome: 42 and earlier Firefox: 42 and earlier |
|
| User/Host | Up to 20 (total bandwidth: 64 MB) | |
| Security | Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access | |
| User Management | Up to 20 users; supports multi-level user permissions (2 levels): management group and user group | |
| Malfunction Detection | Network disconnection detection; IP conflict detection; memory card state detection; memory space detection | |
| PIP | Yes (Intelligence automatically turns off when PIP is on) | |
| Intelligence | ||
| Heat Detection | Yes | |
| Cold/Hot Spot Trace | Yes | |
| IVS (Perimeter Protection) | Yes. Supports tripwire and intrusion. | |
| Target Distinction | Human/Vehicle Classification | |
| Port | ||
| Analog Output | 1 × CVBS output; BNC port | |
| Network Port | 1 × RJ-45 (10/100 Base-T) | |
| Alarm Input | 7 | |
| Alarm Output | 2 | |
| Audio Input | 1 | |
| Audio Output | 1 | |
| RS-485 | 1 | |
| Power | ||
| Power Supply | 36 VDC ± 50%, Hi-PoE | |
| Power Consumption | Basic: ≤21 W (36 VDC); 16 W (PoE) Max: ≤40 W (36 VDC); 41 W (PoE) | |
| Environment | ||
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) | |
| Operating Humidity | ≤95% | |
| Storage Temperature | –30 °C to +70 °C (–22 °F to +158 °F) | |
| Physical Characteristics | ||
| Protection | IP66 | |
| Reliability | Surge protection: 6 kV Air discharge: 15 kV Contact discharge: 8 kV |
|
| Structure | ||
| Product Dimensions | Φ240 mm × 382 mm (Φ9.45' × 15.04') | |
| Packaging Dimensions | 319 mm × 319 mm × 521 mm (12.56' × 12.56' × 20.51') (L × W × H) | |
| Net Weight | ≤8 kg (17.64 lb) | |
| Gross Weight | ≤10 kg (22.05 lb) | |
| Heat Detection Distance | ||
| Focal Length | Max. Distance | |
| 13 mm | 780 m (2,559.06 ft) | |
| 19 mm | 1,140 m (3,740.16 ft) | |
| 25 mm | 1,500 m (4,921.26 ft) | |
| 35 mm | 2,100 m (6,889.76 ft) | |
| 50 mm | 3,000 m (9,842.52 ft) | |
| Note: The table displays the measured distances obtained from using the target size 2 m × 2 m for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%. The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more. | ||
| Perimeter Protection Distance | ||
| Focal Length | Distance (Human) | Distance (Vehicle) |
| 13 mm | 91 m (298.56 ft) | 273 m (895.67 ft) |
| 19 mm | 133 m (436.35 ft) | 399 m (1,309.06 ft) |
| 25 mm | 175 m (574.15 ft) | 525 m (1,722.44 ft) |
| 35 mm | 245 m (803.81 ft) | 735 m (2,411.42 ft) |
| 50 mm | 350 m (1,148.29 ft) | 1,050 m (3,444.88 ft) |
| Note: The table displays the optimal distance obtained from using the target sizes 1.8 m × 0.5 m (human) and 4 m × 1.4 m (vehicle) for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%. The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more. |
| Marca | Dahua |
|---|---|
| MPN: | DHI-TPC-SD5441 |
