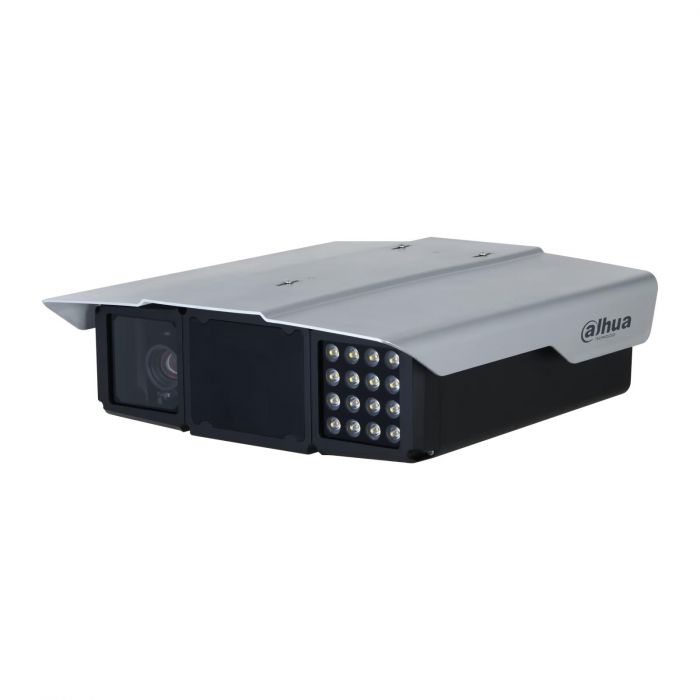

Dahua DHI-ITC1652-SU2F-PQE-C2R1-LZF1640 - cámara de tráfico con ia all in one 16 megapixeles/ lectura placas alta velocidad 5 to 300 km/ radar integrado/ funciona baja iluminación/ sensor gs-cmos/ lente mm40 mm/ ir 850 nm/
Precio especial $469,223.00 IVA incluido + Envio $150 MXN
Antes $544,299.00
Disponible 13 Pzas
Antes $544,299.00
Disponible 13 Pzas
sku: DHI-ITC1652-SU2F-PQE-C2R1-LZF1640
pub
MX0000102750
ITC1652-SU2F-GQE-C2R1-LZF1640
16MP All-in-one IR AI Traffic Camera
> GS-CMOS image sensor.
> 5320 × 3032@30 fps.
> Video compression standards: H.265, H.264M, H.264H and MJPEG.
> Works in poor lighting and does not smear.
> High-speed capture.
> A camera, illuminator, radar and more combined in one.
> IP66.
> 4G mobile network module.
| Camera | |
| Image Sensor | 1.1' GS-CMOS |
| Shutter Mode | Single shutter; Double shutters; Three shutters |
| Electronic Shutter Speed | Auto/Manual 1/50 s–1/100,000 s |
| Noise Reduction | 3D NR |
| S/N | 48 dB |
| WDR | 120 dB |
| Minimum intensity | 0.001 lux |
| Day/Night | Supports ICR auto switch: IR cut-o filter (IRCF) with the polarizing filter is used during the daytime, and switches to the IR transmitting filter at night |
| Illuminator | |
| Illuminator Number | 16 |
| Illumination Distance | 23 m–50 m (75.46 ft–164.04 ft) (adjustable brightness) |
| Lane Coverage | Center mount: 5 lanes Side mount: 4 lanes |
| Radar | |
| Central Frequency | 24.05 GHz–24.25 GHz |
| Speed Measurement Accuracy | ±2 km/h |
| Speed Measurement Range | 5 km/h–300 km/h |
| Target Detection | Up to 64 |
| Certification | OIML R91 |
| Lens | |
| Lens Type | Motorized vari-focal |
| Focal Length | 16 mm–40 mm |
| Max. Aperture | F1.4 |
| Aperture Type | P iris |
| Field of View | Horizontal: 21.4°–50.6° Vertical: 12.3°–28.9° Diagonal: 24.4°–58° |
| Function | |
| Trigger Mode | Video trigger/Radar trigger |
| OSD Overlay | Time, location, lane (number/direction), plate (number/color), and more. |
| Alarm Event | Storage full; storage error; external alarm; no storage card; license plate blocklist; illegal access; network disconnection; IP conflict |
| Automatic Network Replenishment (ANR) | Platform, FTP (TF card is required) |
| Power Transmission | 4G: Power class3: 23 dBm ± 2 dB |
| 4G | Yes operating frequency band: LTE FDD: Band 1,3,5,7,8,20,28 LTE TDD: Band 38,40,41 WCDMA/HSPA+: Band 1,5,8 GSM/GPRS/EDGE: 850/900/1800MHz |
| Auto Registration | Yes |
| Intelligence | |
| Target Detection | Motor vehicle; motorcycle |
| Face Detection | Detects the driver and front-seat passenger of motor vehicles, and motorcycle drivers; extracts face images |
| ANPR | Adopts developed algorithms to recognize license plate numbers and letters |
| Vehicle Type Recognition | Vehicle head: SUV, Large bus, sedan, light truck, pickup, heavy truck, medium truck, van, medium bus, MPV Vehicle tail: SUV, large bus, sedan, light truck, pickup, heavy truck, medium truck, van |
| Vehicle Color Recognition | White, pink, black, red, yellow, gray, blue, green, dark orange, purple, brown, and silver gray |
| Vehicle logo | Vehicle head mode: Acura, Alfaromeo, Ashokleyland, Astonmartin, Audi, Baic, Bently, Benz, BMW, Buick, BYD, Cadillac, Chery, Chevrolet, Chrysler, Citroen, Dacia, Daihatsu, Datsun, Dodge, DS, Ferrari, Fiat, Force, Ford, Foton, Geely, GMC, Greatwall, Hino, Honda, Hyundai, Infiniti, Isuzu, Iveco, Jac, Jaguar, Jeep, Kia, Kinglong, Land, Lexus, Lifan, Lincoln, Mahindra, MAN, Maserati, Mazda, Mercury, MG, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Rollsroyce, Saab, Scania, Seat, Skoda, Smart, Subaru, Suzuki, Tata, Tesla, Toyota, UD, Volkswagen, Volvo |
| Motor Vehicle Violation Snapshot | ANPR mode: Wrong-way driving, overspeed, driving slow, crossing the solid white line, crossing the solid yellow line, illegal lane change, not wearing seatbelt, calling while driving, smoking while driving E-Police mode: Running a red light, overspeed, wrong-way driving, crossing the solid white line, crossing the solid yellow line, disobeying the direction arrow, illegal left turn, illegal right turn, illegal U-turn (not supported by side-mounted cameras), and crossing the stop line |
| Motorcycle vehicle Violation Capture | Captures traffic violations including carrying passenger, not wearing helmet, and wrong-way driving |
| Traffic Flow Detection | Generates statistics on vehicle flow, queue length, average speed, lane occupancy, and more |
| Traffic Event | Detects parking violations of motor vehicles, wrong-way driving, and traffic congestion |
| Video | |
| Video Compression | H.265; H.264M; H.264H; MJPEG |
| Video Resolution | 5320 (H) × 3032 (V) |
| Video Frame Rate | 50Hz: Maximum 25 fps; default main stream (4096 × 2160@12.5fps), sub stream (1600 × 1200@12.5 fps) 30Hz: Maximum 30 fps; default main stream (4096 × 2160@15 fps), sub stream (1600 × 1200@15 fps) |
| Video Bit Rate | H.264: 32 kbps–32768 kbps H.265: 32 kbps–32768 kbps MJPEG: 512 kbps–32768 kbps |
| Bit Rate Control | CBR; VBR |
| White Balance | Auto/night/custom color temperature |
| Edge Enhancement | Yes |
| HLC | Yes |
| BLC | Yes |
| Bad Pixel Correction | Yes |
| Gain Scope | 0–100 |
| Image | |
| Composite Image | Supports combining up to 4 images into a composite image |
| Image Resolution | 5320 (H) × 3032 (V) (OSD black strip excluded) |
| Image Encoding Format | JPEG |
| Image Tampering Prevention | Watermark and verification are available for videos and images |
| Network | |
| Network Port | 1 × RJ-45 Ethernet port, 10/100/1000 M network transmission |
| SDK and API | Yes |
| Security | Authorized username and password, MAC address binding, HTTPS encryption, and network access control |
| Protocol | IPv4; IPv6; HTTP; TCP; IP; UDP; NTP; DHCP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T) |
| Browser | IE: IE 9–IE 11 Chrome: Chrome 41 and earlier Firefox: Firefox 49 and earlier Win10 needs to open the browser with administrator rights |
| Positioning | GPS |
| Time Synchronization | NTP; GPS |
| Port | |
| Frequency Source Sync | 1, supports synchronizing the camera with the mains electricity |
| Peripheral Light | 5, optocoupler signal output (can be configured as flashing light or LED strobe sync output port, frequency adjustable) |
| RS-485 | 1, connects to devices such as signal detector, strobe, continuous light, and all-in-one illuminator |
| Alarm Output | 1 (can be configured as an alarm output port) |
| Alarm In | 1 |
| General | |
| Power Supply | 100–240 VAC, 50 Hz/60 Hz |
| Power Consumption | ≤55 W |
| Operating Temperature | −40 °C to +65 °C (−40 °F to +149 °F) |
| Storage Temperature | −40 °C to +70 °C (−40 °F to +154 °F) |
| Operating Humidity | 10%-90% (RH) |
| Storage Humidity | 10%-90% (RH) |
| Product Dimensions | 435.4 mm × 416.0 mm × 173.8 mm (17.14 × 16.38 × 6.84 ) (L × W × H) |
| Certifications | CE LVD: EN62368 CE EMC: EN55032; EN55035; EN61000-3-2; EN61000-3-3 CE RED: EN301511; EN301908; EN300440; EN62311; EN301489; EN303413 IP66 |
| Net Weight | 9.3 kg (20.50 lb) |
| Gross Weight | 14.3 kg (31.53 lb) |
| Installation | Center mount; Side mount |
| Marca | Dahua |
|---|---|
| MPN: | DHI-ITC1652-SU2F-PQE-C2R1-LZF1640 |
