Dahua DH-CS4220-16GT-190 switch poe de 16 puertos gigabit con inteligente, puerto rojo 90w, 190w totales, 2 sfp, watchdog, switching 40 gbps y protección avanzada contra descargas. plataforma dolynk care/
Precio especial $7,191.00 IVA incluido + Envio $150 MXN
Antes $8,342.00
Disponible 32 Pzas
Antes $8,342.00
Disponible 32 Pzas
sku: DH-CS4220-16GT-190
pub
MX0000102489
CS4220-16GT-190

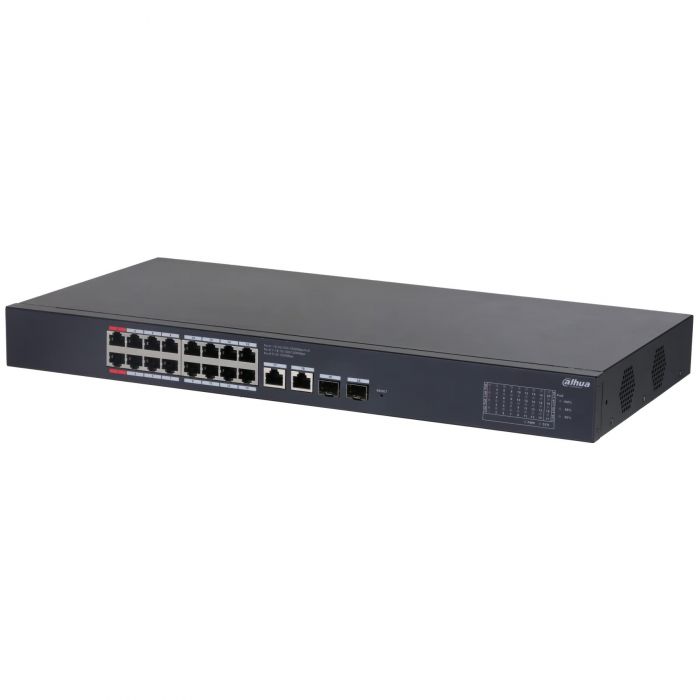

20-Port Cloud Managed Desktop Gigabit Switch with 16-Port PoE
> Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z standards.
> Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards.
> Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
> A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.
> Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards.
> Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
> A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.
| Hardware | |
| Included Power Adapter | Yes |
| PoE | Yes |
| Ethernet Port | 16 |
| Ethernet Port Speed | 10/100/1000 Mbps |
| Optical Port Speed | 1000 Mbps |
| Ethernet Port Uplink Speed | 10/100/1000 Mbps |
| Optical Port Uplink Speed | 1 Gbps |
| Description of Function Slots | Port 1-16: 16 × RJ-45 10/100/1000 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 19-20: 2 × SFP 1000 Mbps (uplink) |
| Reset Button | 1 |
| Power Supply | Built-in power supply: 100-240 VDC, 47-63 Hz, max 4 A |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Consumption | Idling: ≤8.3 W ; Full load: 212 W |
| Performance | |
| Layer | Layer 2 |
| Management Type | Yes |
| Smart Managed Switch | Yes |
| MTBF | 86.94 years |
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.76 Mpps |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 15K Byte |
| MAC Table Size | 8K |
| VLAN Number | 32 |
| Communication Standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z |
| Feature | |
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
| PoE Power | Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 190 W |
| PoE Power Consumption Management | Yes |
| PoE Pin Assignment | 1,2,4,5(V+),3,6,7,8(V-) |
| Long Distance PoE Transmission | Yes |
| Spanning Tree Protocol | STP/RSTP |
| VLAN Function | Port-based VLAN |
| IEEE 802.3x Flow Control | Yes |
| DHCP Function | DHCP Client |
| Equipment Management | Web management; App management |
| General | |
| Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
| Lighting Protection | Common mode: 4 kV; Differential mode: 2 kV |
| Net Weight | 2.32 kg (5.10 lb) |
| Gross Weight | 2.97 kg (6.53 lb) |
| Product Dimensions | 440 mm × 220 mm × 44 mm (17.32' × 8.66' × 1.73') (L × W × H) |
| Packaging Dimensions | 540 mm × 342 mm × 90 mm (21.26' × 13.46' × 3.54') (L × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; rack mount |
| Marca | Dahua |
|---|---|
| MPN: | DH-CS4220-16GT-190 |
