Belden DAUP 009 1000 cat6a 4pr23 uutp cmr reel wht
Antes $23,826.00
Disponible 1 Pzas
DAUP

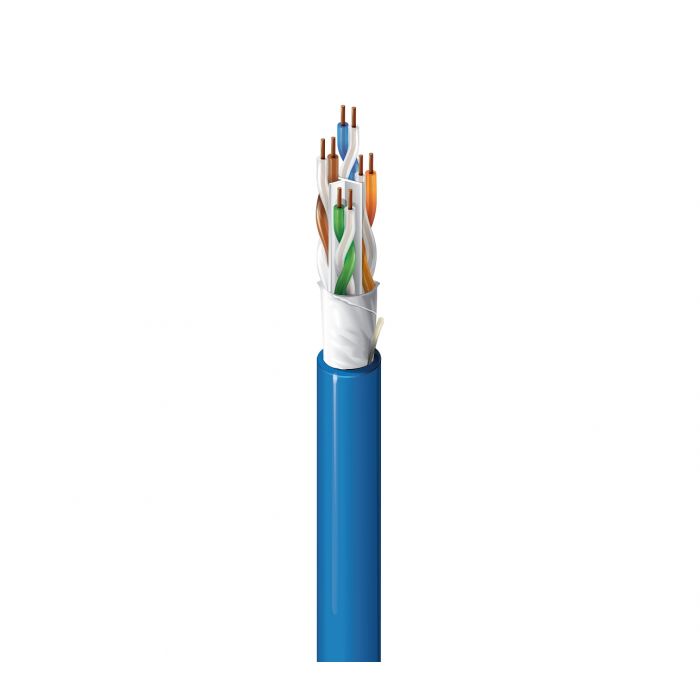

Category 6A Cable, 4 Pair, U/UTP, CMP
Category 6A Premise Horizontal Cable, 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest® PVC-LS Jacket
|
Suitable Applications |
Premise Horizontal Cable, Ethernet 10GBASE-T |
|---|
| Size | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 23 AWG | Solid | BC - Bare Copper | 4 |
| Material | Color Code |
|---|---|
| FEP - Fluorinated Ethylene Propylene | White & Blue, White & Orange, White & Green, White & Brown |
| Separator | Material | Material Trade Name | Nom. Diameter | Ripcord |
|---|---|---|---|---|
| Center Member (Patented X-Spline®), EquiBlock™ Barrier Technology | PVC - Polyvinyl Chloride | Flamarrest® | 0.250 in (6.35 mm) | Yes |
|
Overall Cable Diameter (Nominal) |
0.250 in (6.35 mm) |
|---|
| Max. Conductor DCR | Max. Capacitance Unbalance |
|---|---|
| 82 Ohm/km (25 Ohm/1000ft) | 45 pF/100m |
| Frequency | Max. Delay | Max. Delay Skew | Nom. Velocity of Prop. |
|---|---|---|---|
| 100 MHz | 537.6 ns/100m | 45 ns/100m | 69% |
| UL Voltage Rating |
|---|
| 300 V (CMP) |
| UL Temperature | Operating | Storage |
|---|---|---|
| 75°C | -20°C To +75°C | -20°C To +75°C |
| Stationary Min. |
|---|
| 1 in (25 mm) |
|
Max. Pull Tension |
25 lbs (11 kg) |
|---|---|
|
Bulk Cable Weight |
34 lbs/1000ft (51 kg/km) |
|
Environmental Suitability |
Plenum, Indoor |
|---|---|
|
Flammability / Reaction to Fire |
NFPA 262, UL 910 (Plenum), FT6 |
|
NEC / UL Compliance |
Article 800 |
|
CEC / C(UL) Compliance |
CMP |
|
ICEA Compliance |
S-116-732 |
|
IEEE Compliance |
IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
|
NEMA Compliance |
ANSI/NEMA WC-66 |
|
Data Category |
Category 6A |
|
TIA/EIA Compliance |
ANSI/TIA-568.2-D Category 6A |
|
Third Party Performance Verification |
Channel/Category 6A |
|
ISO/IEC Compliance |
ISO/IEC 11801-1, IEC 61156-5 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Non-Plenum Number |
DAUR |
|
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. |
|---|
|
Update and Revision |
Revision Number: 0.88 Revision Date: 09-24-2024 |
|---|
| Item # | Color | Putup Type | Length |
|---|---|---|---|
| DAUP 0101000 | Black | Reel | 1,000 ft |
| DAUP D151000 | Blue | Reel | 1,000 ft |
| DAUP 0081000 | Gray | Reel | 1,000 ft |
| DAUP 0051000 | Green, Dark | Reel | 1,000 ft |
| DAUP 0031000 | Orange | Reel | 1,000 ft |
| DAUP 0021000 | Red | Reel | 1,000 ft |
| DAUP 0091000 | White | Reel | 1,000 ft |
| DAUP 0041000 | Yellow | Reel | 1,000 ft |
| Marca | Belden |
|---|---|
| MPN: | DAUP 009 1000 |
