Eaton 9PX3K3UN no break on line 9px 3kva 3000va/3000w con tarjeta de red / 208v voltaje entrada-salida conector entrada l6-30p contactos salida (2) l6-20r l6-30r

Precio especial $48,876.00 IVA incluido + Envio $150 MXN
Antes $56,696.00
Disponible 0 Pzas
Agotado
pub
MX0000102272
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo

9PX3K3UN

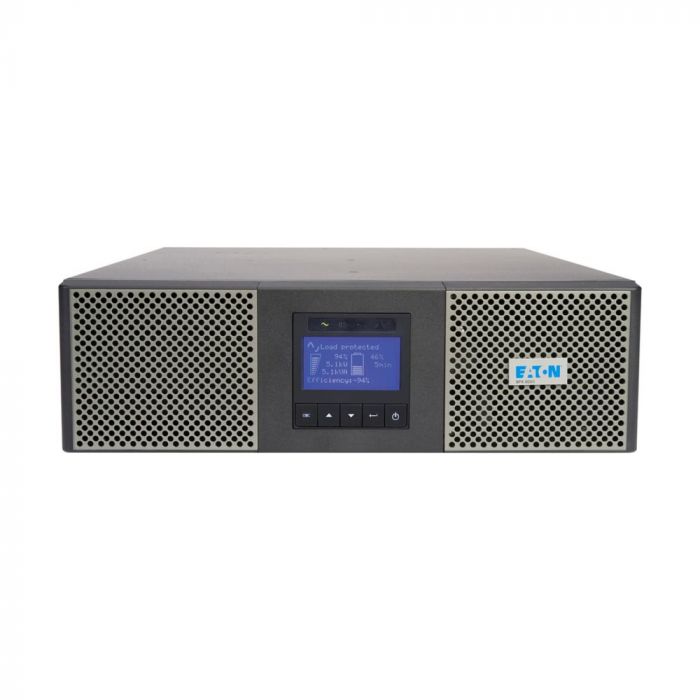

Eaton 9PX UPS, 3U, 3000 VA, 3000 W, L6-30P input, Outputs: (2) L6-20R, (2) L6-30R, 208V

General specifications

Product Name Eaton 9PX UPS
Catalog Number 9PX3K3UN
UPC 743172082565
Product Length/Depth 28.4 in
Product Height 5.1 in
Product Width 17.3 in
Product Weight 106 lb
Warranty 3 year limited
Compliances CISPR22 Class A / FCC part 15 Class A
CE Marked
Certifications cULus Listed
NOM
ENERGY STAR certified

Battery

Battery management ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
Battery replacement Hot-swappable internal batteries and extended battery modules (EBMs)
Battery type Sealed, lead-acid
Extended battery capability Add up to 4 extended battery modules (EBM). Part number 9PXEBM180RT

Electrical output

Receptacle (2) L6-20R, (2) L6-30R
Topology Online/Double-conversion
Wattage 3000 W
VA rating 3000 VA
Output waveform True sine wave
Voltage 208 V
Output power factor 1
Output nominal voltage 208V default (200/208/220/230/240/250V)
Output voltage range ±1% steady-state
Output frequency 50/60 Hz

Electrical input

Input connection L6-30P
Input cord length 6 ft
Input nominal voltage 208V default (200/208/220/230/240V)
Input frequency range 60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz
Input power factor >0.99 typical

Communications

Expansion slots (1) Mini-Slot (MS) expansion port with Gigabit Network Card (NETWORK-M2) included
Ethernet interface Yes
Includes network card Yes
Software compatibility Intelligent Power Software Suite
User interface Graphical display, 5-button programmable menu

Environmental

Altitude <1000m for nominal power, 10% power degrading every 1000m (up to 3000m)
BTU Rating Online: 770, Battery: 1136
Noise level <45 dB at 1 meter
Relative humidity 0-95% non-condensing
Temperature range 0° to 40°C (32° to 104°F)

Additional specifications

Special features Gigabit Network Card (NETWORK-M2) included
Form factor Rack/tower
Rack size 3U
Rack mounting kit Yes
Efficiency 92%
Package contents
  • 9PX3K3U 3 kVA UPS
  • Gigabit Network Card (Network-M2)
  • 4-post rail kit (9RK)
  • User manual
  • Quick start guide
  • Tower pedestals
  • Intelligent Power Software Suite CD
  • RS-232 serial cable
  • USB cable
  • Cable gland for hardwire connection
  • Phillips head screw driver
Internal bypass Yes

Warranty and support

Standard factory warranty
  • 3-YEAR FACTORY WARRANTY
  • - 3 years
  • - Parts, electronics and batteries coverage
  • - Standard ground shipping
  • - Technical support
Extended service plans
  • ADVANCED DEPOT EXCHANGE
  • - 5-year depot repair: 9SW5Y-3000UC
  • - Expedited parts coverage for 5 years
  • - Parts, electronics and UPS batteries coverage
  • - Next business day shipping
  • - Technical support
  • 5-YEAR ON-SITE PLAN: WFLN75XX-6009UC
  • - On-site parts and labor coverage for years 5
  • - Parts, electronics and UPS batteries coverage
  • - 24x7 on-site labor coverage, next-day response
  • - Next-day shipping
  • - Technical support
Más información
MarcaEaton
MPN:9PX3K3UN
