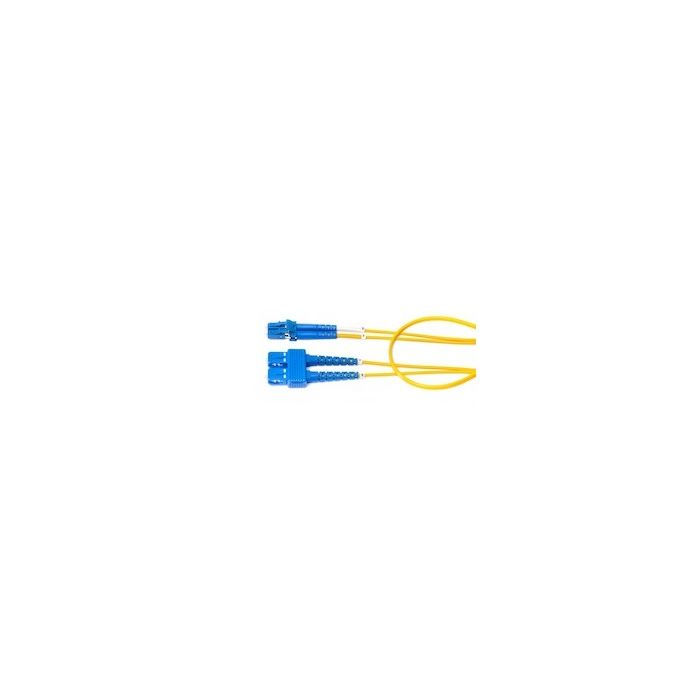

Belden FPSLDSD005M fo patch cord os2 lc-du sc 5m ofnr yell
Precio especial $1,317.00 IVA incluido + Envio $150 MXN
Antes $1,528.00
Disponible 22 Pzas
Antes $1,528.00
Disponible 22 Pzas
sku: FPSLDSD005M
pub
MX0000101923
FPSLDSD005M
FX PATCH CORD, OS2, LC DUPLEX - SC DUPLEX, 5 M, OFNR, DUPLEX ZIP 2.0 MM, A-TO-B, YELLOW JACKETbr
Product Overview
| Suitable Applications: | Data Center, LAN, Equipment Room, Telecommunication room, Workstation Area |
Fiber Specifications
| Fiber Type: | OS2 |
| Fiber Core Diameter: | 8.2/125 µm |
| Fiber Count: | 2 |
| Fiber Color Coding: | TIA-598-D |
Physical Specifications
Connectors
| Description | Type | Housing Material | Housing Color | Ferrule | Boot Material | Boot Color |
|---|---|---|---|---|---|---|
| Connector A (Inside End) | LC Duplex | Plastic | Blue | Zirconia Ceramic | Rubber | Blue |
| Connector B (Outside End) | SC Duplex | Plastic | Blue | Zirconia Ceramic | Rubber | Blue |
Assembly Cable
| Cable Nominal OD | Jacket Color |
|---|---|
| 2.0 mm x 4.0 mm | Yellow |
Measurement
| Overall Assembly Length | Packaging |
|---|---|
| 5 m (16.4 ft) | Individually packaged in a plastic bag |
Overall Length Tolerances
| Range | Tolerance |
|---|---|
| 0 to 2 meters | +0.2 / -0 meter |
| 2.1 to 4.9 meters | +0.3 / -0 meter |
| 5 to 40 meters | +0.4 / -0 meter |
| over 40 meters | +1.0% / -0% |
Armor Specifications
| Armor Type and Material: | No Armor |
Optical Characteristics
Polarity Identification:A-to-B / B-to-A
Fiber Connector Performance
| Description | Connector Type | Max. Insertion Loss | Min. Return Loss |
|---|---|---|---|
| Connector A (Inside End) | LC Duplex | 0.25 dB | 55 dB |
| Connector B (Outside End) | SC Duplex | 0.25 dB | 55 dB |
Mechanical Characteristics
| Min. Bend Radius During Installation: | 15x Cable OD |
| Min. Bend Radius During Operation: | 10x Cable OD |
Temperature Range
| Operating Temperature Range: | -40C to +75C |
| Storage Temperature Range: | -40C to +75C |
Standards and Compliance
| Environmental Suitability: | Indoor |
| Flammability / Reaction to Fire: | OFNR |
| UL Rating: | Riser |
| TIA/EIA Compliance: | TIA/EIA 568.3 |
| European Directive Compliance: | EU Directive 2011/65/EU (RoHS 2) |
| MII Order #39 (China RoHS): | EUP 50 |
| Other Standard Compliance(s): | ACMA |
Product Notes
| Related Parts: | DCX system, FX UHD Patch Panels, ECX Patch Panels, FX Patch cords, FX MPO Trunks, FX Multi-fiber Trunks |
History
| Marca | Belden |
|---|---|
| MPN: | FPSLDSD005M |
