Belden AX104601 kconn angled pp 48 2u - keyconnect patch panel port, blk (empty)
Precio especial $3,543.00 IVA incluido + Envio $150 MXN
Antes $4,110.00
Disponible 13 Pzas
Antes $4,110.00
Disponible 13 Pzas
sku: AX104601
pub
MX0000101913
KCONN Angled PP 48 2U
KeyConnect Angled Patch Panel, 48-port, 2U, Emptybr
Product Overview
Suitable Applications: | Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 2400 and 1200. |
Physical Characteristics (Overall)
Height: | 88.9 mm |
Width: | 482.600 mm |
Depth: | 189.230 mm |
Port Count: | 48 Port |
Front Connection: | Angled |
Packaging: | Individually packaged in a cardboard box. |
Weight: | 1.139 kg |
Connectors
Materials
Description | Material |
---|---|
Panel | Steel |
Construction and Dimensions
Max Capacity: | 48 connectors |
Temperature Range
Installation Temperature Range: | -10°C To +60°C |
Storage Temperature Range: | -40°C To +70°C |
Operating Temperature Range: | -10°C To +60°C |
Mechanical Characteristics
Footprint/Type: | KeyConnect |
Applicable Environmental and Other Programs
Environmental Space: | Indoor |
EU Directive 2011/65/EU (RoHS 2): | Yes |
MII Order #39 (China RoHS): | EUP 50 |
Flammability, LS0H, Toxicity Testing
Safety Listing: | ACA, Bi-national Standard Listed |
Related Part Numbers
Related Parts:Compatible with 10GX, CAT6+ and CAT5E KeyConnect Modular Jacks as well as KeyConnect Multimedia Modules.
Variants
Item # | Color | UPC |
---|---|---|
AX104601 | Black | 611589066976 |
Product Notes

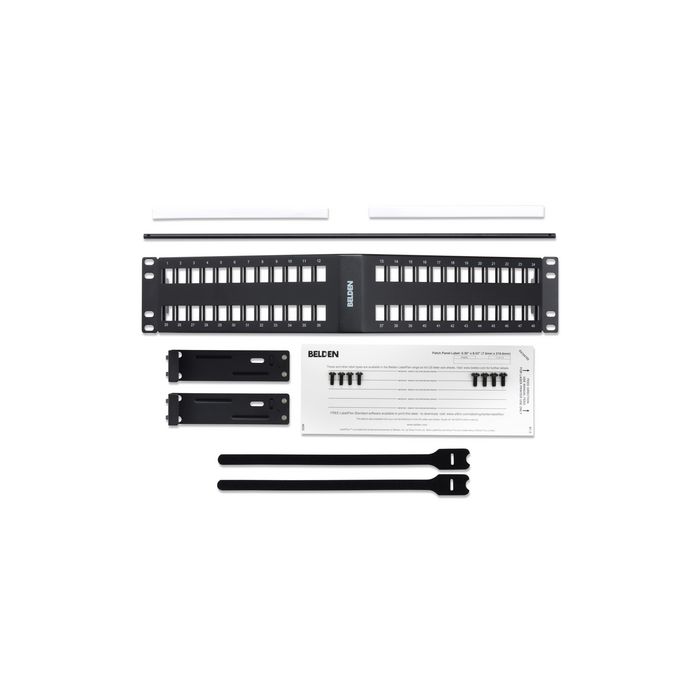

Included Parts: | 4 Screws (10x32); 4 Screws (12x24); 1 Printable LabelFlex Half-Sheet; 2 Label Holders; 2 Velcro Straps; 2 Rear Cable Management Bracket, 1 Cable Management Bar |
History
Marca | Belden |
---|---|
MPN: | AX104601 |
