Belden FFSX06SD fx ecx frame sm sd - singlemode sc duplex
Precio especial $1,441.00 IVA incluido + Envio $150 MXN
Antes $1,672.00
Disponible 7 Pzas
Antes $1,672.00
Disponible 7 Pzas
sku: FFSX06SD
pub
MX0000101907

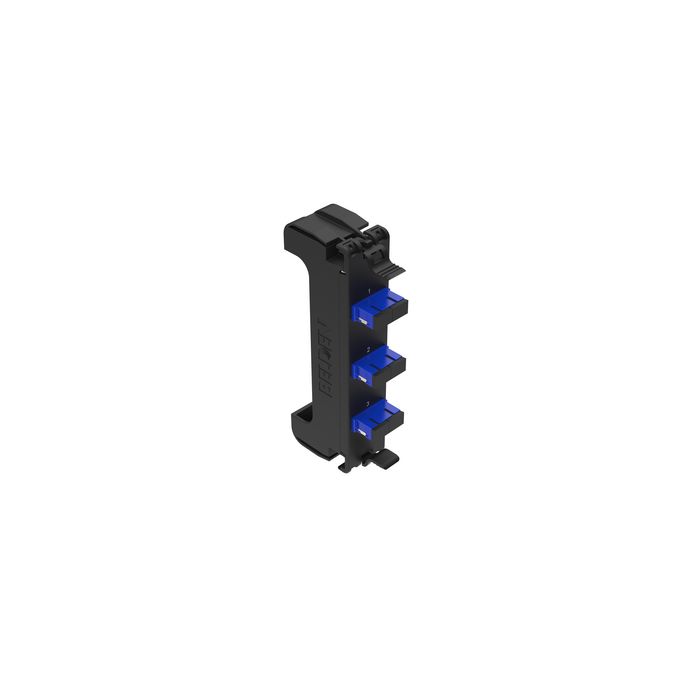

FX ECX Frame SM SD
FX ECX Frame Singlemode SC Duplex. Available in several port counts.br
Product Overview
| Environmental Space: | Indoor |
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
Fiber Cable Construction
| Fiber Type |
|---|
| OS2 |
| Weight: | 0.2 lbs |
| Height: | 1.3 in |
| Width: | 6.34 in |
| Length: | 2.890 in |
| Depth: | 1.39 in |
Physical Specifications
Max Capacity Table
| Quantity of Frames/Cassettes | Quantity of LC Duplex Connectors | |
|---|---|---|
| FX UHD Frames/Cassettes | 6 Fibers | 3 SC Duplex Ports |
Mechanical Characteristics
| Front Connection: | Static |
Temperature Range
| Operating Temperature Range: | -10 to 60°C |
| Storage Temperature Range: | -10 to 75°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Adapter Sleve | Zirconia-Ceramic | ||
| Front Connector Body | Plastic - UL94V-0 | Blue | SC-Duplex |
| Frame | Plastic - UL94V-0 | Black | |
| Frame Brace Support | Plastic - UL94V-0 | Black |
Standards
| MII Order #39 (China RoHS): | EUP 50 |
Related Part Numbers
Included Parts:Dust CapsRelated Parts:FX ECX Panels, FX Pigtails, FX Brilliance
Variants
| Item # | Color | Connector Type | Port Count |
|---|---|---|---|
| FFSX03SD | Blue | SC Duplex | 3 Port |
| FFSX06SD | Blue | SC Duplex | 6 Port |
| FFSX08SD | Blue | SC Duplex | 8 Port |
Product Notes
| Packaging: | Individually packaged in a plastic shell, Shipped in cardboard box (12/box) |
| Notes: | For additional information about this product, please contact our Technical Support group (ibdn.ts@belden.com) or your local sales representative. |
History
| Marca | Belden |
|---|---|
| MPN: | FFSX06SD |
