Belden 9451 010U1000 - audio cable, 1 pair 22 awg tc, shielded, riser
Precio especial $9,777.00 IVA incluido + Envio $150 MXN
Antes $11,341.00
Disponible 19 Pzas
Antes $11,341.00
Disponible 19 Pzas
sku: 9451 010U1000
pub
MX0000101898
9451

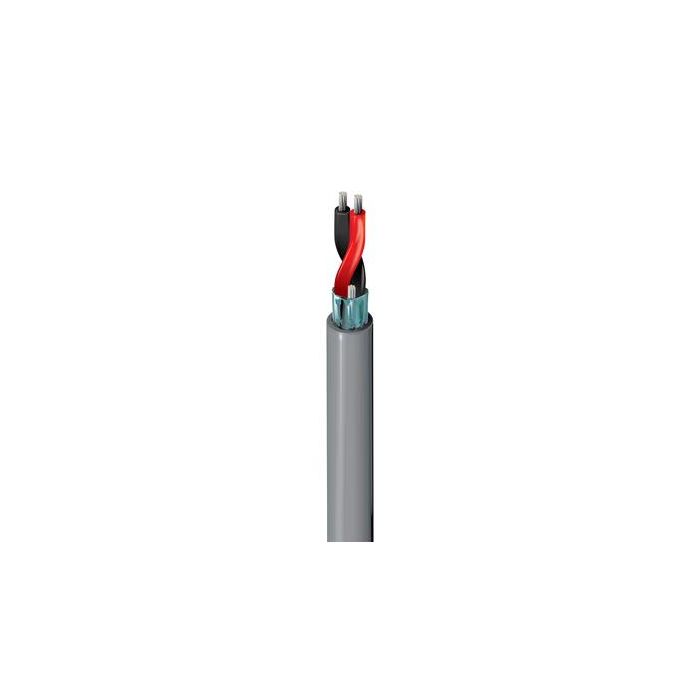

Audio Cable, 1 Pair 22 AWG stranded (7x30) tinned copper pair, polypropylene insulation, Beldfoil® shield, drain, Riser, PVC jacket.
Product Overview
| Suitable Applications: | Automatic Stripping Equipment; Low Voltage analog Signals (4-20mA, 0-10V, ...); Low Voltage Digital Control (24V, …); Line Level audio; Computer Communication; Panel Wiring |
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 1 | 22 AWG | 7x30 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | PP - Polypropylene | 0.009 in (0.23 mm) | 0.046 in (1.2 mm) | Black & Red |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type | Notes |
|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7x30) TC | Jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is inside foil shield. |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.020 in (0.51 mm) | 0.135 in (3.43 mm) |
| Overall Cable Diameter (Nominal): | 0.135 in (3.43 mm) |
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|
| Pair(s) | 14.1 Ohm/1000ft | 35 pF/ft (110 pF/m) | 67 pF/ft (220 pF/m) | 45 Ohm | 66% | 2.9 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CMR) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 60°C | -20°C to +75°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 1.4 in (36 mm) | 1.4 in (36 mm) |
| Max. Pull Tension: | 27 lbs (12 kg) |
| Bulk Cable Weight: | 14 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: | Indoor - Riser, Indoor, Aerial - When supported by messenger wire |
| Sustainability: | CA Prop 65 |
| Flammability / Reaction to Fire: | UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL Compliance: | Article 800, CMR |
| CEC / C(UL) Compliance: | CMR |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Plenum Number: | 9451P |
Product Notes
| Notes: | For cross-connect, use with 1814R (et. al.) Snake Cables. |
History
| Update and Revision: | Revision Number: 0.536 Revision Date: 02-15-2024 |
Part Numbers
Variants
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 9451 0101000 | Black | Reel | 1,000 ft | 612825252795 | |
| 9451 010U1000 | Black | UnReel | 1,000 ft | 612825425205 | |
| 9451 010N1000 | Black | Reel w/Small Barrel | 1,000 ft | 612825252771 | |
| 9451 010Z1000 | Black | ReelTuff Box | 1,000 ft | 612825252535 | |
| 9451 0105000 | Black | Reel | 5,000 ft | 612825252764 | C N |
| 9451 006U1000 | Blue, Light | UnReel | 1,000 ft | 612825425168 | |
| 9451 006Z1000 | Blue, Light | ReelTuff Box | 1,000 ft | 612825252672 | |
| 9451 0065000 | Blue, Light | Reel | 5,000 ft | 612825252641 | C N |
| 9451 001U1000 | Brown | UnReel | 1,000 ft | 612825425120 | |
| 9451 001Z1000 | Brown | ReelTuff Box | 1,000 ft | 612825252580 | |
| 9451 0015000 | Brown | Reel | 5,000 ft | 612825252542 | C N |
| 9451 008500 | Gray | Reel | 500 ft | 612825252733 | |
| 9451 008U500 | Gray | UnReel | 500 ft | 612825425182 | |
| 9451 008T1000 | Gray | Reel | 1,000 ft | 612825252702 | |
| 9451 008U1000 | Gray | UnReel | 1,000 ft | 612825252719 | |
| 9451 008N1000 | Gray | Reel w/Small Barrel | 1,000 ft | 612825252696 | |
| 9451 0081000 | Gray | Reel | 1,000 ft | ||
| 9451 008Z1000 | Gray | ReelTuff Box | 1,000 ft | 612825252757 | |
| 9451 0085000 | Gray | Reel | 5,000 ft | 612825252689 | C N |
| 9451 N3UU1000 | Green, Mil | UnReel | 1,000 ft | 612825425113 | |
| 9451 N3U5000 | Green, Mil | Reel | 5,000 ft | 612825252528 | C N |
| 9451 N3UZ1000 | Mil Green | ReelTuff Box | 1,000 ft | 612825438175 | |
| 9451 003U1000 | Orange | UnReel | 1,000 ft | 612825425144 | |
| 9451 003Z1000 | Orange | ReelTuff Box | 1,000 ft | 612825252634 | |
| 9451 0035000 | Orange | Reel | 5,000 ft | 612825252597 | C N |
| 9451 002U1000 | Red | UnReel | 1,000 ft | 612825425137 | |
| 9451 002N1000 | Red | Reel w/Small Barrel | 1,000 ft | 612825252573 | |
| 9451 002Z1000 | Red | ReelTuff Box | 1,000 ft | 612825252603 | |
| 9451 0025000 | Red | Reel | 5,000 ft | 612825252566 | C N |
| 9451 007U1000 | Violet | UnReel | 1,000 ft | 612825425175 | |
| 9451 007Z1000 | Violet | ReelTuff Box | 1,000 ft | 612825252726 | |
| 9451 0075000 | Violet | Reel | 5,000 ft | 612825252665 | C N |
| 9451 009U1000 | White | UnReel | 1,000 ft | 612825425199 | |
| 9451 009Z1000 | White | ReelTuff Box | 1,000 ft | 612825252788 | |
| 9451 0095000 | White | Reel | 5,000 ft | 612825252740 | C N |
| 9451 004U1000 | Yellow | UnReel | 1,000 ft | 612825425151 | |
| 9451 004N1000 | Yellow | Reel w/Small Barrel | 1,000 ft | 612825252627 | |
| 9451 004Z1000 | Yellow | ReelTuff Box | 1,000 ft | 612825252658 | |
| 9451 0045000 | Yellow | Reel | 5,000 ft | 612825252610 | C N |
| Marca | Belden |
|---|---|
| MPN: | 9451 010U1000 |
