Panduit G1X1BL6 panduct base wiring duct
Precio especial $263.00 IVA incluido + Envio $150 MXN
Antes $305.00
Disponible 25 Pzas
Antes $305.00
Disponible 25 Pzas
sku: G1X1BL6
pub
MX0000101871
G1X1BL6

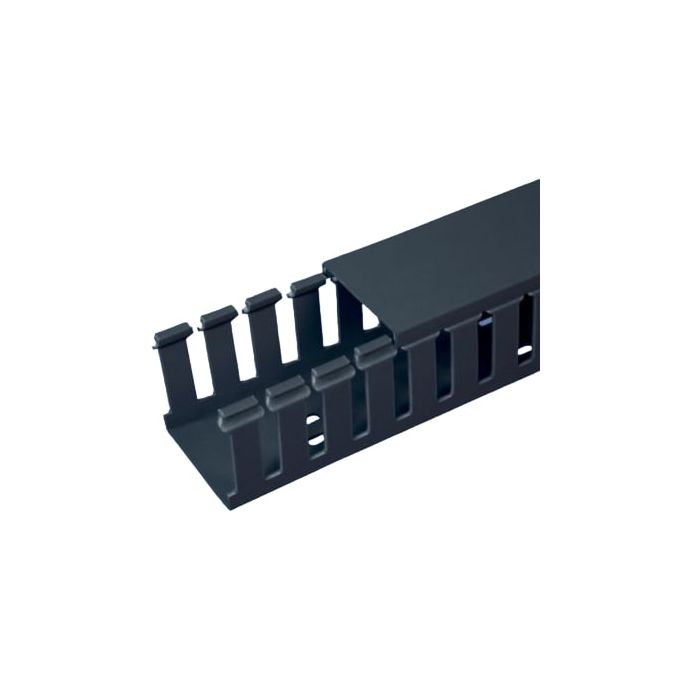

The G1X1BL6 Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. 1.0' x 1.0' (25.4 mm x 25.4 mm) and 6’ (1.8 m) long. Cover sold separately. Color Black.
Especificaciones
| Product Type | Base Wiring Duct |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Cover Part Number | C1BL6 |
| Flammability Rating | UL94 V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material Properties | Lead-Free |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Wiring Duct Type | G |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.25 |
| Overall Width (mm) | 32 |
| Overall Height (In.) | 1.12 |
| Overall Height (mm) | 28.4 |
| Slot Width (In.) | 0.31 |
| Slot Width (mm) | 7.9 |
| Sub Brand | Panduct® |
| Part Features | Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals. |
Detalles del empaque
| Std. Pkg. Qty. | 6 |
| Std. Pkg. Volume (cf) | 0.0461 |
| Std. Ctn. Qty. | 120 |
| Std. Ctn. Volume (cf) | 0.9214 |
| Marca | Panduit |
|---|---|
| MPN: | G1X1BL6 |
