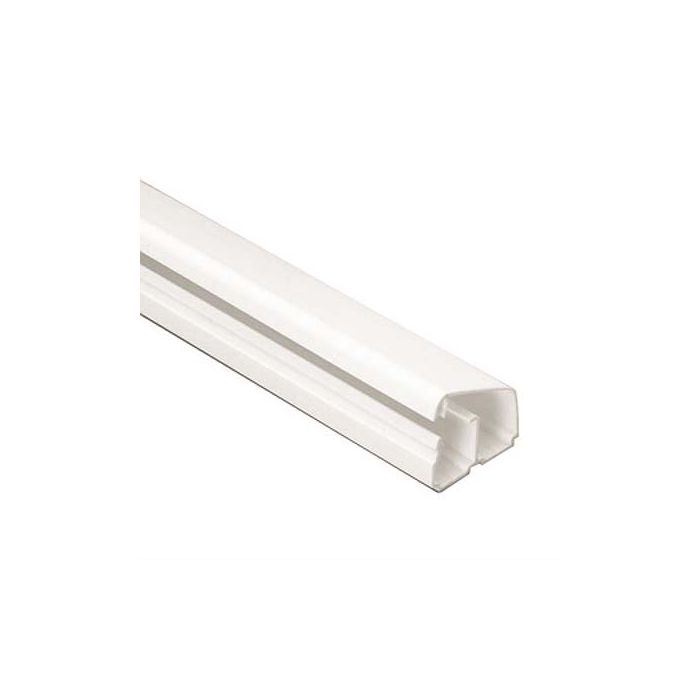

Panduit LD2P10IW8-A pan-way surface raceway channel
Precio especial $728.00 IVA incluido + Envio $150 MXN
Antes $844.00
Disponible 37 Pzas
Antes $844.00
Disponible 37 Pzas
sku: LD2P10IW8-A
pub
MX0000101865
LD2P10IW8-A
Two channel tamper resistant one-piece latching surface raceway. Supplied with pre-applied adhesive backed tape. Available in 8’ and 10’ lengths.
Especificaciones
| Product Type | Surface Raceway Channel |
| Fitting Type | Channel |
| For Use With | Panduit, Pan-Net Network Cabling Systems. |
| Raceway Type | Low Voltage |
| Mount Method | Adhesive |
| Overall Length (ft.) | 8 |
| Overall Length (m) | 2.4 |
| Overall Width (In.) | 1.52 |
| Overall Width (mm) | 38.6 |
| Overall Height (In.) | 0.86 |
| Overall Height (mm) | 21.8 |
| Internal Area (in²) | 0.93 |
| Internal Area (mm²) | 599.99 |
| Sub Brand | Pan-Way® |
| Standards Met | UL Listed 95425, UL Listed E116129 , RoHS Compliant. |
| Application | Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. |
| Part Features | Two-channel tamper-resistant one-piece latching surface raceway. 1.51 x 0.86 (39.0mm x 22.0mm). Factory applied adhesive backing speeds installation. Tamper resistant. Terminates using JBP1D, JBP2D, JBP2FS or JBP2S surface mount outlet box solutions. |
Detalles del empaque
| Std. Pkg. Qty. | 8 |
| Std. Pkg. Volume (cf) | 0.1067 |
| Std. Ctn. Qty. | 160 |
| Std. Ctn. Volume (cf) | 2.1348 |
| Marca | Panduit |
|---|---|
| MPN: | LD2P10IW8-A |
