Panduit CJSK688TGBL mini-com módulo blindado universal escudo integrado codificado categoría 6 rj45 8 posiciones cables negro -
Precio especial $307.00 IVA incluido + Envio $150 MXN
Antes $356.00
Disponible 50 Pzas
Antes $356.00
Disponible 50 Pzas
sku: CJSK688TGBL
pub
MX0000101861
CJSK688TGBL

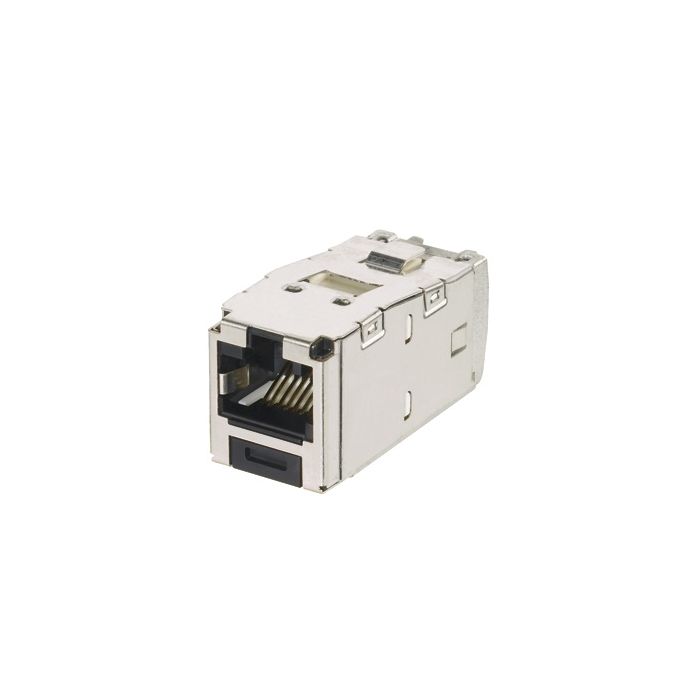

Keyed, Category 6, RJ45, 8-position, 8-wire universal shielded black module with integral shield. Black.
Especificaciones
| Product Type | Jack Module |
| Performance Level | Category 6 |
| Connector Type | Jack Module - Standard |
| Termination Style | TG Style |
| Body Material | Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com® |
| Wiring Scheme | T568A/T568B |
| Shield Type | Shielded (STP) |
| Sub Brand | Pan-Net® |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Overall Length (In.) | 1.51 |
| Overall Length (mm) | 38.4 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.7 |
| Overall Depth (In.) | 1.51 |
| Overall Depth (mm) | 38.4 |
| Overall Height (In.) | 0.74 |
| Overall Height (mm) | 18.8 |
Detalles del empaque
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0032 |
| Std. Ctn. Qty. | 50 |
| Std. Ctn. Volume (cf) | 0.1605 |
| Marca | Panduit |
|---|---|
| MPN: | CJSK688TGBL |
