Belden AX104014 cat5e kconn patch panel 48-p 2u black cat 5e pp 48 - keyconect panel, port,
Precio especial $7,952.00 IVA incluido + Envio $150 MXN
Antes $9,224.00
Disponible 3 Pzas
Antes $9,224.00
Disponible 3 Pzas
sku: AX104014
pub
MX0000101750
CAT 5E KCONN PP 48 2U
CAT 5E KCONN PP 48 2U - CAT 5E KeyConect Patch Panel, 48 Port, 2U
Item # | Color | UPC |
---|---|---|
AX104014 | Black | 611589005920 |
Product Overview | |
---|---|
Suitable Applications: | IBDN System 1200, TIA Category 5E, ISO Class D, 1000 BASE-T |
Physical Characteristics (Overall) | |
---|---|
Height: | 3.5 in |
Width: | 19.000 in |
Depth: | 1.3 in |
Port Count: | 48 Port |
Front Connection: | Flush |
Packaging: | Individually packaged in a cardboard box. |
Weight: | 2.500 lbs |
MaterialsVariants
Connectors | |
---|---|
Description | Material |
Panel | Steel |
Construction and Dimensions | |
Max Capacity: | 48 connectors (preloaded) |
Electrical Characteristics | |
Dielectric Strength: | 1,000 V RMS @ 60 Hz for 1 minute |
Current Rating: | 1.500 A |
Insulation Resistance: | 500 M-Ohm Minimum |
Termination Resistance: | 2.5 mOhm |
Temperature Range | |
Installation Temperature Range: | -10°C To +60°C |
Storage Temperature Range: | -40°C To +70°C |
Operating Temperature Range: | -10°C To +60°C |
Mechanical Characteristics | |
Footprint/Type: | KeyConnect |
Tool Compatibility: | Gigaflex Connecting Tool (AX100749) |
Plug /Jack Compatibility: | RJ45 |
Termination Type: | Universal T568A/B |
Standards | |
Data Category: | Category 5e |
TIA/EIA Compliance: | ISO/IEC 11801:2002 Ed.2 |
Other Standards: | FCC Part 68, Subpart F, IEC 60603-7 |
Third Party Performance Verification: | ETL - Verified Category 5e |
Applicable Environmental and Other Programs | |
Environmental Space: | Indoor |
EU Directive 2011/65/EU (RoHS 2): | Yes |
MII Order #39 (China RoHS): | EUP 50 |
Flammability, LS0H, Toxicity Testing | |
Safety Listing: | ACA, Bi-national Standard Listed |
Related Part Numbers | |
Related Parts: | CAT5E Modular Cords |
Product Notes | |

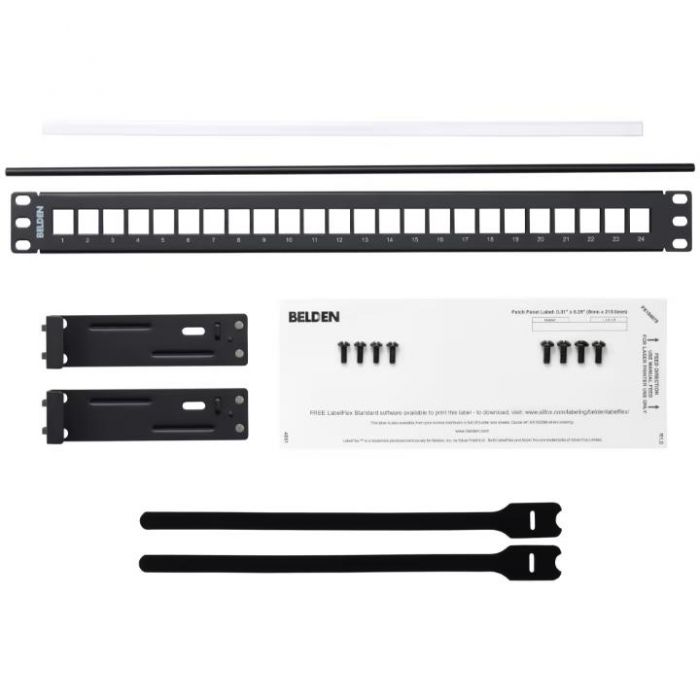

Included Parts: | 4 Screws (10x32); 4 Screws (12x24); 1 Label Holder; 1 Printable LabelFlex Half-Sheet; 2 Velcro Straps; 2 Rear Cable Management Bracket; 1 Installation Guide; 1 kit Termination Bar |
Notes: | For proper installation refer to Installation Guide PX104691 included with the product |
History |
Marca | Belden |
---|---|
MPN: | AX104014 |
