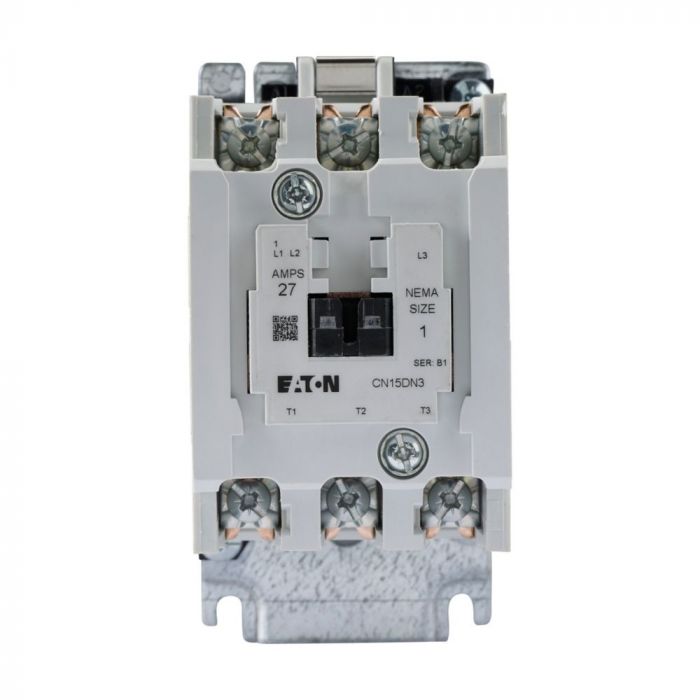

Eaton CN15DN3BB contactores nema en gabinete no reversibles
Precio especial $3,384.00 IVA incluido + Envio $150 MXN
Antes $3,925.00
Disponible 3 Pzas
Antes $3,925.00
Disponible 3 Pzas
sku: CN15DN3BB
pub
MX0000101719
CN15DN3BB
Eaton Freedom NEMA motor control contactor, NEMA Freedom Series Non-Reversing contactor, 2 hp at 115V, 3 hp at 230V, 7-1/2 hp at 208,240V, 10 hp at 480,600V maximum horsepower, 240V/60 Hz or 220V/50 Hz coil voltage, 27A, Three-pole, Size 1
General specifications |
|
| Product Name | Eaton Freedom NEMA motor control contactor |
| Catalog Number | CN15DN3BB |
| UPC | 782113981420 |
| Product Length/Depth | 4.44 in |
| Product Height | 5.05 in |
| Product Width | 2.56 in |
| Product Weight | 3.1 lb |
| Certifications | CSA Certified UL Listed |
| Catalog Notes | Common Control |
Especificaciones del producto |
|
| HP rating - max | 2 hp at 115V, 3 hp at 230V, 7-1/2 hp at 208,240V, 10 hp at 480,600V |
| Phase | Single-phase, three-phase |
| Number of Poles | Three-pole |
| Amperage Rating | 27A |
| Size | 1 |
| Marca | Eaton |
|---|---|
| MPN: | CN15DN3BB |
