Eaton GD3030 series c complete molded case circuit breaker, g-frame, gd, fixed thermal, magnetic trip type, three-pole, 30 a, 480 vac, 125/250 vdc, 65 kaic at 240 22 50/60 hz
Precio especial $3,862.00 IVA incluido + Envio $150 MXN
Antes $4,480.00
Disponible 0 Pzas
Antes $4,480.00
Disponible 0 Pzas
Agotado
pub
MX0000101717
GD3030

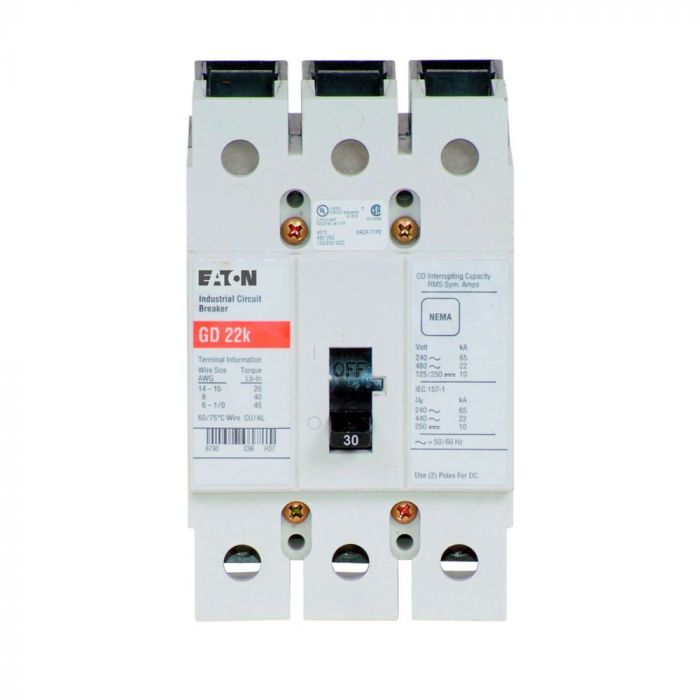

Eaton Series C complete molded case circuit breaker, G-frame, GD, Complete breaker, Fixed thermal, fixed magnetic trip type, Three-pole, 30 A, 480 Vac, 125/250 Vdc, 65 kAIC at 240 Vac, 22 kAIC at 480 Vac, 50/60 Hz
General specifications |
|
| Product Name | Eaton Series C complete molded case circuit breaker |
| Catalog Number | GD3030 |
| UPC | 786679231067 |
| Product Length/Depth | 2.63 in |
| Product Height | 4.88 in |
| Product Width | 3 in |
| Product Weight | 2 lb |
| Certifications | UL Listed |
Especificaciones del producto |
|
| Amperage Rating | 30 A |
| Voltage rating | 480 Vac, 125/250 Vdc |
| Trip Type | Fixed thermal, fixed magnetic |
| Circuit breaker type | GD |
| Circuit breaker frame type | Complete breaker |
| Series | Series C |
| Frame | G |
| Frequency rating | 50/60 Hz |
| Interrupt rating | 65 kAIC at 240 Vac 22 kAIC at 480 Vac |
| Number of poles | Three-pole |
| Marca | Eaton |
|---|---|
| MPN: | GD3030 |
