Eaton JGH3250FAG series g complete molded case circuit breaker, jg frame, 250 a, three-pole, 600v, 100 kaic at 240v, 70 415v, 65 480v, 25 line/load standard w/ metric mounting hardware, fixed thermal, adj. magnetic
Precio especial $8,055.00 IVA incluido + Envio $150 MXN
Antes $9,344.00
Disponible 2 Pzas
Antes $9,344.00
Disponible 2 Pzas
sku: JGH3250FAG
pub
MX0000101710
JGH3250FAG

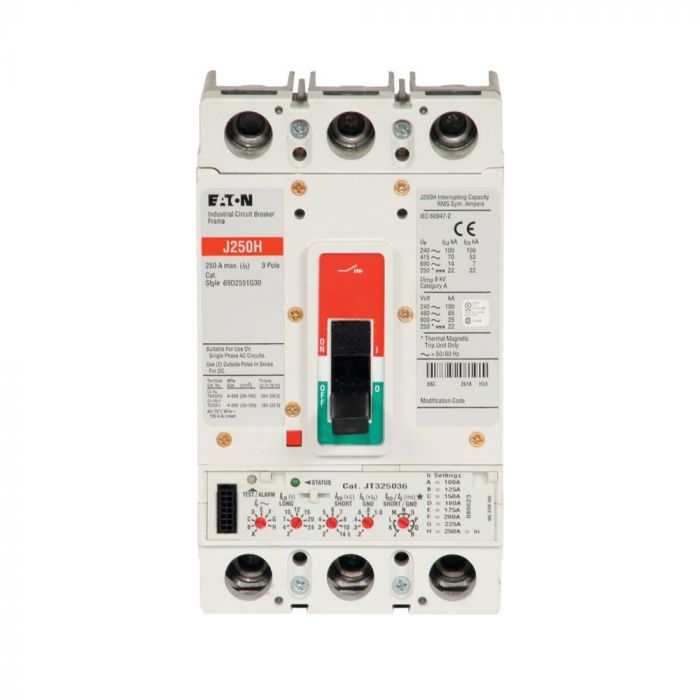

Eaton Series G complete molded case circuit breaker, JG Frame, 250 A, Three-pole, 600V, 100 kAIC at 240V, 70 kAIC at 415V, 65 kAIC at 480V, 25 kAIC at 600V, Line/load standard w/ metric mounting hardware, Fixed thermal, adj. magnetic
General specifications |
|
| Product Name | Eaton Series G complete molded case circuit breaker |
| Catalog Number | JGH3250FAG |
| UPC | 782113526874 |
| Product Length/Depth | 3.57 in |
| Product Height | 4.13 in |
| Product Width | 4.13 in |
| Product Weight | 6 lb |
| Compliances | CE Marked |
| Certifications | IEC Rated UL Listed CSA Certified |
Especificaciones del producto |
|
| Type | Complete breaker |
| Amperage Rating | 250 A |
| Voltage rating | 600 Vac |
| Trip Type | Fixed thermal, adjustable magnetic |
| Circuit breaker type | JG |
| Circuit breaker frame type | Complete breaker |
| Rating | 80% rated |
| Series | Series G |
| Terminals | Line and load |
| Frame | JG |
| Frequency rating | 50 to 60 Hz |
| Mounting hardware | Metric |
| Interrupt rating | 65 kAIC at 480 Vac 25 kAIC at 600 Vac 100 kAIC at 240 Vac |
| Number of poles | Three-pole |
| Marca | Eaton |
|---|---|
| MPN: | JGH3250FAG |
