Eaton FWP-900A fusible ultrarrápido de navajas, 700vca/vcd
Precio especial $20,281.00 IVA incluido + Envio $150 MXN
Antes $23,526.00
Disponible 6 Pzas
Antes $23,526.00
Disponible 6 Pzas
sku: FWP-900A
pub
MX0000101479
FWP-900A

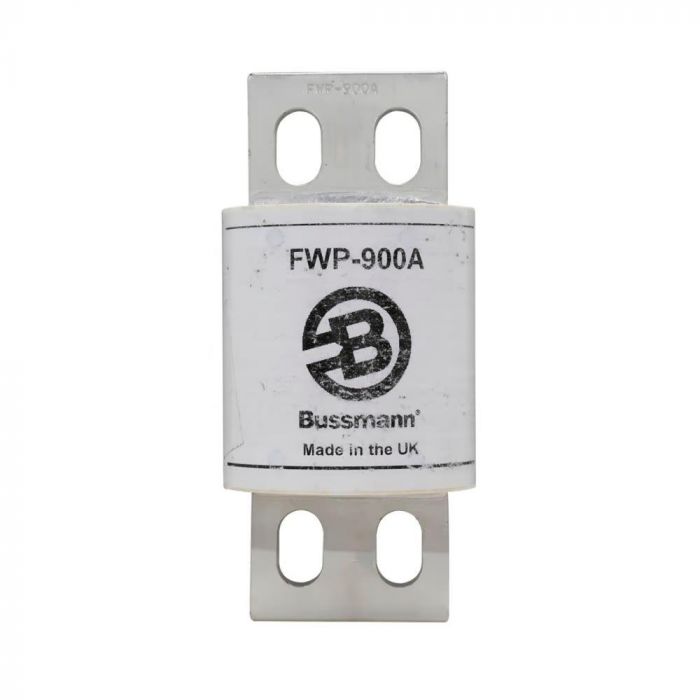

Eaton Bussmann series FWP high speed fuse, 250 Vac/dc, 900A, 200 kAIC Vac, 50 kAIC at 700 Vdc, None, High speed fuse, Blade end X blade end, Stud
General specifications |
|
| Product Name | Eaton Bussmann series high speed cylindrical fuse |
| Catalog Number | FWP-900A |
| UPC | 051712795739 |
| EAN | 5027590021890 |
| Product Length/Depth | 193 mm |
| Product Height | 89 mm |
| Product Width | 89 mm |
| Product Weight | 3064 g |
| Compliances | CE Marked RoHS Compliant |
| Certifications | UL Recognized CSA Certified |
Especificaciones del producto |
|
| Type | High speed fuse |
| Application | Semiconductor, DC Common bus, DC drives, Power converters/rectifiers |
| Amperage Rating | 8 A |
| Breaking capacity | 200 kA |
| Fuse indicator | Non Indicating |
| Insulated metal gripping lugs (IMGL) | No |
| Utilization category | aR (accompanied semiconductor protection) |
| Voltage type | AC |
| Rated switching capacity | 200 A |
| Rated voltage AC | 700 V |
| Rated voltage DC | 700 V |
| Mounting dimension | Other |
| Center-to-center distance of connections | 151.61 mm |
| Current type | AC/DC |
| Class | Class aR |
| Clearing (I2T) | 530000 at 700 V |
| Watt losses | 150 W |
| Fuse shape | Center bolted tags |
| Pre arc (I2T) | 91500 |
| Color | None |
| Interrupt rating | 200 kAIC Vac 50 kAIC at 700 Vdc 200 kAIC |
| Connection | Blade end x blade end |
| Construction size | Other |
| Mounting method | Stud |
| Packaging type | Standard |
| Voltage rating | 700 V (UL) |
| Fuse type | FWP-A |
| Fuse system (according to IEC 60269) | Other |
| Marca | Eaton |
|---|---|
| MPN: | FWP-900A |
