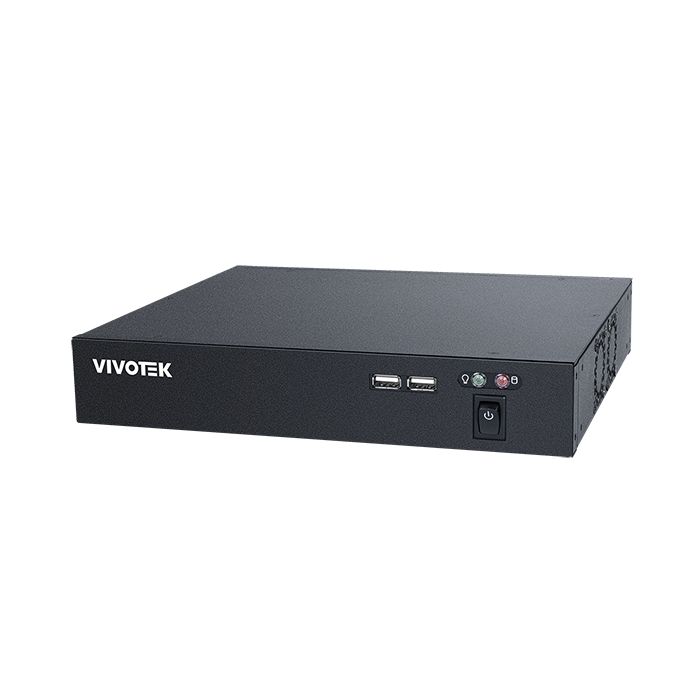

Vivotek IE9281-FM - vast face manager, servidor de administración central, soporta hasta 256 dispositivos reconocimiento facial y 50,000 rostros
Precio especial $62,162.00 IVA incluido + Envio $150 MXN
Antes $72,108.00
Disponible 0 Pzas
Antes $72,108.00
Disponible 0 Pzas
Agotado
pub
MX0000101459
IE9281-FM
Características principales
- Content Management System
- Support up to 256 Devices in One Single Server
- Support of Local Display via HDMI and Virtual Machine Installation via USB
- Easy to Integrate into Your System
- Rich Infographic Reports
- Support Rachmount Installation
| Informacion tecnica | |
|---|---|
| Product Information | |
| Model | IE9281-FM |
| Hardware | Intel CPU: i7-(8th Generation) : DDR4 32GB RAM, HDD: 2.5' 500GB SSD |
| OS | Linux |
| Maximum Number of Faces in Database | 50,000 |
| Network | 10/100/1000 Mb Network |
| Maximum Number of Devices Connecting | Up to: 256 |
| Power Input | 100-240V AC |
| Power Consumption | Max. 90W |
| Dimensions | 250 x 44.2 x 225 mm |
| Weight | 4 KG |
| Safety Certifications | CE, FCC, VCCI |
| System | |
| Architecture | Three Tier Server-client system: · Web Server · Application Server · Database Server |
| Supported OS | Ubuntu Server 20.04 |
| Supported Protocols | HTTP & HTTPS |
| Supported Hypervisors | VMWare, Hyper-V, Virtual Box |
| Container Type | Docker |
| Database Type | MongoDB |
| System Security | · Single device login · Renewable session token · Hardened HTTPS |
| Management Interface | |
| Interface | Using Web client |
| Supported Browsers | · Google Chrome · Mozilla Firefox |
| Languages | · English · Japanese · Traditional Chinese |
| Environment Adaptability | |
| Camera Installation Height | · 3.0 meters max. camera height · Mounting position within 15 degrees incline |
| Supported Image Modes | Color & Monochrome |
| Supported Devices & Integrations | |
| I/O Relay | Moxa E1214 · Advantech ADAM 60XX · VIVOTEK AO-20W I/O Device |
| IP-to-Wiegand Converter | · VIVOTEK AO-20W Wiegand Box |
| HTTP Notifications | Send customized GET/POST HTTP messages |
| Others | · Use VAST Face RESTful API |
| Persons of Interest (POI) Management | |
| POI Management | · Enroll person using Web client · Manage face profiles database through Web Portal |
| POI Authentication | · Using Face as a credential · Using Card Number |
| POI Groups | · Default groups: VIP, Blacklist, Staff · User defined person groups |
| POI Batch Enrollment | Supports bulk enrollment using Excel & JPEG files |
| Enrollment Photo | · Min. face size = 200 x 200 pixel |
| Requirements | · 1MB Max. photo size (.JPG or .PNG) |
| POI Profile Information | · Name, ID #, card #, job position, email, phone, POI group(s), and expiration date |
| POI Reports | |
| Investigation Reports | Generate facial recognition reports and filter events by: · Location · Time period · Name · POI Group · POI type (enrolled or stranger) |
| Attendance Reports | Generate staff clocking reports and filter events by: · Clock-in time · Clock-out time · Stay length · Late Arrival · Early Leave |
| Actions Reports | Generate a report for which pre-defined actions were triggered in response to an event. |
| Export Data | Export results to Excel file |
| Trigger Rules and System Actions | |
| Rule Engine | Rule based engine to trigger single or multiple system actions based on: · Event Location · Schedule · Detection time period · Specific POI profile · POI face group affiliation · Person type (enrolled or stranger) · POI is (not) a member of a group |
| Supported System Actions | · Trigger I/O Relay · Trigger IP-to-Wiegand converter · Send HTTP GET/POST command · WebSocket notification |
| System Users Management | |
| System Users | Register user accounts using Name, E-Mail address & Phone number |
| System User Groups | · System Administrator · Super User · Person Manager · Report Viewer · Welcome Page |
| System Inter-Compatibility | |
| Supported Products | · VIVOTEK VAST2 VMS/ CMS · VIVOTEK VAST Face CMS · VIVOTEK VAST FaceVisitor |
| Facial Recognition Verticals | |
| Possible Applications | · Identify potential troublemakers (shoplifters, criminals or any other barred individuals) · Detect VIP members upon arrival to deliver a tailored experience · Provide physical entry to commercial buildings, residences, and other rooms · Contactless staff clock in system · Verify visitor’s identity |
| Marca | Vivotek |
|---|---|
| MPN: | IE9281-FM |
