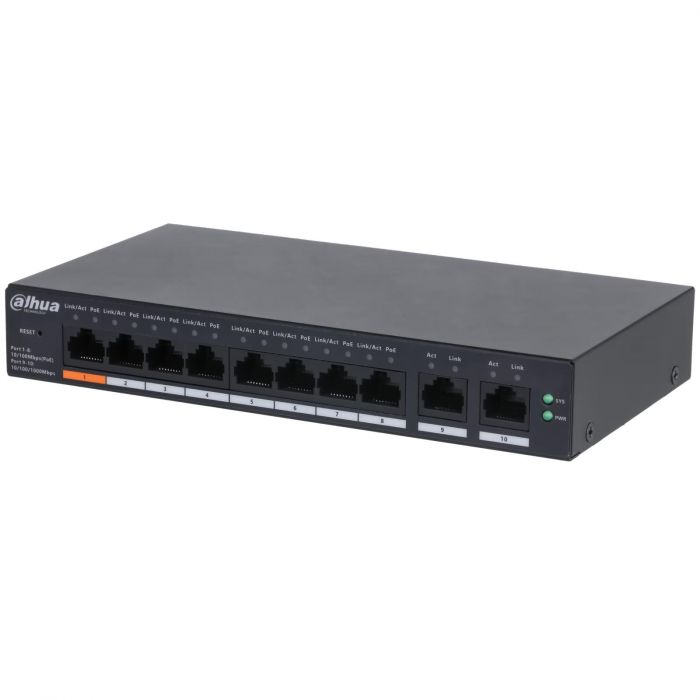

Dahua DH-CS4010-8ET-60 switch poe de 8 puertos gigabit/ inteligente/ 60watts totales/ 2 uplink/ switching 4.8gbps/ protección descargas/ plataforma dolynk care
Precio especial $1,252.00 IVA incluido + Envio $150 MXN
Antes $1,452.00
Disponible 106 Pzas
Antes $1,452.00
Disponible 106 Pzas
sku: DH-CS4010-8ET-60
pub
MX0000101444
CS4010-8ET-60
10-Port Cloud Managed Desktop Switch with 8-Port PoE
> Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standards.
> Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE power supply standards.
> Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
> A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.
| Basic | |
| Switching Capacity | 4.8 Gbps |
| Packet Forwarding Rate | 3.57 Mpps |
| Description of Function Slots | Port 1-8: 4 × RJ-45 10/100 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink) |
| PoE Power | Port 1 ≤ 60 W, Port 2-8 ≤ 30 W, total ≤ 60 W |
| Layer | Layer 2 |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 5% –95% (RH), non-condensing |
| Power Consumption | Idling: ≤3 W; Full load: 65 W |
| Power Supply | External power supply: 53 VDC, 1.226 A |
| Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
| Lightning Protection | Common mode: 4 kV; Differential mode: 2 kV |
| Net Weight | 0.28 kg (0.64 lb) |
| Product Dimensions | 130 mm × 90 mm × 26 mm (5.11' × 3.54' × 1.02') (L × W × H) |
| Hardware | |
| PoE | Yes |
| Ethernet Port | 4 |
| Reset Button | 1 |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Performance | |
| MTBF | 232.62 years |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 9216 Byte |
| MAC Table Size | 8K |
| VLAN Number | 32 |
| Communication Standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab |
| Feature | |
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE |
| PoE Power Consumption Management | Yes |
| PoE Pin Assignment | 1,2,4,5(V+),3,6,7,8(V-) |
| Long Distance PoE Transmission | Yes |
| VLAN Function | Port-based VLAN |
| IEEE 802.3x Flow Control | Yes |
| DHCP Function | DHCP Client |
| Equipment Management | Web management; App management |
| General | |
| Gross Weight | 0.80 kg (1.76 lb) |
| Packaging Dimensions | 265 mm × 238 mm × 76 mm (10.43' × 9.37' × 2.99') (L × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; wall mount |
| Certifications | CE |
| Packing List | Quick Start Guide × 1; Legal and Regulatory Information × 1;Power adapter × 1; Power cord × 1 |
| Marca | Dahua |
|---|---|
| MPN: | DH-CS4010-8ET-60 |
