Panduit DCEFXEI-X surface raceway, ld/ldph, , entr. end fitng, elec ivory
Precio especial $2,271.00 IVA incluido + Envio $150 MXN
Antes $2,634.00
Disponible 3 Pzas
Antes $2,634.00
Disponible 3 Pzas
sku: DCEFXEI-X
pub
MX0000101163
DCEFXEI-X

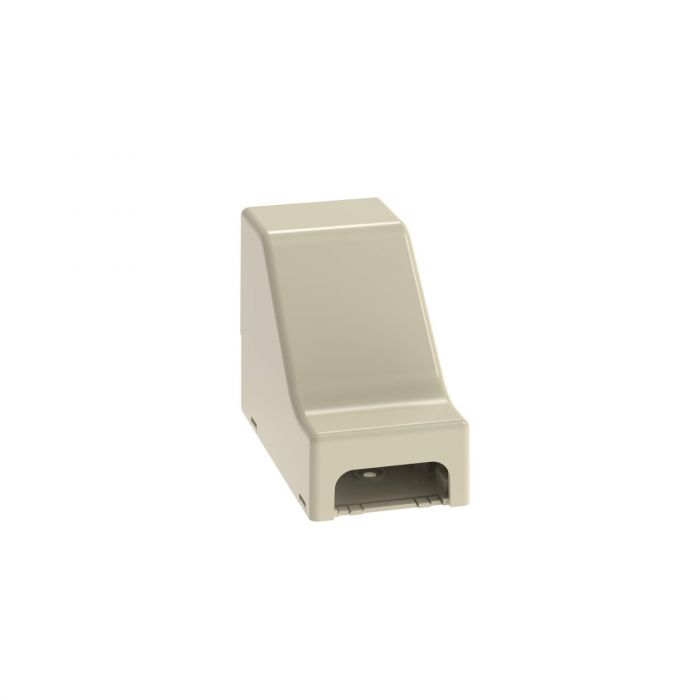

The power rated drop ceiling/entrance end fitting is used with LD10 and LDPH10 raceway. PVC, Length 4.1 in, Electric Ivory
Especificaciones
| Note | Compatible with LDPH10. Using this part with LDPH3 and LDPH5 will cause a gap between the fitting and the raceway. |
| Product Type | Power Rated Fitting |
| Sub Brand | Pan-Way® |
| Fitting Type | Entrance End/Drop Ceiling |
| For Use With | LD3, LDPH3, LDS3, LD5, LDPH5, LDS5, LD10, LDPH10 |
| Mount Method | Screw-On |
| Raceway Type | Power Rated |
| Standards Met | UL94V-0, FT4, Meets TIA/EIA Standards, UL Listed / Compliant. |
| Overall Height (In.) | 2.93 |
| Overall Height (mm) | 74.4 |
| Overall Length (In.) | 4.1 |
| Overall Length (mm) | 104.2 |
| Overall Width (In.) | 2.12 |
| Overall Width (mm) | 53.8 |
| Application | Pan-Way ® LDS Profile Raceway is Non Metallic Surface Raceway Will be a One Piece, Solid Raceway Used To Route, Protect, and Conceal Data Network, Voice or Power Cabling |
| Part Features | Power-rated drop ceiling/entrance end fitting. |
Detalles del empaque
| Std. Pkg. Qty. | 10 |
| Std. Pkg. Volume (cf) | 0.3514 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
| Marca | Panduit |
|---|---|
| MPN: | DCEFXEI-X |
