Nzxt PA-5P1BB-US fuente de poder 1500/850w 80plus platinum/ full-modular power supply/atx3.1 /gamer
Precio especial $8,940.00 IVA incluido + Envio $150 MXN
Antes $10,370.00
Disponible 14 Pzas
Antes $10,370.00
Disponible 14 Pzas
sku: PA-5P1BB-US
pub
MX0000100958

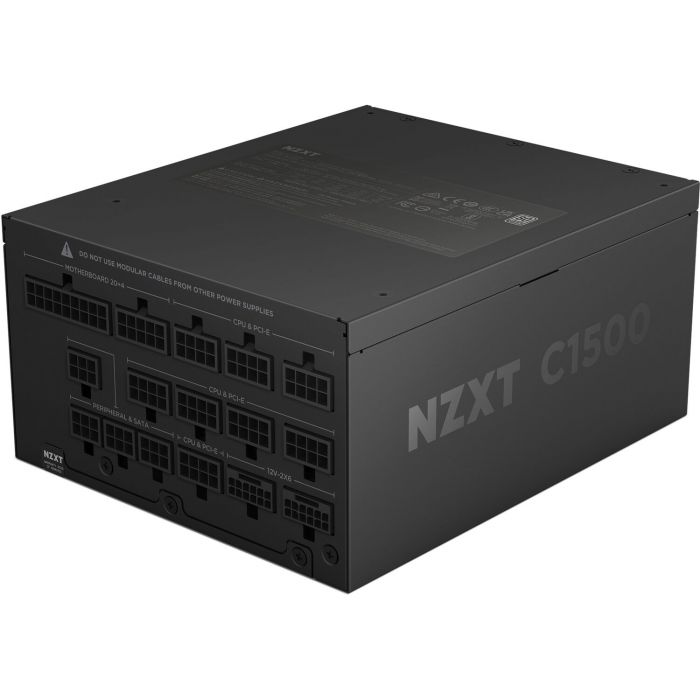

NZXT 1500W C1500 Platinum ATX 3.1 Computer Power Supply (Black)
| Total Connectors |
1x 24-Pin ATX Motherboard
1x 4+4-Pin EPS CPU 1x 8-Pin EPS CPU 6x 6+2-Pin PCIe 2x 16-Pin PCIe (12VHPWR) 12x 15-Pin SATA 4x 4-Pin Peripheral / Molex |
| Cable Design |
Modular, Sleeved
|
| Total Wattage |
1500 W
|
| Number of +12 V Rails |
1
|
| Efficiency Rating |
80 PLUS Platinum
|
| Form Factor |
ATX
|
Connectivity
| Total Connectors |
1x 24-Pin ATX Motherboard
1x 4+4-Pin EPS CPU 1x 8-Pin EPS CPU 6x 6+2-Pin PCIe 2x 16-Pin PCIe (12VHPWR) 12x 15-Pin SATA 4x 4-Pin Peripheral / Molex |
| Cable Design |
Modular, Sleeved
|
| PCIe Connector Distances |
25.6' / 650 mm
|
| SATA Connector Distances |
25.6' / 650 mm
|
| Peripheral Connector Distances |
25.6' / 650 mm
|
| ATX Connector Distance |
23.6' / 600 mm
|
| EPS Connector Distances |
27.6' / 700 mm
|
Electrical
| Total Wattage |
1500 W
|
| Number of +12 V Rails |
1
|
| Combined Power for +12 V |
1500 W
|
| Max Load for +12 V |
125 A
|
| Combined Power for +3.3/+5 V |
120 W
|
| Max Load for +3.3 V |
22 A
|
| Max Load for +5 V |
22 A
|
| Max Power for +5 Vsb |
15 W
|
| Max Load for +5 Vsb |
3 A
|
| Peak Power |
1500 W
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
General
| Efficiency Rating |
80 PLUS Platinum
|
| Active Power Factor Correction |
No
|
| Efficiency |
92% at 10% Load
94% at 20% Load 93% at 50% Load 90% at 100% Load |
Cooling
| Fan Size |
140 mm
|
| Fan Speed |
2500 rpm
|
| Bearing Type |
Magnetic Levitation
|
| Noise Level |
41 dBA
|
Environmental
| Operating Temperature |
32 to 122°F / 0 to 50°C
|
Physical
| Form Factor |
ATX
|
| Protection |
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
|
| Certifications |
FCC, CB IEC 62368-1, UKCA, BSMI, RCM, TUV, KC
|
| Mean Time Between Failures (MTBF) |
100,000 Hours
|
| Dimensions |
7.1 x 5.9 x 3.4' / 180 x 150 x 86 mm
|
Packaging Info
| Package Weight |
10.82 lb
|
| Box Dimensions (LxWxH) |
13.2 x 7.8 x 6.4'
|
| Marca | Nzxt |
|---|---|
| MPN: | PA-5P1BB-US |
