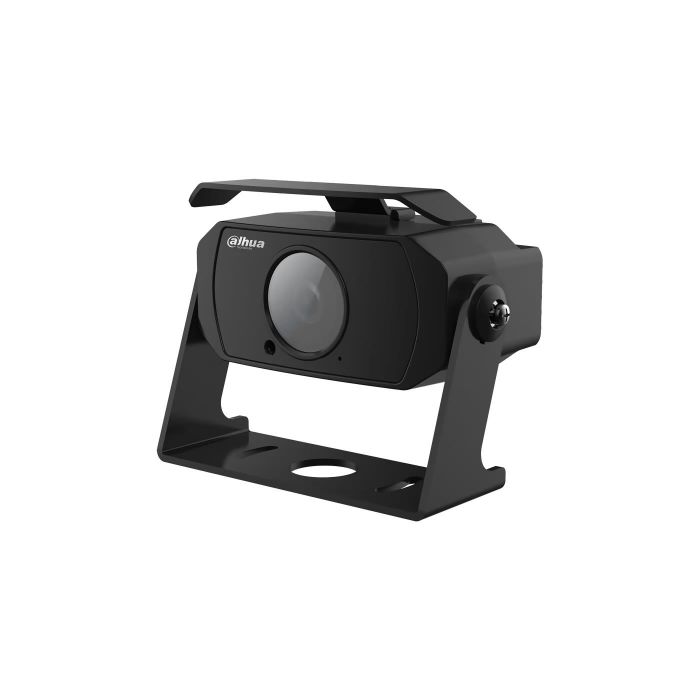

Dahua DH-IPC-HMW3230N-M-DAE-0600B dh-ipc-hmw3230-m - camara ip para monitoreo de conductor 2 megapixeles/ lente 6mm/ ir 5m/ especial uso con nvr movil/ analitico dsm/ rj45/ poe/
Precio especial $2,702.00 IVA incluido + Envio $150 MXN
Antes $3,134.00
Disponible 0 Pzas
Antes $3,134.00
Disponible 0 Pzas
Agotado
pub
MX0000100855
IPC-HMW3230-M/M12
Square Network Camera
> 1/2.7” 2Megapixel progressive scan CMOS
> 25/30fps@1080P(1920×1080)
> H.265&H.264 dual-stream encoding
> 2.8/6 mm fixed lens
> Built-in IR light with illumination distance up to 5 m
> DWDR,Day/Night(ICR),3DNR,AWB,AGC,BLC,HLC
> Supports watermark
> Supports 128G micro SD card12V DC/POE power supply
> 25/30fps@1080P(1920×1080)
> H.265&H.264 dual-stream encoding
> 2.8/6 mm fixed lens
> Built-in IR light with illumination distance up to 5 m
> DWDR,Day/Night(ICR),3DNR,AWB,AGC,BLC,HLC
> Supports watermark
> Supports 128G micro SD card12V DC/POE power supply
| Camera | |
| Image Sensor | 1/2.7 inch CMOS |
| Max. Resolution | 1920 (H) x 1080 (V) |
| Scanning System | Progressive |
| Illuminator Number | 1 (IR) |
| Electronic Shutter Speed | 1/3 s–1/100000 s (manual/auto) |
| S/N Ratio | >65 dB |
| Min. Illumination | 0.01 Lux @ F2.0 (Color) 0.001 Lux @ F2.0 (B/W) 0 Lux @ F2.0 (IR on) |
| Illumination Distance | 5 m |
| Day/Night | B/W by default, supports manual switch |
| Noise Reduction | 3D NR |
| WDR | Digital WDR |
| Gain Control | Manual/Auto |
| White Balance | Manual/Auto |
| BLC | Yes, region selectable |
| HLC | Yes |
| Lens | |
| Lens Type | Fixed focal |
| Lens Mount | M12 |
| Focal Length | 2.8/6 mm |
| Aperture | F2.0 |
| Aperture Control | Fixed |
| Iris Type | Fixed iris |
| Field of View | 2.8mm: H: 115°, V:60 °, D:130 ° 6 mm: H: 55°, V: 31°, D: 62° |
| Intelligence | |
| Event Trigger | Motion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly |
| IVS | Tripwire, Intrusion |
| Alarm | |
| Alarm Event | Motion Detection, Disk Error, Illegal Access, IVS, Voltage Detection, Disk Full, Video Tamper, Audio Detection, Scene Changing |
| Video | |
| Video Compression | H264;H264B;H264H;H265;MJPEG |
| Bit Rate | H.264H: 32K - 8192Kbps H.265: 12K - 5632Kbps MJPEG: not supported |
| Frame Rate | 50Hz: Main Stream (1920×1080@25fps), Sub Stream (704×576@25fps), Third Stream (1920×1080@14fps) 60Hz: Main Stream (1920×1080@30fps), Sub Stream (704×576@30fps), Third Stream (1920×1080@9fps) |
| Resolution | 1080P (1920×1080)/1.3M (1280×960) 720P (1280×720)/D1 (704× 576/704×480)/VGA (640×480)/CIF (352×288/352×240) |
| Video Scale | 16 : 9 |
| Bit Rate Type | CBR; VBR |
| Audio | |
| Internal MIC | Built-in MIC |
| Compression | G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729 |
| Network and Port | |
| Network Port | RJ–45 port (10/100 Base-T)/4-pin M12 aviation connector |
| Access Standard | ONVIF Profile S&G, API |
| Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP; FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S NMP;TLS |
| Streaming Method | Unicast / Multicast |
| Max. User Access | Unicast: 10 Users Multicast: 20 Users |
| Edge Storage | NAS Local PC for instant recording Mirco SD card 128GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS, DMSS |
| Smart Phone | IOS, Android |
| Power | |
| Power Supply | 12V DC/ POE (802.3af) |
| Power Consumption | Basic power consumption: 1.3WMax power consumption: 2.4W (IR full intensity, ICR switch, WDR on) |
| Environment | |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F) |
| Operating Humidity | ≤95% |
| Ingress Protection | IP67 |
| Operating Humidity | < 95% (non-condensing) |
| Structure | |
| Dimensions | 107.0mm × 82.0mm × 68mm (4.21' × 3.235' ×2.68') (with bracket) |
| Weight | Net Weight: 415g (0.9lb) Gross Weight: 565g (1.2lb) |
| Casing Material | Metal |
| Installation | Bracket Installation |
| Certification | |
| Certification | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
| Marca | Dahua |
|---|---|
| MPN: | DH-IPC-HMW3230N-M-DAE-0600B |
