Belden FS3L006NF fx out loose tube om3 6 fibers osp blk
Precio especial $8,634.00 IVA incluido + Envio $150 MXN
Antes $10,015.00
Disponible 14 Pzas
Antes $10,015.00
Disponible 14 Pzas
sku: FS3L006NF
pub
MX0000100466
FS3L006NF

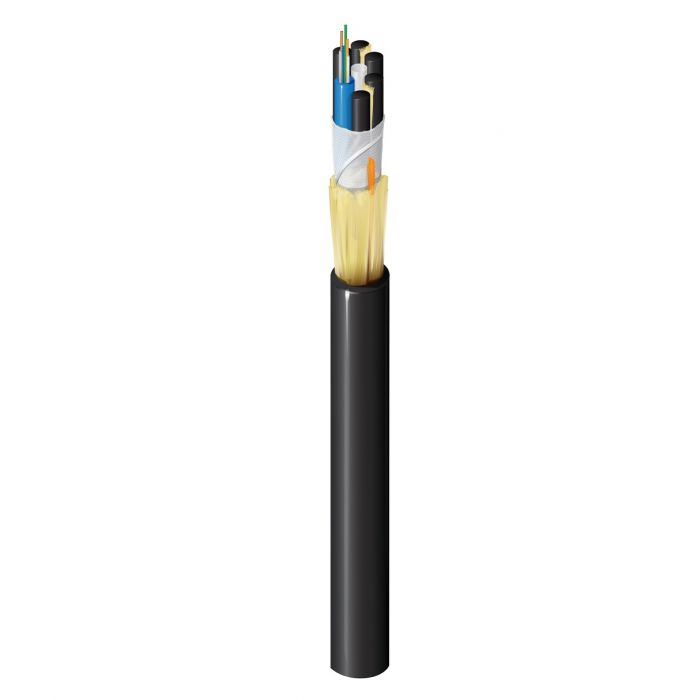

Outdoor Loose Tube OM3 6 Fibers
.FX Outdoor Loose Tube OM3 6 Fibers OSP Sub-Units (6F) Gel Black
Product Overview
| Suitable Applications | Outdoor, Campus Area Network, Backbone |
|---|
Fiber Specifications
| Fiber Type | OM3 |
|---|---|
| Fiber Core Diameter | 50/125 µm |
| Fiber Diameter | 250 µm |
| Fiber Count | 6 |
| Fiber Color Coding | TIA-598-D |
Cable Construction
| Number of Active Subunits | 1 |
|---|---|
| Number of Fillers | 4 |
| Fibers Per Subunit | 6 |
| Subunit Waterblocking | Gel Filled |
| Subunit Diameter | 0.078 in (2.0 mm) |
| Central Strength Member | GRP |
| Cable Core Waterblocking | Waterblock Tape |
Inner Jacket Specifications
| Material | PE - Polyethylene |
|---|
Outer Jacket Specifications
| Strength Member | Waterblocking Aramid Yarns |
|---|---|
| Jacket Material | PE - Polyethylene |
| Nom. Diameter | 0.364 in (9.2 mm) |
| Color | Black |
| Number of Ripcords | 1 |
OPTICAL CHARACTERISTICS
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.0 dB/km | 1.0 dB/km |
| 1 Gigabit Ethernet Performance | 1000 | 550 |
| 10 Gigabit Ethernet Performance | 300 m | -- |
| Min. Effective Modal Bandwidth (EMB) | 2000 MHz-km | -- |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz-km | 500 MHz-km |
Mechanical Characteristics
| Min. Bend Radius During Installation | 15x Cable OD |
|---|---|
| Min. Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 2670 N (600 lbf) |
| Max. Tensile Strength During Operation | 800 N (180 lbf) |
| Crush Resistance | 220 N/cm |
| Bulk Cable Weight | 39 lbs/kft (58 kg/km) |
|---|
Temperature Range
| Installation Temperature Range | -30C to +70C |
|---|---|
| Operating Temperature Range | -40C to +70C |
| Storage Temperature Range | -40C to +75C |
Standards and Compliance
| Environmental Suitability | Outdoor, Burial |
|---|---|
| Sustainability | CA Prop 65 |
| ICEA Compliance | S-87-640 |
| TIA/EIA Compliance | ANSI/ICEA S-87-640 |
History
| Update and Revision | Revision Number: 0.335 Revision Date: 04-01-2024 |
|---|
| Marca | Belden |
|---|---|
| MPN: | FS3L006NF |
