Provision-Isr DB-320WIPN doorbell es una camara timbre para puertas de acceso - lente 2.3 mm (139°), deteccion rostro, microfono/altavoz, sd(256), wdr, wifi, ip65
Precio especial $2,775.00 IVA incluido + Envio $150 MXN
Antes $3,219.00
Disponible 2 Pzas
Antes $3,219.00
Disponible 2 Pzas
sku: DB-320WIPN
pub
MX0000100367
DB-320WIPN

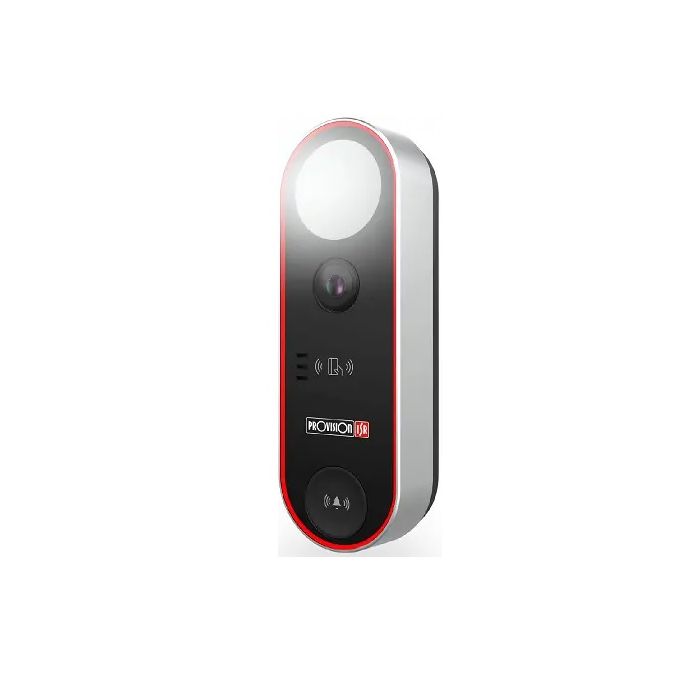

Ideal for door-side installations, this 2MP doorbell camera with built-in white and IR LEDs, microphone, and speaker is a perfect solution for any residential home or office. DB-320WIPN also has a doorbell button that immediately opens a line of communication with the CAM2 app. When in use, you get a high-quality color image at any given time, and when combined with a face recognition NVR, you increase security by knowing who is at your door.
• DB-320WIPN
• Sensor: 1/2.8″ CMOS (16:9)
• Resolution: 1920×1080 25/30FPS (2MP)
• Lens: 2.3mm (139°)
• True Day&Night – ICR
• Illumination: 3m (2 IR LEDs) + 1m (1 White LED)
• Compression: H.265 / H.264 / H.265+ / H.264+ / MJPEG (Substream only)
• 2D Face Detection
• Person Detection
• Digital WDR, BLC, HLC, ROI
• SD Card: Event/Schedule Record (Up to 256GB)
• Built-in Microphone and Speaker
• ONVIF: Profile T/S/G
• Water Proof: IP65
• Door Lock Support
• Door Sensor Support
• Open Door Button
• RFID
• Weight: ~145g
• Power: DC12V/~500mA / PoE/~5.4W
| Informacion tecnica | |
|---|---|
| Access Control | |
| Door Lock | 1 NO/NC |
| Door Sensor | 1 NC |
| RFID | MIFARE 13.56 Mhz Up to 1000 Keyfobs supported |
| Exit Button | 1 NO |
| Doorbel Button | Non Configurable Call to Provision Cam2 App + Indoor Monitor (Optional) |
| NDAA Compliant | |
| NDAA Compliant | Yes |
| Video | |
| Image Sensor | 1/2.8' CMOS (16:9) |
| Effective Pixels | 1920x1080 |
| Electronic Shutter | 1/2s ~ 1/100000s |
| Day & Night | ICR |
| Min. Illumination | 0 lux (White LED on) |
| Network | |
| User Access | Device Sharing: The device can be shared with up to 5 user accounts. Simultaneous monitoring: Up to 3 users with multi-stream real-time transmission. |
| Network Protocol | IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, UPnP, Email, FTP, HTTPS, HTTP POST, P2P, QoS, WiFi: WiFi Standard: IEEE802.11b/g/n Frequency: 2.4GHz ~ 2.4835 GHz Channel Bandwidth: 20MHz Security: WEP, WPA-PSK/WPA2-PSK Wireless Range: 20m |
| Remote Monitoring | IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App |
| Ethernet | 100Mbps |
| ONVIF | Profile T/S/G |
| Lens | |
| Lens (Field of View) | 2.3mm (139°) |
| Iris | Fixed Iris |
| Lens Mount | M12 Mount |
| Housing | |
| PoE | Yes |
| Illumination | 3m (2 IR LEDs) 1m (1 White LED) |
| Power Supply | DC12V/~500mA / PoE/~5.4W |
| Protection Rate | Water Proof: IP65 |
| Work Environment | -20°C~50°C, 10%~90% Humidity |
| Bracket | Wall Bracket Included |
| Dimensions | 150mm×50mm×29.8mm |
| Weight (gross) | ~145g |
| Hard Reset Button | Yes |
| Events and Analytics | |
| Analytics | 2D Face Detection Person Detection |
| Motion Detection | Yes |
| Face database | N/A |
| Triggers | N/A |
| Recognition per second | N/A |
| Recognition distance | N/A |
| Connectivity | |
| Network | RJ45 (+PoE), WIFI(2.4G) |
| Audio Connectivity | Built-in Microphone and Speaker |
| Alarm | No |
| SD Card | Event/Schedule based Main/Substream recording (Up to 256GB) |
| Wiegand | Integral Reader: 26(10)/34bit Input/Output 26(8)/26(10)/34/37/42/58/66bit |
| Power | DC wiring |
| Tamper Switch | Back Tamper |
| Analog Video Output | No |
| Compression | |
| Resolution | 2MP / 1MP / D1 (704x576) / QVGA (480x240) / CIF (352x288) |
| Frame Rate | 1-25/30FPS |
| Video Compression | H.265 / H.264 / H.265+ / H.264+ / MJPEG (Substream only) |
| Multi-Stream | Master Stream: 2MP (1920x1080) / 1MP (1280x720) (1~30fps) Substream: 720P/D1/CIF (1~30fps) |
| Bit Rate | 64Kbps ~ 8Mbps@H.265 / 64Kbps ~ 8Mbps@H.264 |
| Encode Mode | VBR/CBR |
| Image Quality | Five levels under VBR; Free adjustment under CBR |
| Audio | |
| Audio compression | G.711A/G.711U |
| Communication | Two-Way Audio |
| Marca | Otros |
|---|---|
| MPN: | DB-320WIPN |
