Dahua DHI-TPC-DF1241-B2F2-DW-S8 mini cámara eyeball híbrida ip térmica/ 4 mp/ eureka/ funciones de ia: detección calor, cable trampa, clasificación personas/vehículos, humo y llamadas/ canales visible térmico/ poe/ ip67
Precio especial $10,773.00 IVA incluido + Envio $150 MXN
Antes $12,497.00
Disponible 45 Pzas
Antes $12,497.00
Disponible 45 Pzas
sku: DHI-TPC-DF1241-B2F2-DW-S8
pub
MX0000100287
*Antes de ofertar validar esta ficha base
TPC-DF1241-S8

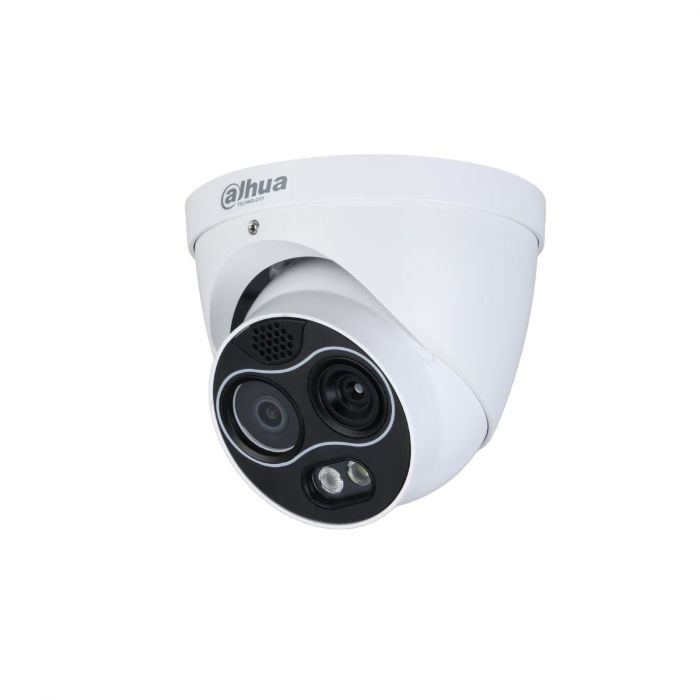

Thermal Network Mini Hybrid Eyeball Camera
> Vanadium oxide uncooled focal plane detector.
> 4Megapixel progressive scan CMOS.
> AI functions: heat detection, tripwire, human/vehicle classification, smoking detection, and call detection.
> Built-in white light and audio alarm.
> Remote auxiliary management.
> Dual image fusion (visible and thermal channels).
> Wide input voltage 12 VDC ± 20%, and PoE.
> IP67 rated.
| Thermal | ||
| Detector Type | Vanadium oxide uncooled focal plane detector | |
| Max. Resolution | 256 (H) × 192 (V) | |
| Pixel Pitch | 12 μm | |
| Spectral Range | 8 μm–14 μm | |
| Thermal Sensitivity (NETD) | < 40 mK (@f/1.0, 25 Hz, 300 K) | |
| Field of View | 2 mm: H: 87.8°; V: 63.8° 3.5 mm: H: 50.6°; V: 37.8° 7 mm: H: 24°; V: 18° | |
| Close Focus Distance | 2mm: 0.3 m (0.98 ft) 3.5 mm: 0.5 m (1.64 ft) 7 mm: 1 m (3.28 ft) | |
| Detection Distance | 2 mm: Vehicle: 256 m (839.90 ft); Human: 83 m (272.31 ft) 3.5 mm: Vehicle: 449 m (1,473.10 ft); Human: 146 m (479.00 ft) 7 mm: Vehicle: 897 m (2,942.91 ft); Human: 292 m (958.01 ft) | |
| Recognition Distance | 2 mm: Vehicle: 63 m (206.69 ft); Human: 21 m (68.90 ft) 3.5 mm: Vehicle: 110 m (360.89 ft); Human: 38 m (124.67 ft) 7 mm: Vehicle: 220 m (721.78 ft); Human: 75 m (246.06 ft) | |
| Identification Distance | 2 mm: Vehicle: 32 m (104.99 ft); Human: 11 m (36.09 ft) 3.5 mm: Vehicle: 56 m (183.73 ft); Human: 19 m (62.34 ft) 7 mm: Vehicle: 111 m (364.17 ft); Human: 38 m (124.67 ft) | |
| Note: Detection Distance: Detects objects, but cannot recognize their characteristics (objects must cover more than 3.6 pixels of the image). Recognition Distance: Classifies objects into general categories, such as human, vehicle (the object must cover more than 14 pixels of the image). Identification Distance: Classifies objects into specific categories based on their characteristics, such as engineering truck, car (the object must cover more than 28 pixels of the image). | ||
| Aperture | F1.0 | |
| Digital Detail Enhancement (DDE) |
Yes | |
| Digital Zoom | 16 levels | |
| AGC | Auto; Manual | |
| Noise Reduction | 2D NR; 3D NR | |
| Image Flip | 180° | |
| Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) | |
| Fusion Mode | 3 (Warm color; Cool color; Ironred) | |
| Visible | ||
| Image Sensor | 1/2.7' CMOS | |
| Max. Resolution | 2336 (H) × 1752 (V) | |
| Pixel | 4 MP | |
| Electronic Shutter Speed | 1/30,000 s–1 s | |
| Min. Illumination | Color: 0.05 lux Black & white: 0.005 lux 0 lux (IR on) | |
| IR Illumination Distance | 30 m (98.43 ft) | |
| IR Illuminator On/Off Control | Auto; Manual | |
| Aperture | 2 mm: F2.2 4 mm: F1.6 8 mm: F2.0 | |
| Field of View | 2 mm: H: 94°; V: 72° 4 mm: H: 71.2°; V: 52° 8 mm: H: 33.4°; V: 25° | |
| Focus Control | Fixed | |
| Close Focus Distance | 2 mm: 0.3 m (0.98 ft) 4 mm: 1 m (3.28 ft) 8 mm: 2.5 m (8.2 ft) | |
| Day/Night | Auto (ICR); Color; B/W | |
| BLC | Yes | |
| WDR | DWDR | |
| HLC | Yes | |
| White Balance | Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural | |
| AGC | Auto; Manual | |
| Noise Reduction | 2D NR; 3D NR | |
| S/N Ratio | ≥55 dB | |
| Region of Interest (RoI) | Yes | |
| Image Flip | 180° | |
| Exposure Compensation | Yes | |
| Intelligence | ||
| General Intelligence | Tripwire; Intrusion | |
| Advanced Intelligence | Heat Detection & Alarm Cold & Hot Spot Trace Human & Vehicle Classification Smoking Detection Call Detection |
|
| Video and Audio | ||
| Video Compression | H.265; H.264; H.264H; MJPEG | |
| Resolution | Thermal: Main Stream: 1280 × 960 (1.3M); XVGA (1024 × 768); VGA (640 × 480); 256 × 192; 1280 × 960 (by default) Sub Stream: VGA (640 × 480); 256 × 192; 256 × 192 (by default) Visual: Main Stream: 2336 × 1752; 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 2336 × 1752 (by default)Sub Stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); 352 × 288 (by default) | |
| Frame Rate | Thermal 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default Visual 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default | |
| Audio Compression | G.711a; G.711mu; PCM | |
| Network | ||
| Protocol | HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP | |
| Edge Storage | Micro SD card (256 G) | |
| Interoperability | ONVIF; CGI; DaHua SDK | |
| Browser | IE: IE 8 and later Google: 42 and earlier Firefox: 42 and earlier | |
| User/Host | 10 | |
| Security | Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access | |
| Port | ||
| Network | 1 × RJ-45 (10/100 Base-T) | |
| Audio Input | 1 | |
| Audio Output | 1 | |
| Alarm Input | 2 | |
| Alarm Output | 2 | |
| RS-485 | 1 pair | |
| Power | ||
| Power Supply | 12 VDC, 1.2 A ± 20%; PoE | |
| Power Consumption | Basic: <3 W (12 VDC, LED off); 3.5 W (PoE) Max: <7W (12 VDC, LED on, heater on); 9 W (PoE) | |
| Environment | ||
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) | |
| Storage Temperature | –30 °C to +70 °C (–22 °F to 158 °F) | |
| Operating Humidity | ≤95% | |
| Protection | IP67 | |
| Structure | ||
| Product Dimensions | 122 mm × 122 mm × 112 mm (4.80' × 4.80' × 4.41') (L × W × H) | |
| Packaging Dimensions | 155 mm × 155 mm × 135 mm (6.10' × 6.10' × 5.31') (L × W × H) | |
| Net Weight | ≤0.85 kg (1.87 lb) | |
| Gross Weight | ≤1 kg (2.20 lb) | |
| Heat Detection Distance | ||
| Focal Length | Max. Distance | |
| 2 mm | 25 m (82.02 ft) | |
| 3.5 mm | 45 m (147.64 ft) | |
| 7 mm | 86 m (282.15 ft) | |
| Note: The table displays the measured distances obtained from using the target size 0.2 m × 0.2 m for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%. The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more. | ||
| Perimeter Protection Distance | ||
| Focal Length | Distance (Human) | Distance (Vehicle) |
| 2 mm | 14 m (45.93 ft) | 42 m (137.80 ft) |
| 3.5 mm | 24.5 m (80.38ft) | 72.5 m (237.86 ft) |
| 7 mm | 49 m (160.76 ft) | 146.5 m (480.64 ft) |
| Note: The table displays the measured distances obtained from using the target sizes 1.8 m × 0.5 m (human) and 1.4 m × 4 m (vehicle) for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%. The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more. |
| Marca | Dahua |
|---|---|
| MPN: | DHI-TPC-DF1241-B2F2-DW-S8 |
