Belden 7923A 0081000 cable ind cat5e 24awg sbindar gris
Antes $21,925.00
Disponible 1 Pzas
7923A

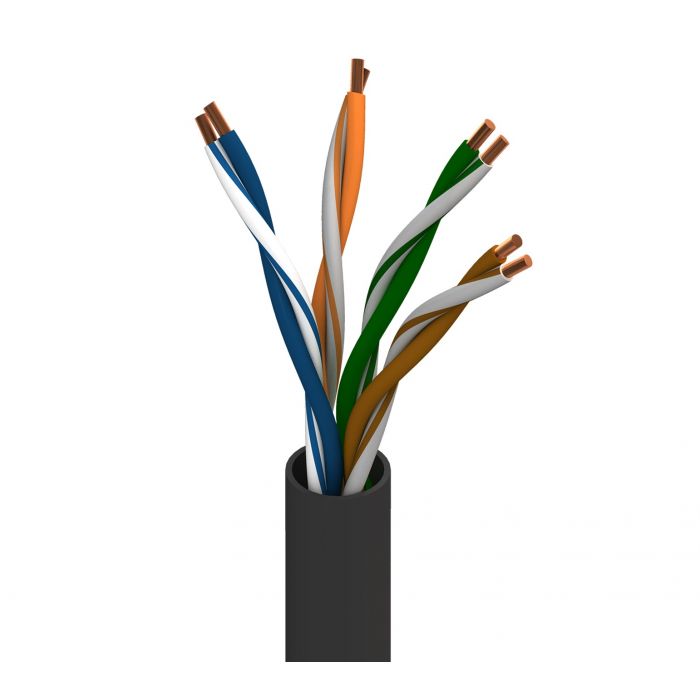

DataTuff® Cat 5e, 4 Bonded-Pr #24 Sol BC, PO Ins, PVC Jkt, MSHA CMR
Industrial Ethernet Cat 5e, 4 Bonded-Pair 24AWG (Solid) Bare Copper, PO Insulation, PVC Outer Jacket, MSHA CMR
|
Suitable Applications |
mining, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. |
|---|---|
|
Patent |
This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
| Element | Size | Stranding | Material | No. of Pairs | No. of Elements |
|---|---|---|---|---|---|
| Pair(s) | 24 AWG | Solid | BC - Bare Copper | 4 | 4 |
| Material | Color Code |
|---|---|
| PO - Polyolefin | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
|
Bonded-Pair |
Yes |
|---|
| Material | Nom. Diameter | Ripcord |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.230 in (5.84 mm) | Yes |
|
Overall Cable Diameter (Nominal) |
0.230 in (5.84 mm) |
|---|
| Max. Conductor DCR | Max. Capacitance Unbalance |
|---|---|
| 93.8 Ohm/km (28.6 Ohm/1000ft) | 66 pF/ft |
| Max. Delay | Max. Delay Skew | Nom. Velocity of Prop. |
|---|---|---|
| 510 ns/100m | 25 ns/100m | 70% |
| UL Voltage Rating |
|---|
| 300 V (CMR), 300 V (CMX-Outdoor) |
| UL Temperature | Operating | Installation | Storage |
|---|---|---|---|
| 75°C | -40°C To +75°C | -25°C To +75°C | -25°C To +75°C |
| Stationary Min. |
|---|
| 2.5 in (64 mm) |
|
Max. Pull Tension |
40 lbs (18 kg) |
|---|---|
|
Bulk Cable Weight |
25 lbs/1000ft |
|
Environmental Suitability |
Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance |
|---|---|
|
Flammability / Reaction to Fire |
UL1666 Riser, FT4, IEEE 1202 Vertical Tray Flame Test, IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 800, CMR, CMX-Outdoor, CMG |
|
CEC / C(UL) Compliance |
CMX-Outdoor;CMG |
|
Data Category |
Category 5e |
|
TIA/EIA Compliance |
ANSI/TIA-568.2-D Category 5e |
|
Third Party Performance Verification |
Category 5e |
|
ISO/IEC Compliance |
ISO/IEC 11801-1, IEC 61156-5 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Other Standard Compliance(s) |
P-07-KA060003-MSHA |
|
Notes |
Operating temperatures are subject to length de-rating. Cable passes -40C Cold Bend per UL 1581. |
|---|
| Marca | Belden |
|---|---|
| MPN: | 7923A 0081000 |
