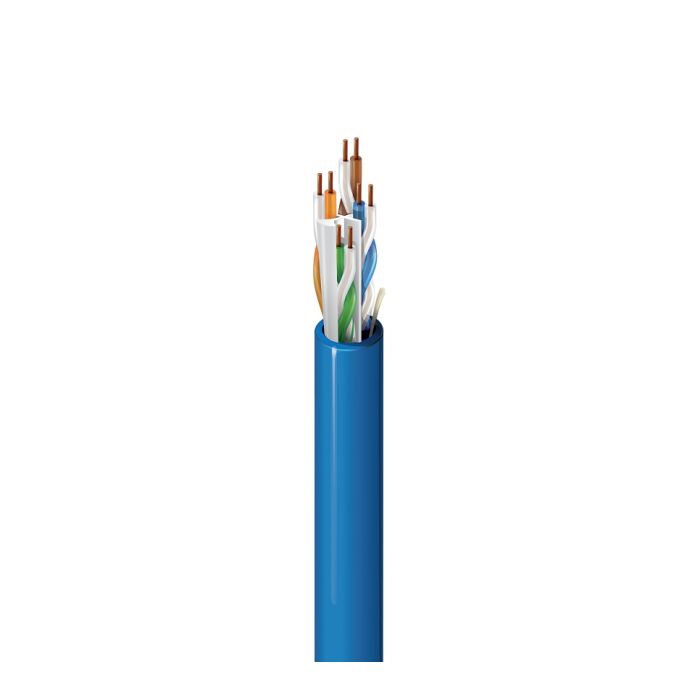

Belden 10GXS33 D15A1000 cable cat6a par pegado plenum azul
Antes $31,960.00
Disponible 10 Pzas
10GXS Category 6A Enhanced Cable, 4 Bonded-Pairs, U/UTP, CMP.
10GXS Category 6A Enhanced Premise Horizontal Cable (625MHz), 4 Bonded-Pairs, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest® PVC-LS Jacket
|
Suitable Applications |
Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, PoE++, PoE+, PoE, Noisy Environments, Data Center EoR and MoR, Network Backbone, HDBaseT, HDBaseT 4K UHD |
|---|---|
|
Patent |
This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
| Size | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 23 AWG | Solid | BC - Bare Copper | 4 |
| Material | Color Code |
|---|---|
| FEP - Fluorinated Ethylene Propylene | White & Blue, White & Orange, White & Green, White & Brown |
|
Bonded-Pair |
Yes |
|---|
| Separator | Material | Material Trade Name | Nom. Diameter | Ripcord |
|---|---|---|---|---|
| Center Member (Patented EquiSpline®), EquiBlock™ Barrier Technology | PVC - Polyvinyl Chloride | Flamarrest® | 0.273 in (6.93 mm) | Yes |
|
Overall Cable Diameter (Nominal) |
0.273 in (6.93 mm) |
|---|
| Max. Conductor DCR | Max. Capacitance Unbalance |
|---|---|
| 75 Ohm/km (23 Ohm/1000ft) | 90 pF/100m |
| Frequency | Max. Delay | Max. Delay Skew | Nom. Velocity of Prop. |
|---|---|---|---|
| 100 MHz | 537.6 ns/100m | 45 ns/100m | 69% |
| UL Voltage Rating |
|---|
| 300 V (CMP), 300 V (CL3P) |
| UL Temperature | Operating | Installation | Storage |
|---|---|---|---|
| 105°C | -20°C To +75°C | 0°C To +50°C | -20°C To +75°C |
| Stationary Min. | Installation Min. |
|---|---|
| 0.5 in (13 mm) | 2.5 in (64 mm) |
|
Max. Pull Tension |
40 lbs (18 kg) |
|---|---|
|
Bulk Cable Weight |
38 lbs/1000ft |
|
Environmental Suitability |
Plenum, Indoor |
|---|---|
|
Sustainability |
Product Lens™, Environmental Product Declaration (EPD) Available |
|
Flammability / Reaction to Fire |
NFPA 262, UL 910 (Plenum), FT6 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 800, CMP, CMP-LP (0.7A), CL3P-LP (0.7A) |
|
CEC / C(UL) Compliance |
CMP |
|
ICEA Compliance |
S-116-732 |
|
IEEE Compliance |
IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
|
NEMA Compliance |
ANSI/NEMA WC-66 |
|
Data Category |
Category 6A |
|
TIA/EIA Compliance |
ANSI/TIA-568.2-D Category 6A |
|
ISO/IEC Compliance |
ISO/IEC 11801-1, IEC 61156-5 |
|
CENELEC Compliance |
Segregation class according EN50174-2 = a |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Non-Plenum Number |
10GXS12 (Nonbonded)/10GXS32 |
|
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 625 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. |
|---|
|
Update and Revision |
Revision Number: 0.413 Revision Date: 04-29-2024 |
|---|
| Marca | Belden |
|---|---|
| MPN: | 10GXS33 D15A1000 |
