Cyberpower OL6KSTF transformador 208v-120v para ol 6kva/6kw 6contac
Precio especial $19,695.00 IVA incluido + Envio $150 MXN
Antes $22,846.00
Disponible 0 Pzas
Antes $22,846.00
Disponible 0 Pzas
Agotado
pub
MX0000100044
OL6KSTF
- tep-down transformer:6,000 VA / 6,000 W
- Output:120 V, 208 V, 50/60 Hz
- Power conversion:208 V from utility, UPS, or generator to 120 V output
- Plug type & cord:6 ft NEMA L6-30P power cord
- Outlets:(6) NEMA 5-20R, (1) Hardwire Terminal Block
- Form factor:2U Rack/Tower convertible
- Overload protection:Output circuit breakers
- Over temperature protection:Yes
- Warranty:Three year
roduct Overview

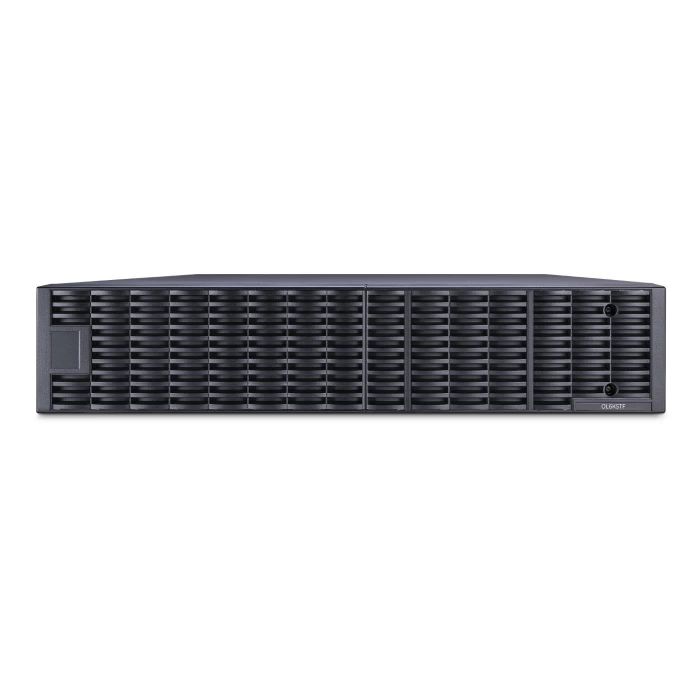

The CyberPower Smart App Online OL6KSTF rack/tower step-down isolation transformer converts 200 V to 240 V input voltage originating from utility power, a UPS, or a generator to 120 V output.
The OL6KSTF has a capacity of 6,000 VA / 6,000 Watts. It features six (6) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords. A hardwire output terminal block provides a means to connect to an electrical subpanel.
The included 6-foot cord (NEMA L6-30P plug to ROJ) connects the OL6KSTF to input power. Over temperature protection safeguards your OL6KSTF from damage if the internal heat exceeds safe operating parameters. A Three-Year Warranty ensures that this step-down transformer has passed our highest quality standards in design, assembly, material or workmanship.Product Features
- Step-Down TransformerThe step-down transformer provides IT managers the ability to support both 120 V and 208 V output requirements. With six (6) NEMA 5-20R outlets available, users will have sufficient outlets to connect multiple 120 V devices running at 15 A and/or 20 A. If additional outlets are needed, CyberPower has a number of different Power Distribution Units (PDU) making it easy to address your specific outlet needs.
- NEMA L6-30P PlugA 6 foot, 3 wire, power cord with a NEMA L6-30P plug to ROJ (removed outer jacket) is included.
- Rack/Tower VersatilityAllows for horizontal rack or vertical tower installation.
- Frequency SupportedThe OL6KSTF has the flexibility to support both 50 Hz and 60 Hz output.
- Over Temperature ProtectionProtects the OL6KSTF from damage if the internal heat exceeds safe operating parameters.
- Resettable Input and Output Circuit BreakersConvenient, resettable switches that provide protection from an input or output overload and faults.
- Three Year WarrantyCyberPower will repair or replace a defective product within three years of the purchase date. See warranty for details.
Typical Applications
- Core Network Equipment
- Corporate Servers
- Enterprise Servers
- Hyperconverged Infrastructure (HCI)
- Server Rooms
- Storage Systems
- VoIP Infrastructure
| General | |
|---|---|
| Current Rating | 30 A |
| Over Temperature Protection | Yes |
| UPS Topology | Step-Down Transformer |
| Input | |
| Cord Length | 6 ft (1.8 m) |
| Input Frequency Range | 50 Hz – 60 Hz |
| Input Plug Type | Hardwire Terminal (NEMA L6-30P power cord included) |
| Maximum Input Current | 30A |
| Nominal Input Voltage | 200 – 240 VAC |
| Output | |
| Nominal Output Voltage | 120 VAC 208 VAC |
| Outlet Type | 6 – NEMA 5-20R 1 – Hardwire Terminal Block |
| Outlets – Total | 7 |
| Output Frequency | 50/60 Hz (auto-sensing/configurable) |
| Overload Protection | Circuit Breaker Protected |
| Step Down Thermal Dissipation | 1379 BTU/hr |
| USB Charge Port | No |
| VA | 6000 VA |
| Watts | 6000 W |
| Physical | |
| Color | Black |
| Form Factor | Rack / Tower |
| Material of Construction | Metal |
| Mounting Hardware | Yes |
| Rack Height | 2U |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.31 x 8.89 x 60.96 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.05 x 3.5 x 24 (in) |
| Physical Dimensions – (WxHxD) (mm) | 433 x 89 x 610 (mm) |
| Physical Weight (kg) | 43.32 |
| Physical Weight (lb) | 95.5 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 58.15 |
| Shipping – Weight (lb) | 128.2 |
| Shipping Dimensions – (WxHxD) (cm) | 59.94 x 33.02 x 89.92 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 23.6 x 13.0 x 35.4 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 599.44 x 330.2 x 899.16 (mm) |
| Environmental | |
| Audible noise at 1m from surface of unit | 58 dBA |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 90 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | -4 – 113 °F (-20 – 45 °C) |
| Compatibility | |
| UPS Models | OL3000RTXL2UHV, OL5KRTHD, OL6KRT, OL6000RT3UPDU, OL6KRT3UHW, OL6KRTHD, OL6KRTHW, OL6KRTMB, OL8000RT3U, OL8000RT3UPDU, OL8KRT3UHW, OL8KRTHW, OL8KRTMB, OL10000RT3U, OL10000RT3UPDU, OL10KRT3HW, OL10KRTHW, OL10KRTMB |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1778 5th Ed. CSA C22.2 No.107.3-05 |
| Warranty | |
| Extended Warranty Option | WEXT5YR-ACC2C |
| Product Warranty | 3 Year Limited Warranty |
| Marca | Cyberpower |
|---|---|
| MPN: | OL6KSTF |
