Panduit MSC2W38T15-L6 pansteel strapping,n316l,ts1335,.4,12

Precio especial $2,471.00 IVA incluido + Envio $150 MXN
Antes $2,866.00
Disponible 4 Pzas
sku: MSC2W38T15-L6
pub
MX0000099871
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo
Logo

MSC2W38T15-L6

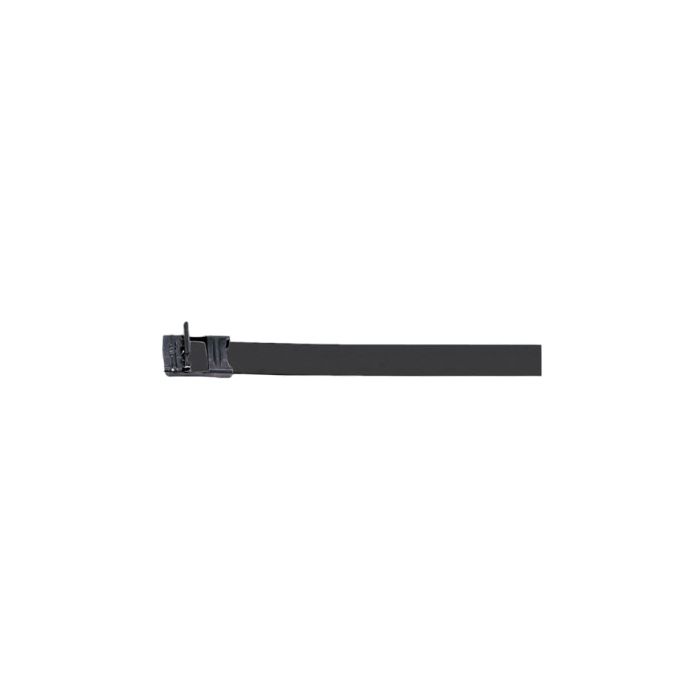

Panduit® Pan-Steel® Nylon 11 Coated Strapping can be cut to meet your many project needs. Built with 316L stainless steel coated with Nylon and a fold-over lock, it maintains a safe, secure connection despite severe weather, intense UV rays, high vibration and galvanic corrosion. Perfect for some of the most challenging industries, including sign and signal, oil and gas and industrial. Low-profile buckle, 11.8'L (300mm), 0.4'W (10mm), Tensile strength: 1335, Bundles up to 2.0' (51mm), PK50

Especificaciones

Application Corrosive Environment
Product Type Strapping
Environment Indoor and Outdoor
For Use With BT2HT
Maximum Bundle Diameter (In.) 2
Maximum Bundle Diameter (mm) 51
Maximum Installation Temperature (°C) 140
Maximum Installation Temperature (°F) 284
Minimum Installation Temperature (°C) -40
Minimum Installation Temperature (°F) -40
Maximum Operating Temperature (°C) 140
Maximum Operating Temperature (°F) 285
Minimum Operating Temperature (°C) -40
Minimum Operating Temperature (°F) -40
Minimum Loop Tensile Strength (N) 1335
Minimum Loop Tensile Strength (lb) 300
Overall Length (In.) 11.8
Overall Length (mm) 300
Overall Width (In.) 0.38
Overall Width (mm) 9.5
Standards Met RoHS Compliant,UL E56854, UV Resistant
Sub Brand Pan-Steel®
Strap Breaking Strength (N) 2229
Strap Breaking Strength (lb) 502
Overall Thickness (In.) 0.02
Overall Thickness (mm) 0.4
Part Features Fold over design provides high-retained tension in mechanical fastening and cable bundling applications; After tensioning, cut end is locked inside low profile buckle – no sharp edges; Can be used in a wide range of applications; Smooth surfaces and rounded edges assures cable protection and worker safety.

Detalles del empaque

Std. Pkg. Qty. 50
Std. Pkg. Volume (cf) 0.0835
Std. Ctn. Qty. 250
Std. Ctn. Volume (cf) 0.4174
Más información
MarcaPanduit
MPN:MSC2W38T15-L6
