Dahua DH-SD49218DBN-HC sd49218db-hc - camara ptz domo de 2 megapixeles/ 18x zoom optico/ ip66/ starlight/ wdr real 120db/ ir 100m/ hlc/ 3dnr/ 12v 3a/
Precio especial $3,585.00 IVA incluido + Envio $150 MXN
Antes $4,159.00
Disponible 517 Pzas
Antes $4,159.00
Disponible 517 Pzas
sku: DH-SD49218DBN-HC
pub
MX0000099829
SD49218DB-HC

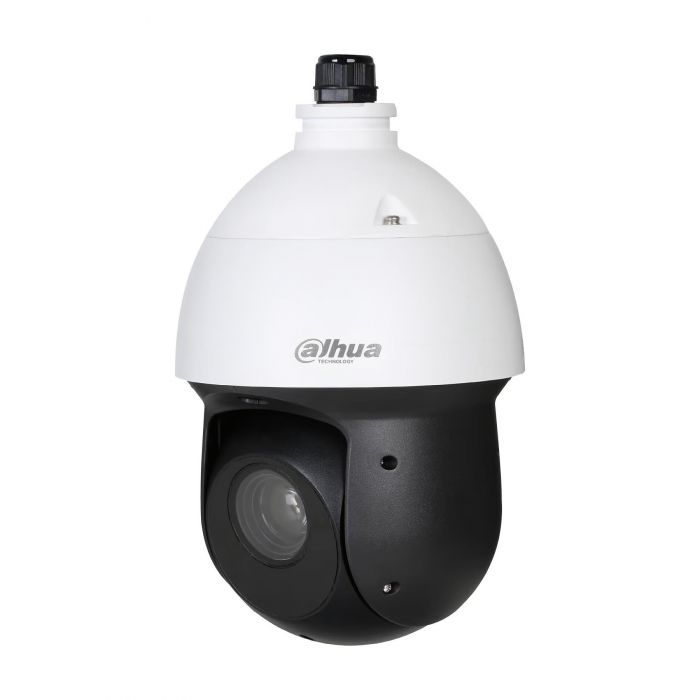

2MP 18x Starlight IR HDCVI PTZ Camera
> 1/2.8' 2Megapixel STARVIS™ CMOS.
> Powerful 18x optical zoom.
> Starlight technology.
> 120 dB true WDR, 3D NR.
> Max. 25/30 fps@1080p, 25/30/50/60 fps@720p.
> IR distance up to 100 m.
> IP66.
| Camera | ||||
| Image Sensor | 1/2.8' CMOS | |||
| Pixel | 2 MP | |||
| Max. Resolution | 1920 (H) × 1080 (V) | |||
| ROM | 128 MB | |||
| RAM | 256 MB | |||
| Electronic Shutter Speed | 1/3 s–1/30,000 s | |||
| Scanning System | Progressive | |||
| Min. Illumination | 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (illuminator) |
|||
| Illumination Distance | 100 m (328.08 ft) (IR) | |||
| Illuminator On/Off Control | Zoom Prio; manual | |||
| Illuminator Number | 6 (IR) | |||
| Lens | ||||
| Focal Length | 5 mm–90 mm | |||
| Max. Aperture | F1.6–F2.9 | |||
| Field of View | H: 60.6°–3.8°; V: 34.1°–2.1°; D: 69.4°–4.4° | |||
| Optical Zoom | 18x | |||
| Focus Control | Auto; semi-auto; manual | |||
| Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) | |||
| Iris Control | Auto; manual | |||
| DORI Distance | Detect | Observe | Recognize | Identify |
| 1241.4 m (4072.77 ft) | 490.3 m (1608.74 ft) | 248.3 m (814.55 ft) | 124.1 m (407.28 ft) | |
| PTZ | ||||
| Pan/Tilt Range | Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180° |
|||
| Manual Control Speed | Pan: 0.1°–200°/s; Tilt: 0.1°–120°/s |
|||
| Preset Speed | Pan: 0.1°–240°/s; Tilt: 0.1°–200°/s |
|||
| Preset | 300 | |||
| Tour | 8 (up to 32 presets per tour) | |||
| Pattern | 5 | |||
| Scan | 5 | |||
| Power-off Memory | Yes | |||
| Idle Motion | Pattern; Preset; Scan; Tour | |||
| PTZ Protocol | DH-SD Pelco-P/D (Auto recognition) |
|||
| Video | ||||
| Resolution | 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480) | |||
| Video Frame Rate | 1080p (25/30 fps); 720p (25/30/50/60 fps) | |||
| Day/Night | Yes | |||
| BLC | Yes | |||
| WDR | 120 dB | |||
| HLC | Yes | |||
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp | |||
| Gain Control | Auto; manual | |||
| Noise Reduction | 2D NR; 3D NR | |||
| Defog | Electronic | |||
| Digital Zoom | 16x | |||
| Image Rotation | 180° | |||
| Privacy Masking | Yes | |||
| S/N Ratio | ≥ 50 dB | |||
| Function | ||||
| CVI Product Output Mode | TVI; CVI; CVBS; AHD (CVBS is only used for debugging) | |||
| Certification | ||||
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpart B, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
|||
| Port | ||||
| Analog Output | 1 channel (CVBS/CVI output, BNC) | |||
| RS-485 | 1 (baud rate range: 1200 bps–9600 bps) | |||
| Audio Input | 1 channel (LINE IN, bare wire) | |||
| Alarm Input | 2 (on-off value input: 0–5 VDC) | |||
| Alarm Output | 1 | |||
| Alarm Linkage | Scan; preset; tour; pattern; alarm digital output | |||
| Alarm Event | Alarm input | |||
| Power | ||||
| Power Supply | 12 VDC, 3 A ± 10% | |||
| Power Consumption | Basic: 10 W Max: 22 W (PTZ + illuminator + heater) |
|||
| Environment | ||||
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) | |||
| Operating Humidity | ≤ 95% | |||
| Protection | TVS 6000 V lightning proof; IP66; surge protection; voltage transient protection | |||
| Structure | ||||
| Product Dimensions | 269.9 mm × Φ160.0 mm (10.62' × Φ6.30') | |||
| Net Weight | 3.0 kg (6.61 lb) | |||
| Gross Weight | 4.2 kg (9.26 lb) |
| Marca | Dahua |
|---|---|
| MPN: | DH-SD49218DBN-HC |
