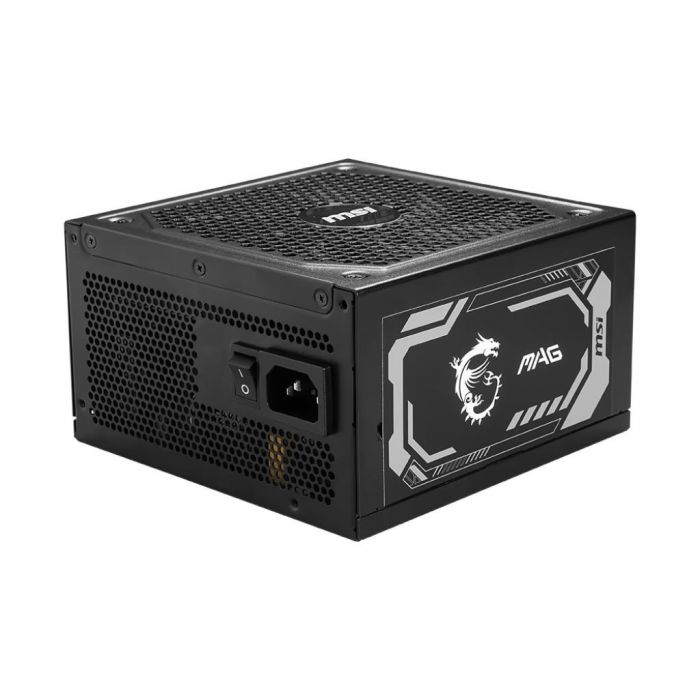

Msi MAG A1250GL PCIE5 fuente de poder 1250w/80 plus gold /negro/atx/modular
Precio especial $4,915.00 IVA incluido + Envio $150 MXN
Antes $5,701.00
Disponible 0 Pzas
Antes $5,701.00
Disponible 0 Pzas
Agotado
pub
MX0000099794
MSI MAG A1250GL PCIE5 1250W 80 PLUS Gold Modular Power Supply
MAG A1250GL PCIE5
| Total Connectors |
1x 24-Pin ATX Motherboard
2x 4+4-Pin EPS CPU 1x 16-Pin PCIe (12VHPWR) 4x 6+2-Pin PCIe 12x 15-Pin SATA 4x 4-Pin Peripheral / Molex 1x 4-Pin Floppy |
| Cable Design |
Modular, Sleeved
|
| Total Wattage |
1250 W
|
| Number of +12 V Rails |
1
|
| Efficiency Rating |
80 PLUS Gold
|
| Form Factor |
ATX
|
Connectivity
| Total Connectors |
1x 24-Pin ATX Motherboard
2x 4+4-Pin EPS CPU 1x 16-Pin PCIe (12VHPWR) 4x 6+2-Pin PCIe 12x 15-Pin SATA 4x 4-Pin Peripheral / Molex 1x 4-Pin Floppy |
| Cable Design |
Modular, Sleeved
|
| PCIe Connector Distances |
23.6' / 600 mm
|
| SATA Connector Distances |
25.6' / 650 mm
|
| Peripheral Connector Distances |
25.6' / 650 mm
|
| Floppy Connector Distances |
25.6' / 650 mm
|
| ATX Connector Distance |
23.6' / 600 mm
|
| EPS Connector Distances |
29.5' / 750 mm
|
Electrical
| Total Wattage |
1250 W
|
| Number of +12 V Rails |
1
|
| Combined Power for +12 V |
1249 W
|
| Max Load for +12 V |
104.1 A
|
| Combined Power for +3.3/+5 V |
120 W
|
| Max Load for +3.3 V |
22 A
|
| Max Load for +5 V |
22 A
|
| Max Power for +5 Vsb |
15 W
|
| Max Load for +5 Vsb |
3 A
|
| Max Power for -12 V |
3.6 W
|
| Max Load for -12 V |
0.3 A
|
| Peak Power |
2500 W
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
General
| Efficiency Rating |
80 PLUS Gold
|
| Active Power Factor Correction |
Yes
|
| Efficiency |
87% at 20% Load
90% at 50% Load 87% at 100% Load |
Cooling
| Fan Size |
135 mm
|
| Bearing Type |
Fluid Dynamic Bearings (FDB)
|
Physical
| Form Factor |
ATX
|
| Compliance |
ATX 12 V v3.0
|
| Protection |
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
|
| Dimensions |
5.9 x 3.4 x 5.9' / 150 x 86 x 150 mm
|
Packaging Info
| Package Weight |
7.65 lb
|
| Box Dimensions (LxWxH) |
11.6 x 9.9 x 5.2'
|
| Marca | Msi |
|---|---|
| MPN: | MAG A1250GL PCIE5 |
