Dahua DHI-NKB5200-F - teclado controlador de red hd/ control ptzs, dvrs, nvrs e ipc/ 4 salidas hdmi/ soporta función videowall/ resolución 4k/ onvif/ inalámbrico/ pantalla tactil 10 pulgadas/ wifi/ rs232/rs485/ #proaccesorios
Precio especial $35,934.00 IVA incluido + Envio $150 MXN
Antes $41,683.00
Disponible 4 Pzas
Antes $41,683.00
Disponible 4 Pzas
sku: DHI-NKB5200-F
pub
MX0000099609
NKB5200(-F)

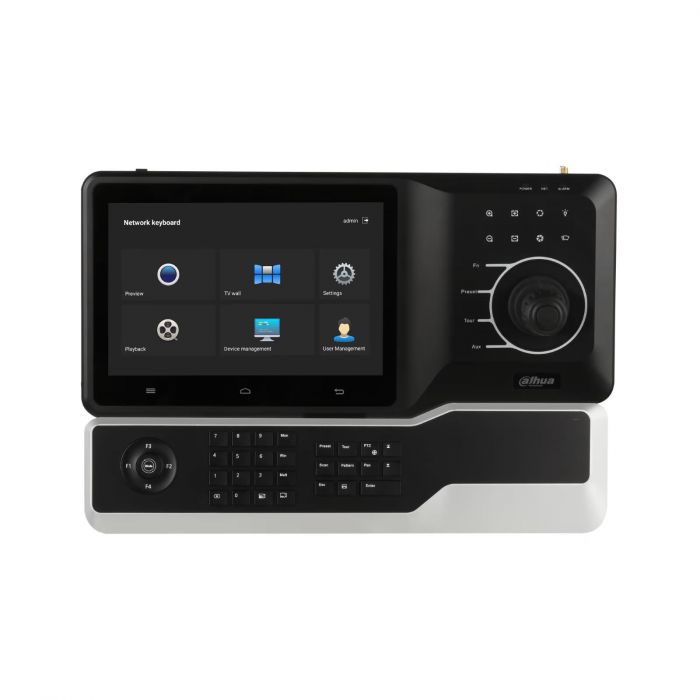

Android Network Control Keyboard
> Touchscreen keyboard with the Android system.
> 10.1-inch capacitive touch screen, support local screen preview
> Four dimensional joystick control of PTZ functions
> Support H.265,H.264 codes decoding ,max 1ch 4K@30 or 4ch 1080P@30
> Compatible with Dahua cameras,storage devices,display control devices,and works with DSS Pro
> Support snapshot and recording to U-disk
> Support video-wall display control and schemes switches
> The buttons on the keyboard can be used to perform operations such as zoom, focus and tour, and can use the iris, wiper and presets.
> NKB5200-F model includes an extension keypad module (F1 cannot be called in platform TV wall mode)
| Model | |
| Model | NKB5200(-F) |
| System | |
| Main Processor | Embedded Processor |
| Operation System | ANDROID 7.1 |
| Display | |
| Video Output | 1-ch VGA or 1-ch HDMI(extension decoding display 720P resolution) |
| Stream Type | H.265, H.264 |
| Decoding Capability | 1CH@4K(30fps)/4CH@1080P(30fps)/9CH@720P(30fps) |
| Joystick | 4D joystick |
| Display split | 1/4/9 splits ,MxN splits |
| Screen | 10.1' TFT LCD touch screen (1280*800) |
| Audio & Alarm | |
| Audio controller | 1 × volume button, 1 × mute button and touchscreen control |
| Loudspeaker | 1 loudspeaker to play audio |
| Audio Input | 1-ch 3.5 mm |
| Audio Output | 1-ch 3.5 mm |
| Speaker | 1 for audio play |
| General | |
| Network Interface | 1×RJ-45 port (10/100/1000M), WLAN |
| USB Interface | 1 USB3.0, 2 USB2.0 |
| RS485 | 1 for ptz control support PELCO |
| Maximum Number of Users | 32 (including 'admin') |
| Max RS485 Addresses (Each User) | 8 |
| Max Number of PTZ (IPC) That Can Be Added over Network (Each User) | 10000 |
| Access Protocol | Dahua Private Protocol |
| Wifi | |
| Wireless frequency range | 2.4Ghz 5Ghz |
| Wireless transmission rate | 150Mbps |
| Environmental | |
| Power Supply | 12 VAC 4A max adapter,POE |
| Power Consumption | < 48 W |
| Working Temperature | -10°C ~+55°C |
| Working Humidity | 10%~95% |
| Dimension | Host: 425mmx194mmx59mm (W×D×H) (exclude joystick) Mini Keypad: 421mmx105mmx26mm (W×D×H) |
| Gross weight | 3.85kg(NKB5200 exclude package) 4.22kg(NKB5200-F exclude package) |
| Net weight | 1.90kg(NKB5200 exclude package) 2.36kg(NKB5200-F exclude package) |
| Marca | Dahua |
|---|---|
| MPN: | DHI-NKB5200-F |
