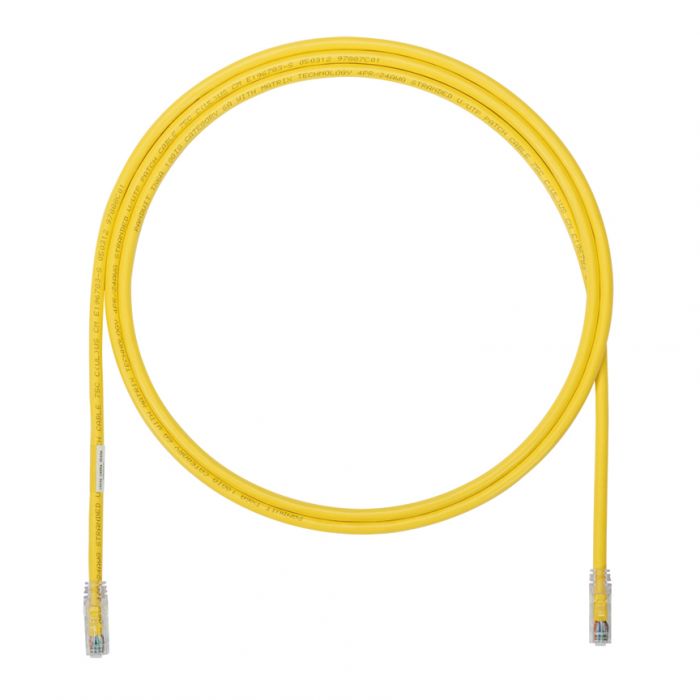

Panduit UTP6A13YL pan-net patch cord
Precio especial $412.00 IVA incluido + Envio $150 MXN
Antes $478.00
Disponible 151 Pzas
Antes $478.00
Disponible 151 Pzas
sku: UTP6A13YL
pub
MX0000099571
UTP6A13YL
Category 6A, 10 Gb/s UTP patch cord with TX6A™ 10Gig™ Modular Plugs on each end, Yellow, 13 ft.
Especificaciones
| Application | (1) 10GBASE-T Ethernet(2) Data center I/O consolidation(3) Data center server virtualization(4) Consolidation of network interconnects(5) Back-bone aggregation(6) Parallel processing and high speed computing |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 6A |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Connector 1 Type | RJ45 8 |
| Connector 2 Type | RJ45 8 |
| Overall Length (ft.) | 13 |
| Sub Brand | Pan-Net® |
| Nominal Cable Outside Diameter (In.) | 0.28 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| Flammability Rating | CM |
| Standards Met | Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA, meets ANSI/TIA-1096-A requirements (formerly FCC Part 68), meets IEC 60603-7, rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4, UL 1863, RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE |
| Plug Type | Meets IEC 60603-7 |
| Part Features | MaTriX Technology, Superior headroom warranty, Flexible cable design, Center de-embedded plug, Patented tangle-free latch |
Detalles del empaque
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0534 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 0.5336 |
| Marca | Panduit |
|---|---|
| MPN: | UTP6A13YL |
