Panduit UTP28X8INGY pan-net patch cord
Precio especial $362.00 IVA incluido + Envio $150 MXN
Antes $420.00
Disponible 9 Pzas
Antes $420.00
Disponible 9 Pzas
sku: UTP28X8INGY
pub
MX0000099552
UTP28X8INGY

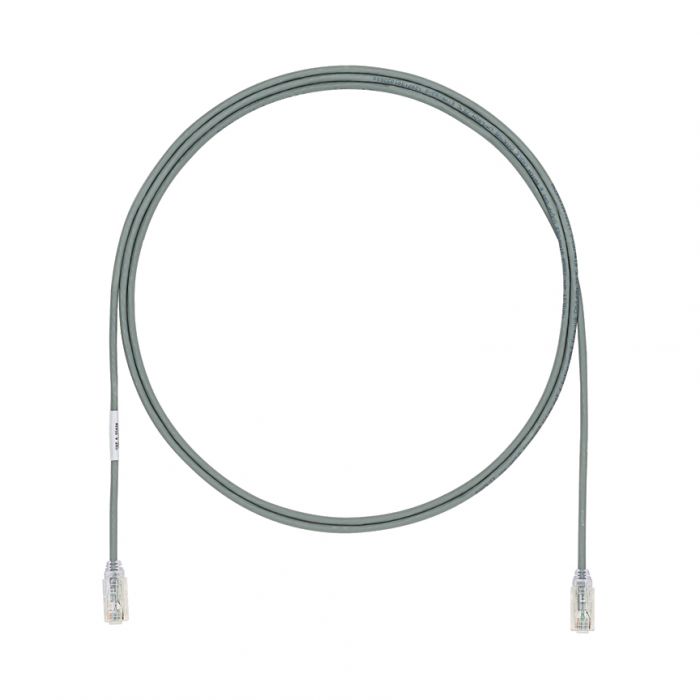

The TX6A-28™ Cat 6A UTP Patch Cord is a 8-Inches, 0.185-inch (4.7mm) diameter, Grey cord constructed of 28 AWG unshielded, twisted pair, solid, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Especificaciones
| Application | (1)10GBASE-T Ethernet(2)Data center I/O Consolidation(3) Data center server virtualization(4)Backbone aggregation(5)Parallel processing and high speed computing |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 28 |
| Conductor Gauge (kcmil) | 0.2 |
| Performance Level | Category 6A |
| Conductor Type | Solid |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 0.66 |
| Sub Brand | Pan-Net® |
| Nominal Cable Outside Diameter (In.) | 0.19 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Standards Met | Meets ANSI/TIA-1096-A (formerly FCC Part 68),Meets IEC 60603-7,Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 Complianttype 4 (24 cables in a bundle) PoE applications |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE |
| Plug Type | TX6A |
| RapidID™ Enabled | Yes |
| Part Features | 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch |
Detalles del empaque
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0155 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 0.1550 |
| Marca | Panduit |
|---|---|
| MPN: | UTP28X8INGY |
