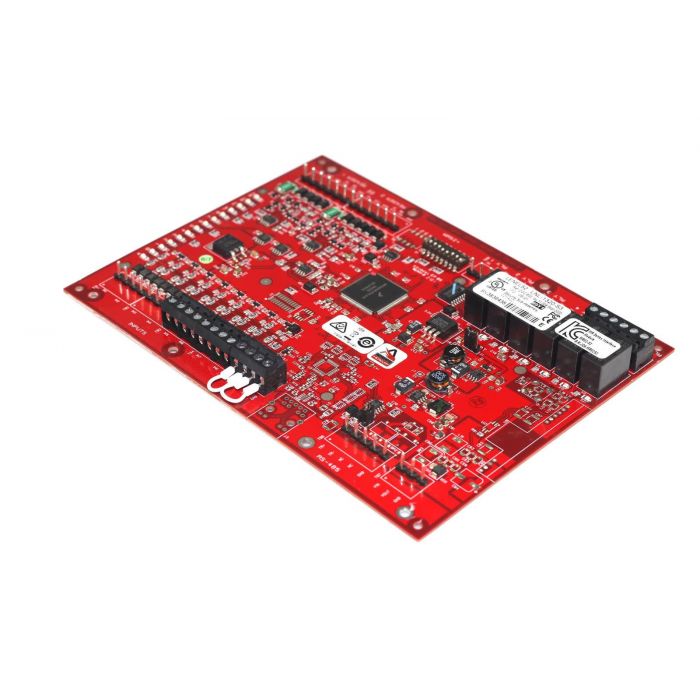

Lenel Unit LNL-1320-S3 módulo de interfaz lector dual lnl-1320 serie 3
Precio especial $15,568.00 IVA incluido + Envio $150 MXN
Antes $18,059.00
Disponible 0 Pzas
Antes $18,059.00
Disponible 0 Pzas
Agotado
pub
MX0000099287
Tech Spec
- 12 or 24 VDC power supply
- Supports Data1/Data0, Clock/Data, Supervised and Unsupervised F2F and OSDP-compatible RS-485 readers and keypads
- Supports Open Supervised Device Protocol (OSDP) readers, including biometric template transfer and Secure Channel encryption
- Downloadable firmware
- Six Form-C 5 A at 28 VDC relay outputs
- Up to 16 different formats
- Issue code support for magnetic and Wiegand formats
- Door contact supervision (open/closed)
- REX push-button monitor
- Strike control output
- Bicolor reader status LED support and 2-wire LED support
- Beeper control
- Dedicated tamper and power failure circuits
- Support for offline reader access mode
- On-board jumpers for termination
- On-board regulator allows 12 VDC reader support from 24 VDC power source
- DIP switch-selectable addressing
- Advanced Encryption Standard (AES) 128-bit algorithm for communications to ISC
- Supports Schlage® Handkey® template download
- Compatible with current and previous versions of OnGuarD
Extended Functionality
- Connect FIPS-201 readers for embedded authentication (when used with LNL-4420 and appropriate HID® and OnGuard software and licenses)
Marca | Otros |
---|---|
MPN: | LNL-1320-S3 |
