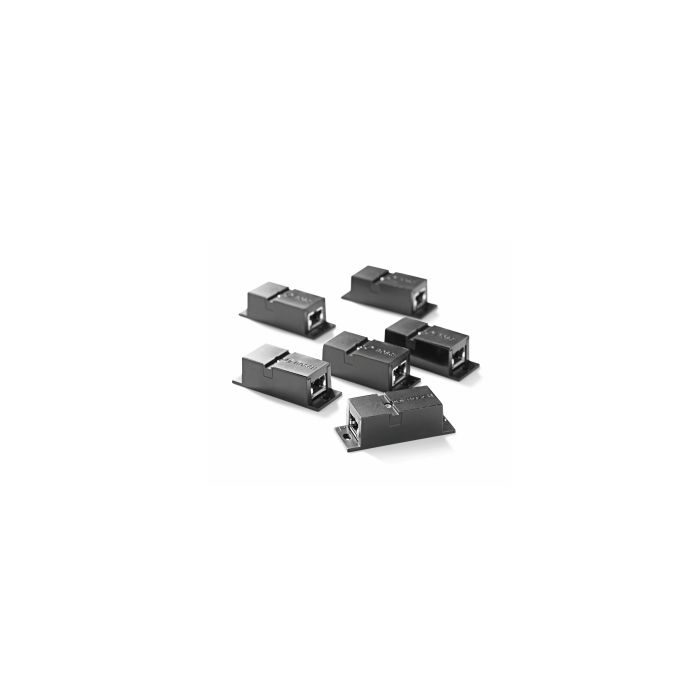

Bosch DCNM-CBCPLR electrical socket coupler 3 a 2
Precio especial $2,957.00 IVA incluido + Envio $150 MXN
Antes $3,430.00
Disponible 0 Pzas
Antes $3,430.00
Disponible 0 Pzas
Agotado
pub
MX0000099271
DCNM-CBCPLR
The DICENTIS cable coupler enables Technicians to
connect DICENTIS cable assemblies (with one another
or with standard CAT-E cable) without the need for
special tools.
The cable coupler can be used to:
Connect two DICENTIS cables so you can easily
increase cable length.
Connect two DICENTIS cables, where one is always
present and ends in a “floor pod” and the other cable
is only connected when it is required (for example, a
rostrum microphone which will not always be used).
The cable coupler can be fixed with screws to the
floor pod.
Interconnect DICENTIS cable with standard CAT5-E
cable and power cable so you can comply with local
regulations or make use of current available
infrastructure.
Interconnect DICENTIS cable with standard CAT5-E
cable and a 48VDC power supply close to the devices.
Create a circuit to power on a system without the
need of a Multimedia device, a PC running the
Meeting application, or Synoptic control.
Makes it is easier to adjust cables to the required
length when installing rental systems. Offers a means
to create cables for the desired length by just
interconnecting standard cables without the need for
special tools.
Makes it easy to connect “temporary” devices (for
example, a rostrum microphone) to the DICENTIS
system. At the location of the rostrum microphone,
the cable coupler is used as the endpoint of the cable
(mounted in a floor pod).
Makes it possible to comply to the most stringent
norms for fixed/installation cable in buildings.
Enables you to use standard CAT-5E and power cable
for the part where the norms have to be met, and
DICENTIS cable in the conference room.
Makes it easy to re-use existing infrastructure/
networks (for example, if a CAT-5E network is already
in place).
Makes it possible to place a 48 VDC power supply
(not part of the Bosch portfolio) close to the
participant devices.
Requirements for the power supply:
nominal output of 48 VDC (ranging from 47 - 49 VDC).
the ripple should be less than 200 mV pk-pk.
maximum output current should not exceed 3.0 A (or
limited to 3.0 A, because DICENTIS cables and
devices have a maximum rating for this current).
Advice
It is strongly advised that the power supply has its
own short circuit protection with a short circuit
output current ranging from 4.3 to 5.0 A.
When the power supply has an automatic restart after
a short circuit, this restart function should have an
interval time of 3 to 4 seconds and should have no
more than 4 restart attempts.
Upon powering off the power supply, the output
should be less than 9 V, 1 mA.
connect DICENTIS cable assemblies (with one another
or with standard CAT-E cable) without the need for
special tools.
The cable coupler can be used to:
Connect two DICENTIS cables so you can easily
increase cable length.
Connect two DICENTIS cables, where one is always
present and ends in a “floor pod” and the other cable
is only connected when it is required (for example, a
rostrum microphone which will not always be used).
The cable coupler can be fixed with screws to the
floor pod.
Interconnect DICENTIS cable with standard CAT5-E
cable and power cable so you can comply with local
regulations or make use of current available
infrastructure.
Interconnect DICENTIS cable with standard CAT5-E
cable and a 48VDC power supply close to the devices.
Create a circuit to power on a system without the
need of a Multimedia device, a PC running the
Meeting application, or Synoptic control.
Makes it is easier to adjust cables to the required
length when installing rental systems. Offers a means
to create cables for the desired length by just
interconnecting standard cables without the need for
special tools.
Makes it easy to connect “temporary” devices (for
example, a rostrum microphone) to the DICENTIS
system. At the location of the rostrum microphone,
the cable coupler is used as the endpoint of the cable
(mounted in a floor pod).
Makes it possible to comply to the most stringent
norms for fixed/installation cable in buildings.
Enables you to use standard CAT-5E and power cable
for the part where the norms have to be met, and
DICENTIS cable in the conference room.
Makes it easy to re-use existing infrastructure/
networks (for example, if a CAT-5E network is already
in place).
Makes it possible to place a 48 VDC power supply
(not part of the Bosch portfolio) close to the
participant devices.
Requirements for the power supply:
nominal output of 48 VDC (ranging from 47 - 49 VDC).
the ripple should be less than 200 mV pk-pk.
maximum output current should not exceed 3.0 A (or
limited to 3.0 A, because DICENTIS cables and
devices have a maximum rating for this current).
Advice
It is strongly advised that the power supply has its
own short circuit protection with a short circuit
output current ranging from 4.3 to 5.0 A.
When the power supply has an automatic restart after
a short circuit, this restart function should have an
interval time of 3 to 4 seconds and should have no
more than 4 restart attempts.
Upon powering off the power supply, the output
should be less than 9 V, 1 mA.
Technical Information
| Technical details | |
|---|---|
| Voltage | 48 V |
| Sockets quantity | 2 |
| Number of poles | 2 |
| Current | 3 A |
| Product colour | Black |
| Weight & dimensions | |
| Width | 3.03' (77 mm) |
| Height | 0.906' (23 mm) |
| Depth | 1.14' (29 mm) |
| Marca | Bosch |
|---|---|
| MPN: | DCNM-CBCPLR |
